UNDERDRIVE Planetary Gear: Components: Illustration

WARNING: This page is about a different variant/trim than selected.

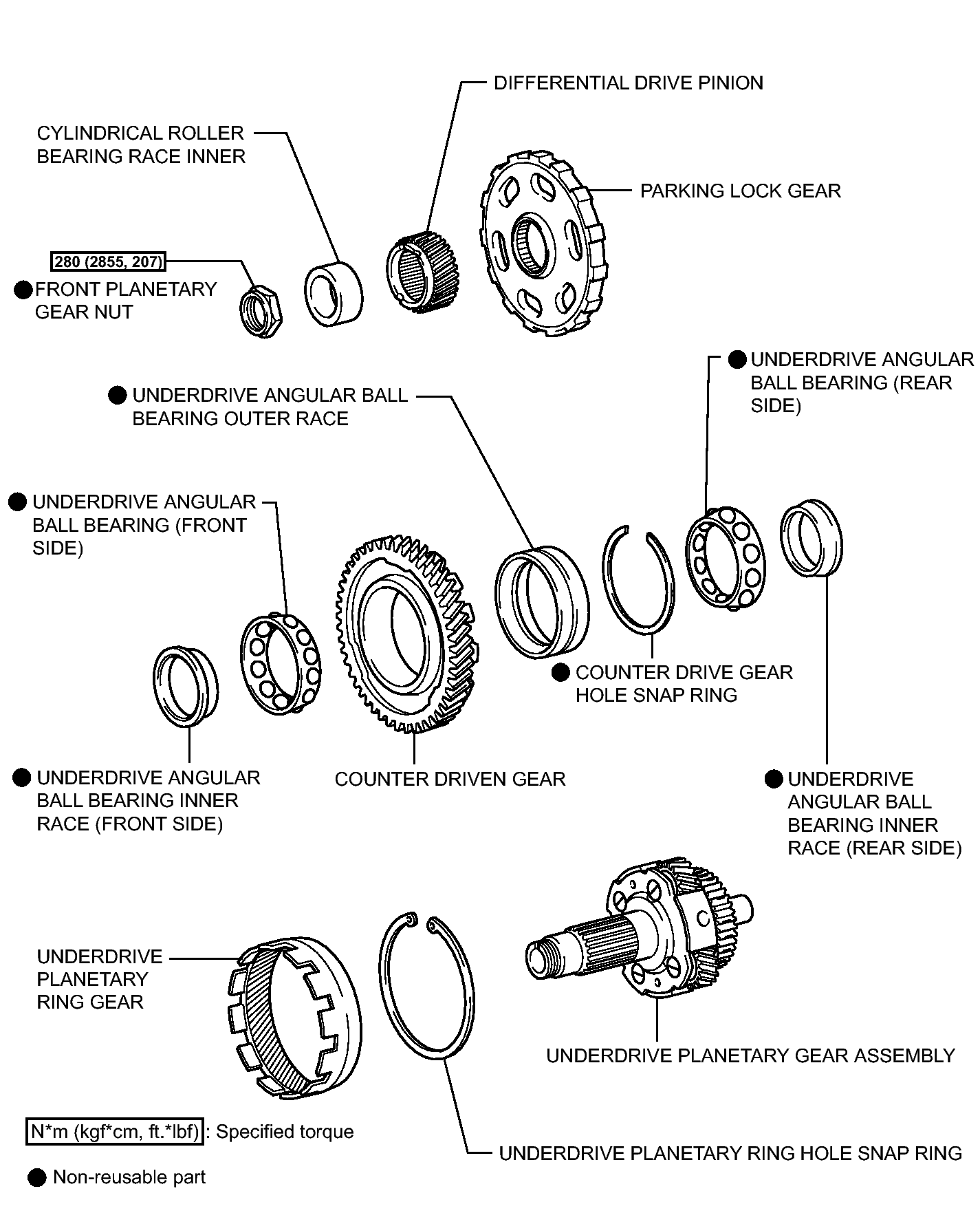

Fig 1: Identifying Underdrive Planetary Gear Replacement Components With Torque Specifications
GTY132385Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
