UNDERDRIVE Clutch: Components: Illustration

WARNING: This page is about a different variant/trim than selected.

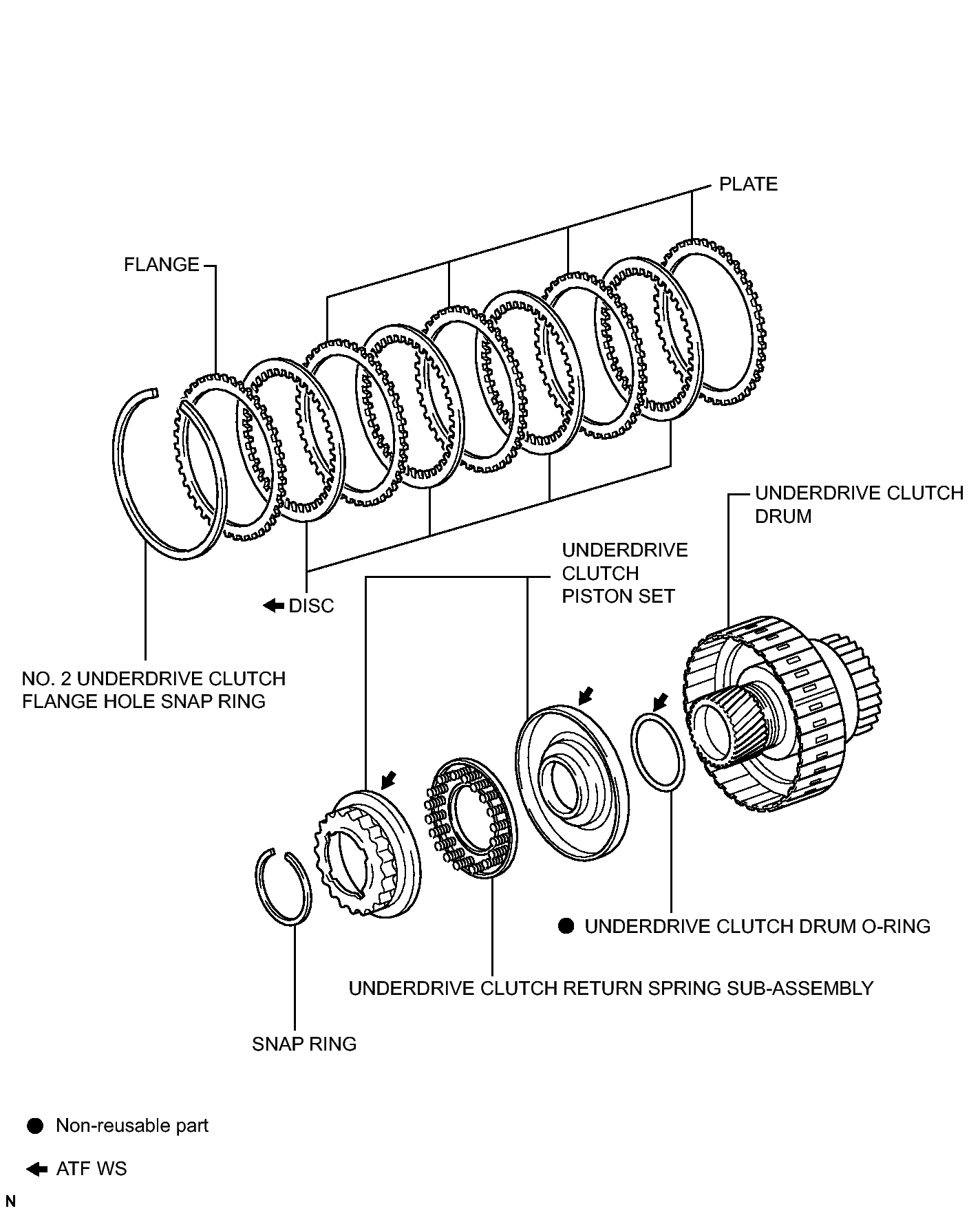

Fig 1: Identifying Underdrive Clutch Replacement Components Expansion View
GTY201192Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
