Section 25 (Automatic Transmission (U151E) (Service Information))
>>
Transmission Wire
>>
Components
>>
Illustration
Transmission Wire: Components: Illustration
WARNING:
This page is about a different variant/trim than selected.

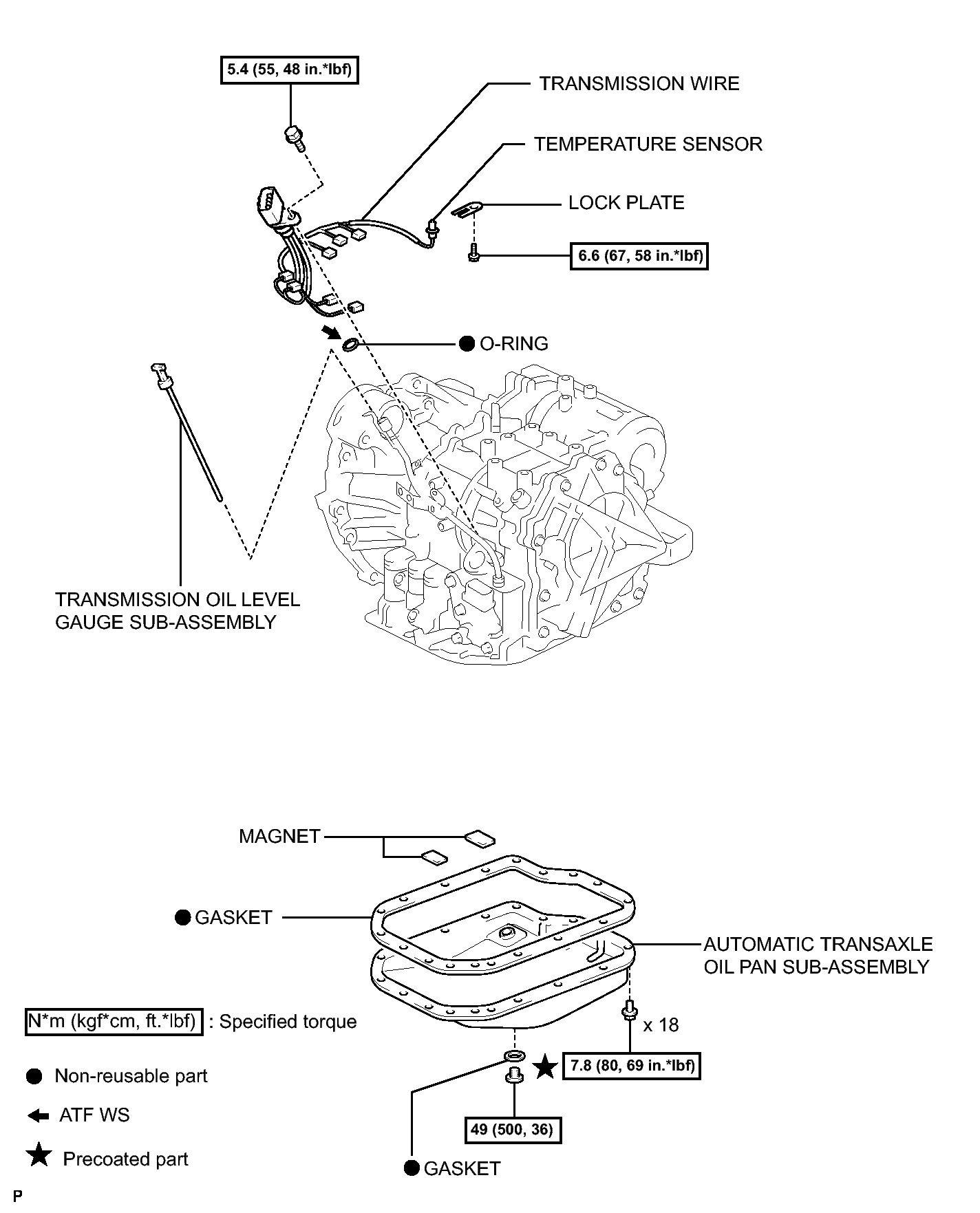

Fig 1: Identifying Transmission Wire Replacement Components With Torque Specifications (1 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 1: Identifying Transmission Wire Replacement Components With Torque Specifications (2 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 1: Identifying Transmission Wire Replacement Components With Torque Specifications (3 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
