Speed Sensor: Components: Illustration

WARNING: This page is about a different variant/trim than selected.

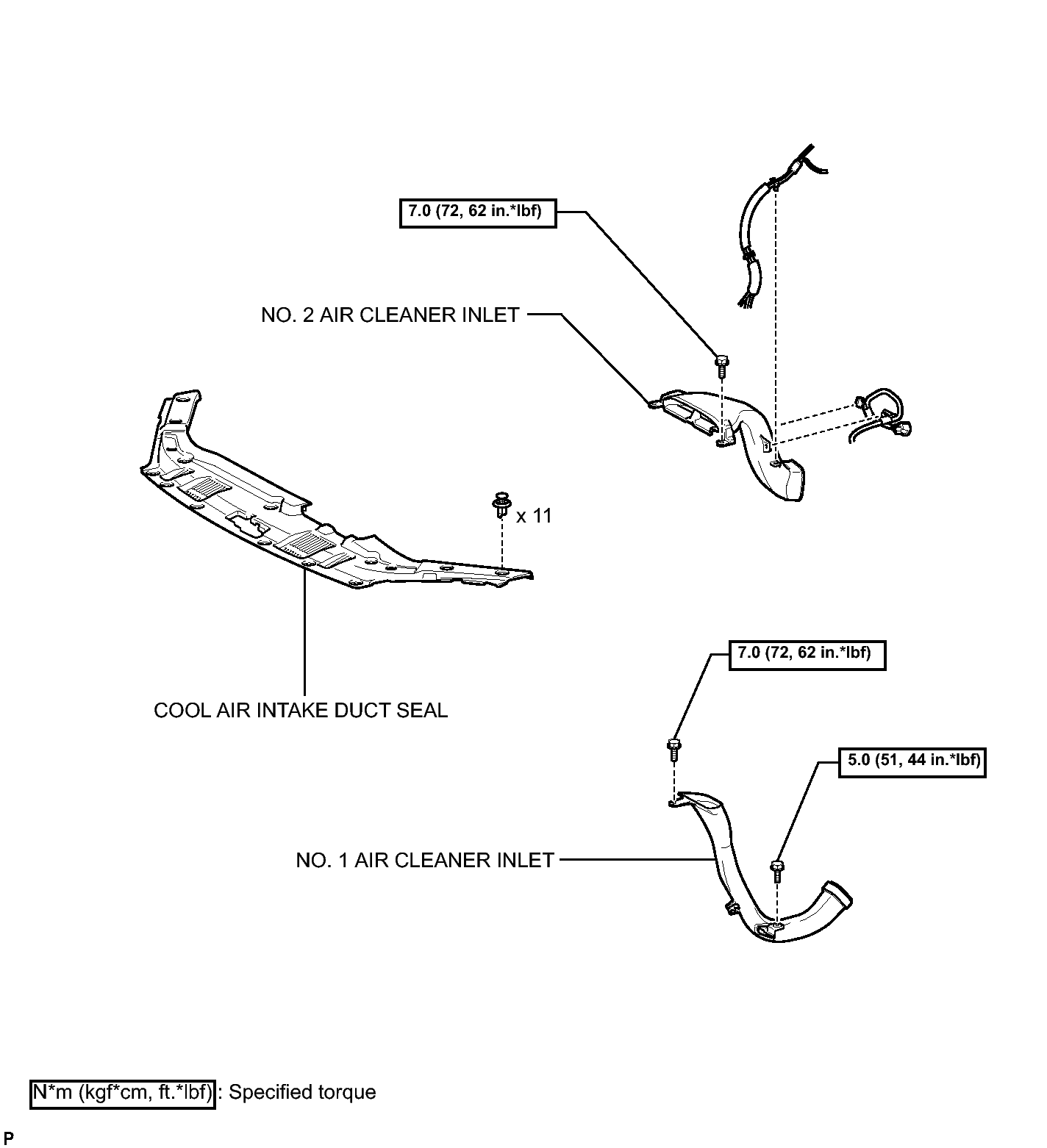

Fig 1: Identifying Speed Sensor Replacement Components With Torque Specifications (1 Of 2)
GTY303491Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

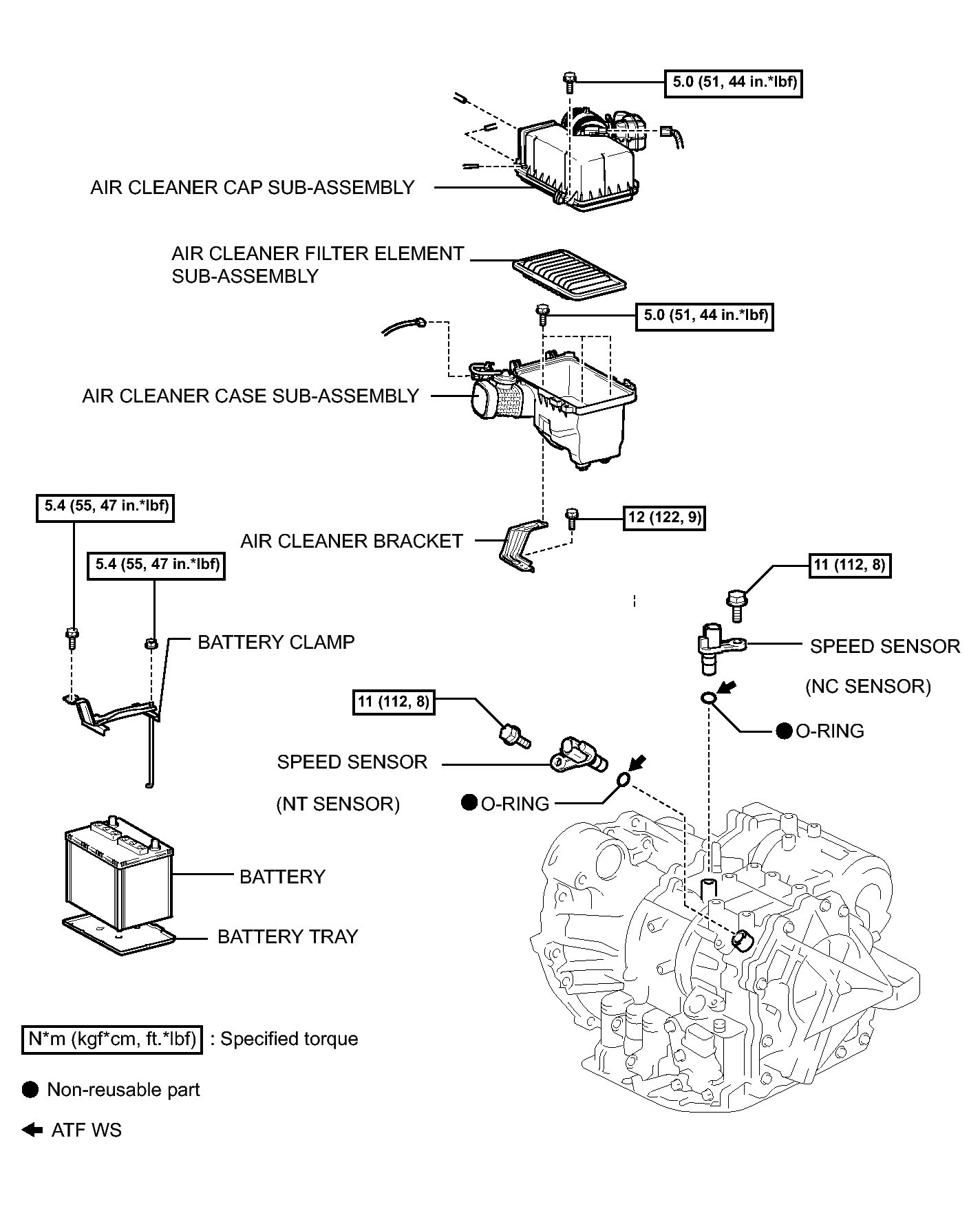

Fig 1: Identifying Speed Sensor Replacement Components With Torque Specifications (2 Of 2)
GTY204664Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
