Forward Clutch: Components: Illustration

WARNING: This page is about a different variant/trim than selected.

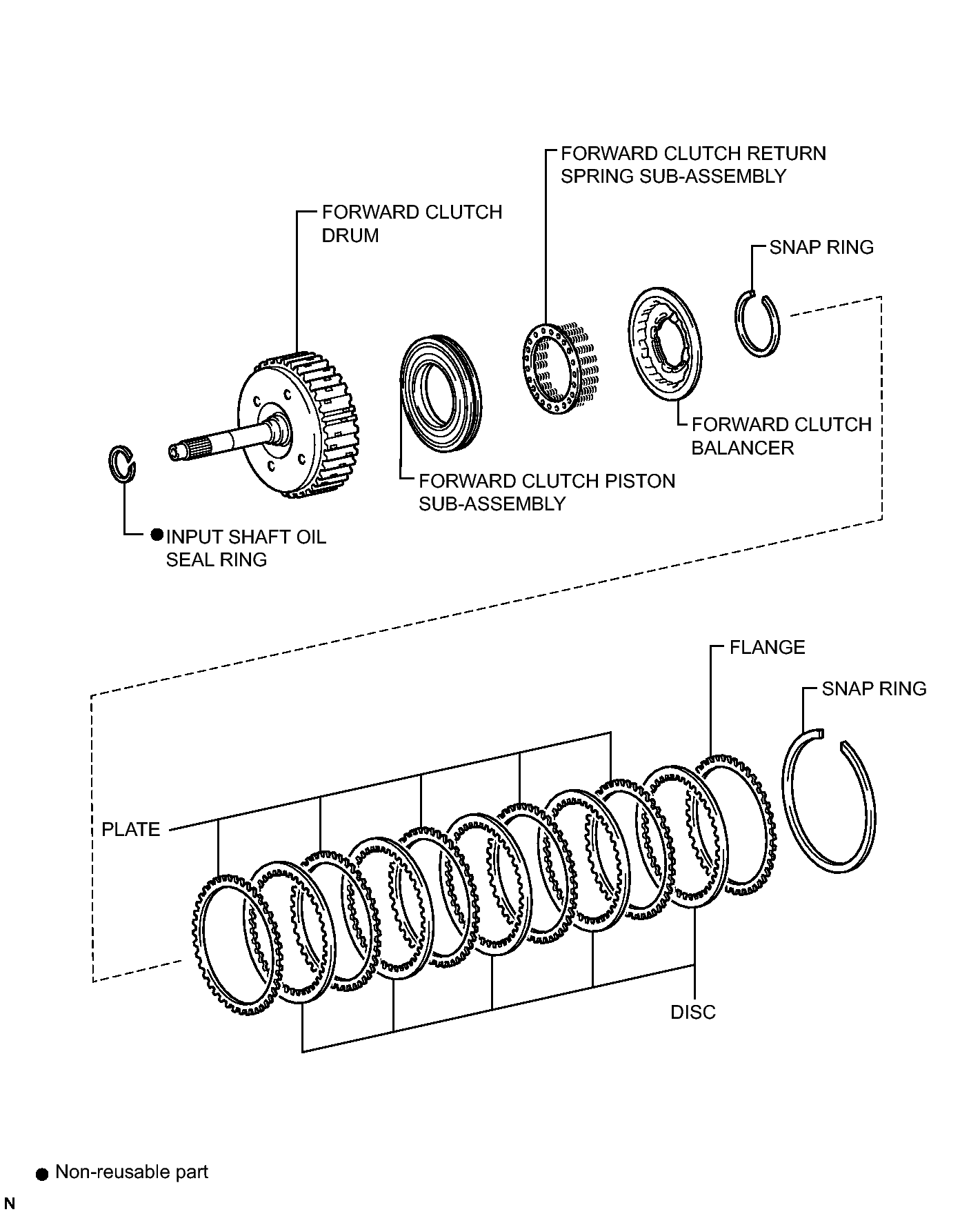

Fig 1: Identifying Forward Clutch Replacement Components
GTY184424Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
