Automatic Transaxle Assembly: Components: Illustration

WARNING: This page is about a different variant/trim than selected.

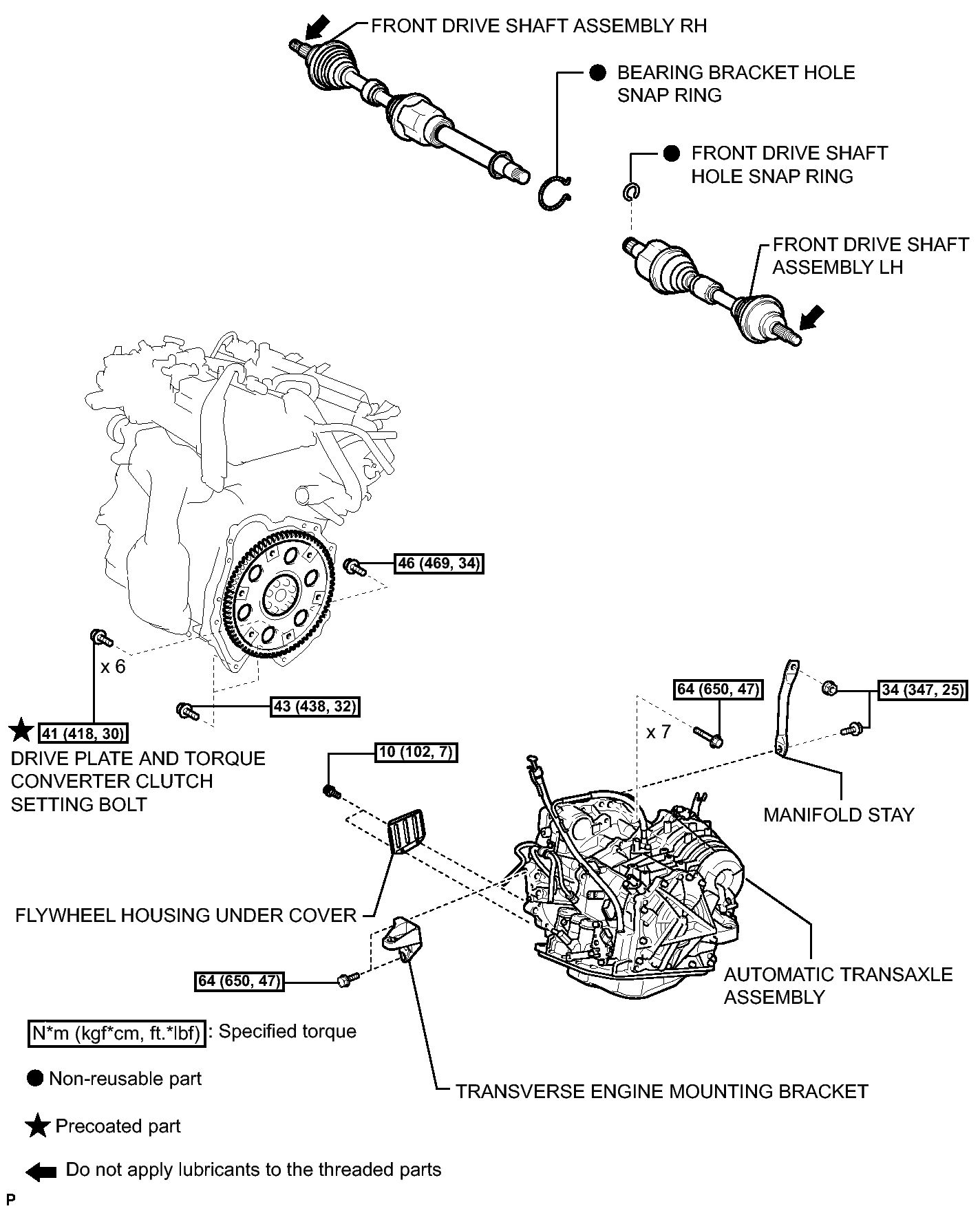

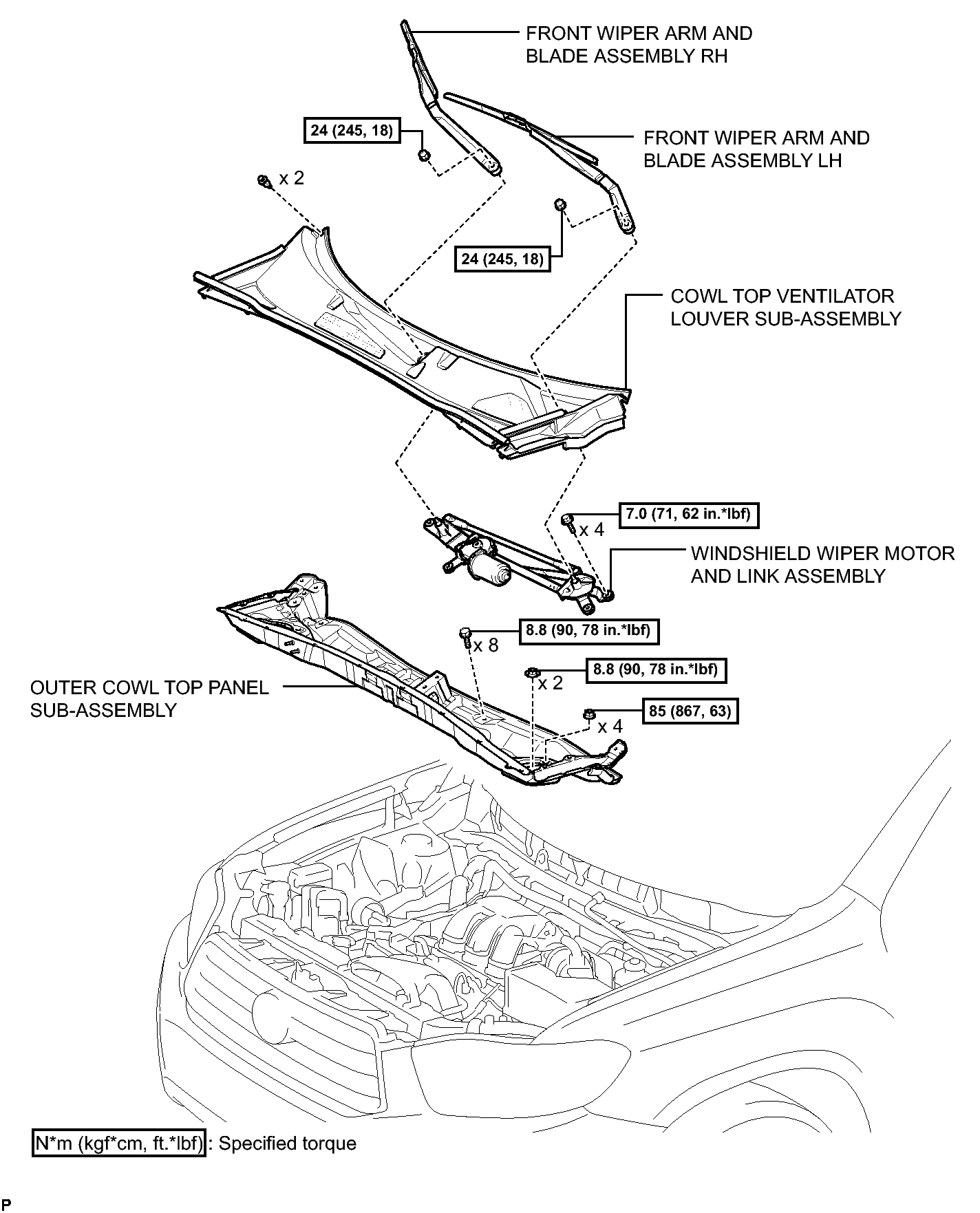

Fig 1: Identifying Automatic Transaxle Assembly Replacement Components With Torque Specifications (1 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

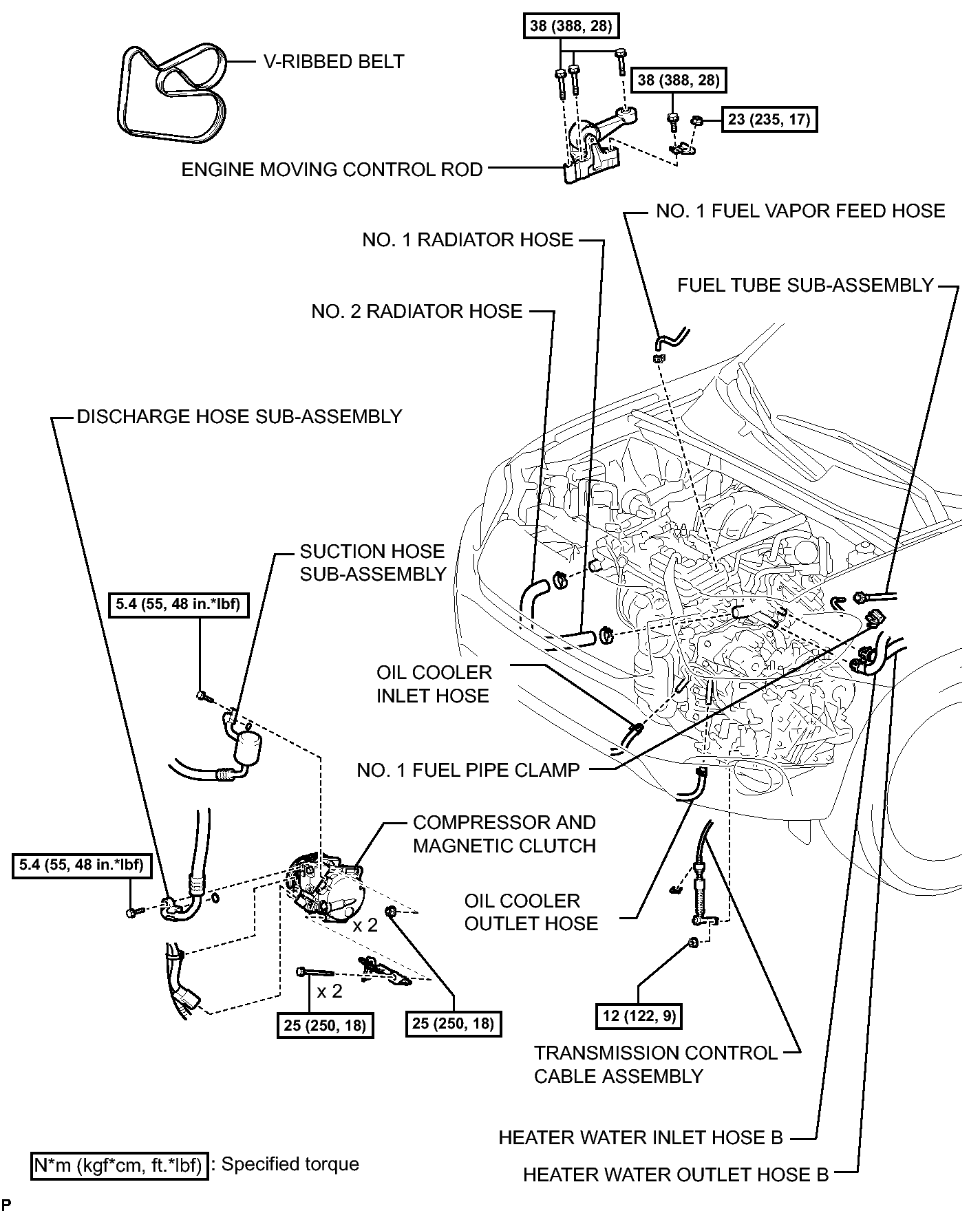

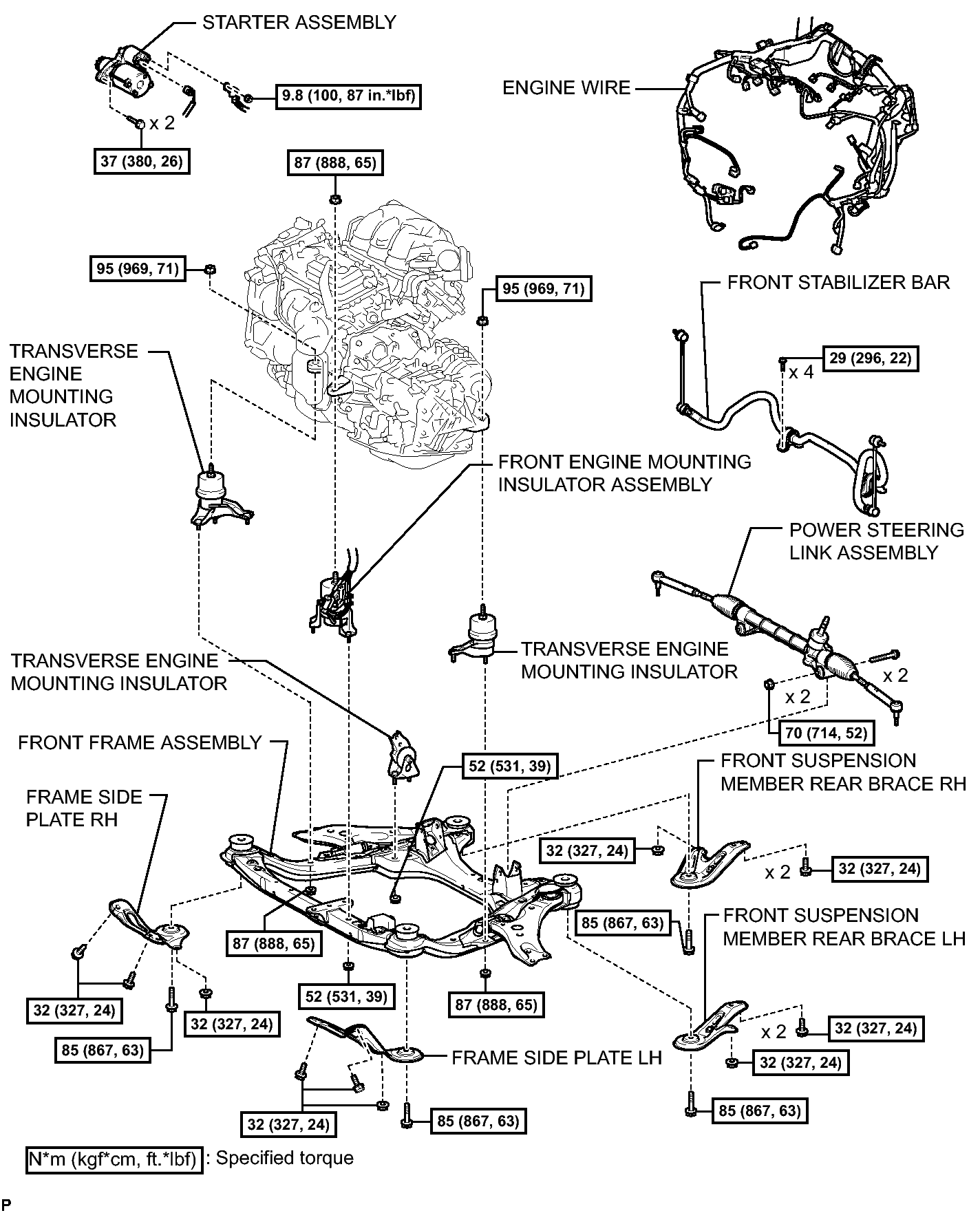

Fig 1: Identifying Automatic Transaxle Assembly Replacement Components With Torque Specifications (2 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

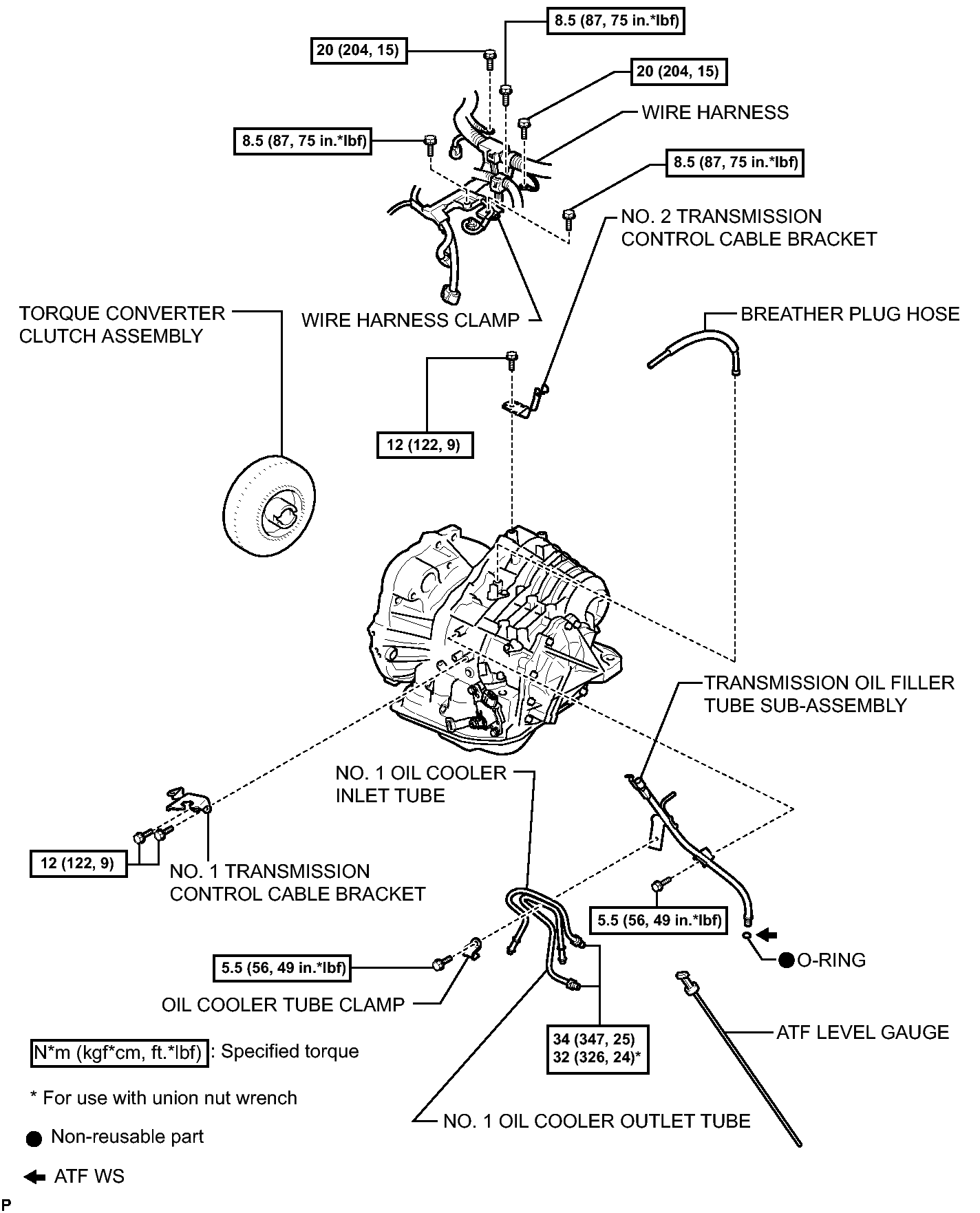

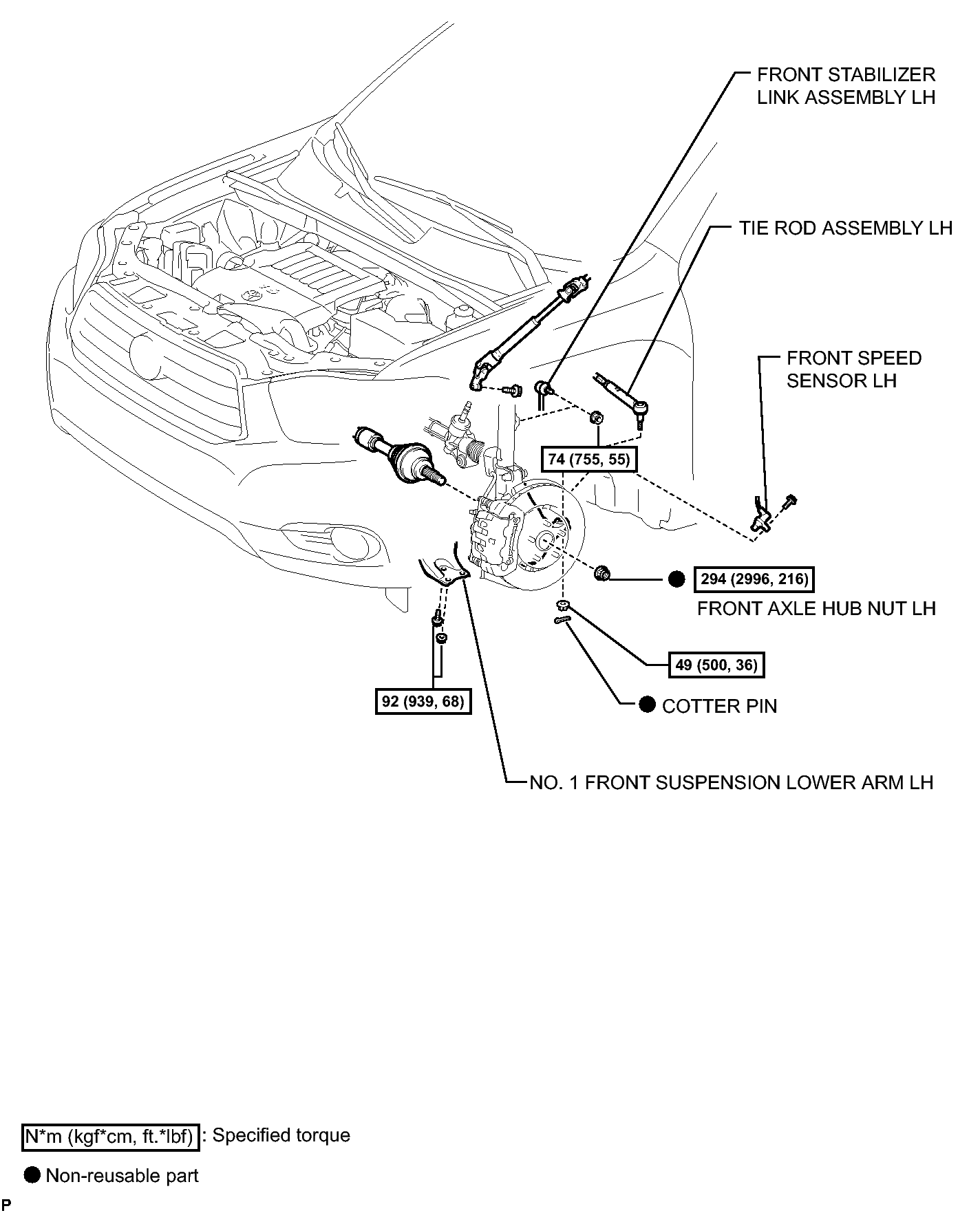

Fig 1: Identifying Automatic Transaxle Assembly Replacement Components With Torque Specifications (3 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

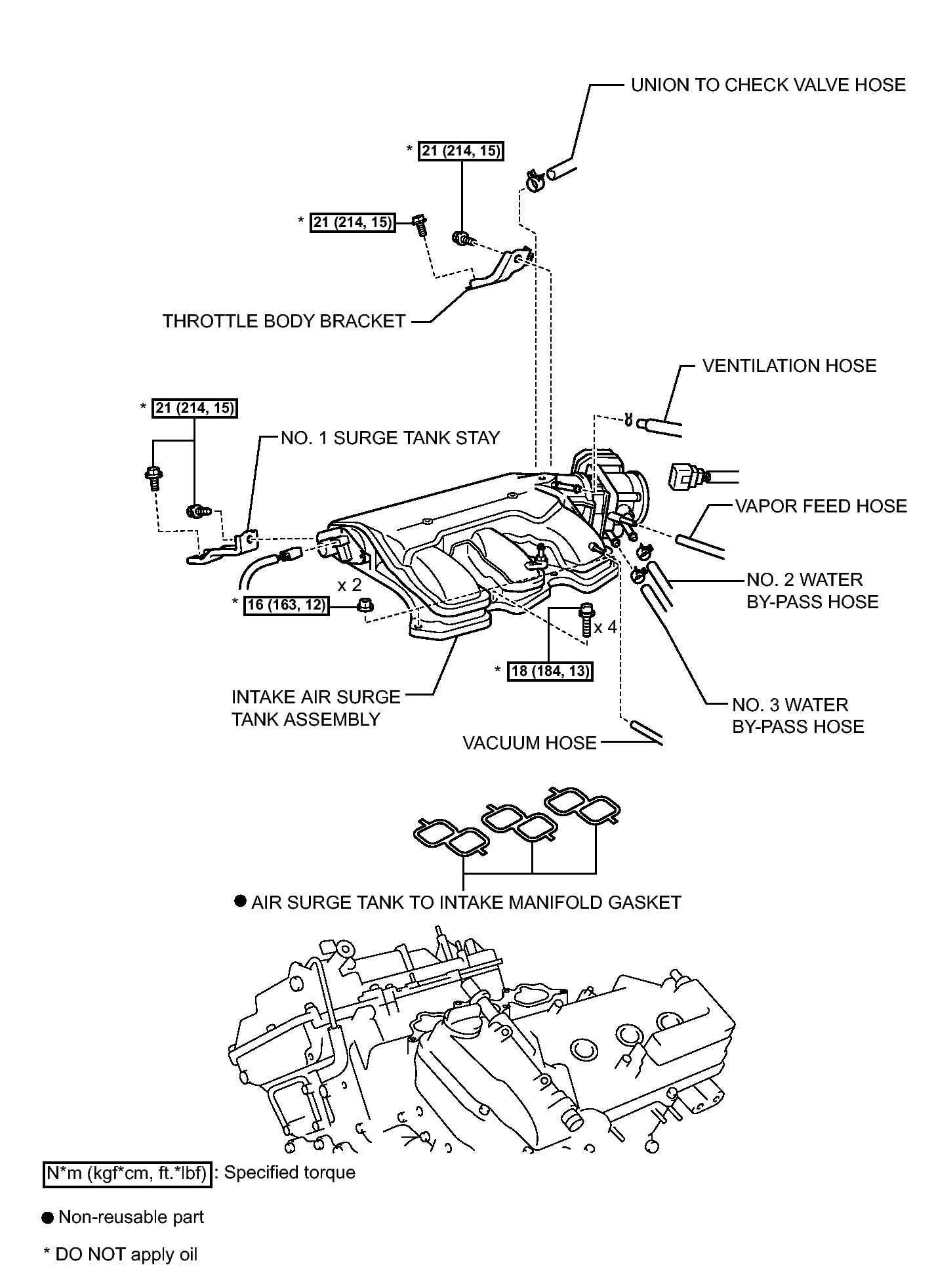

Fig 1: Identifying Automatic Transaxle Assembly Replacement Components With Torque Specifications (4 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

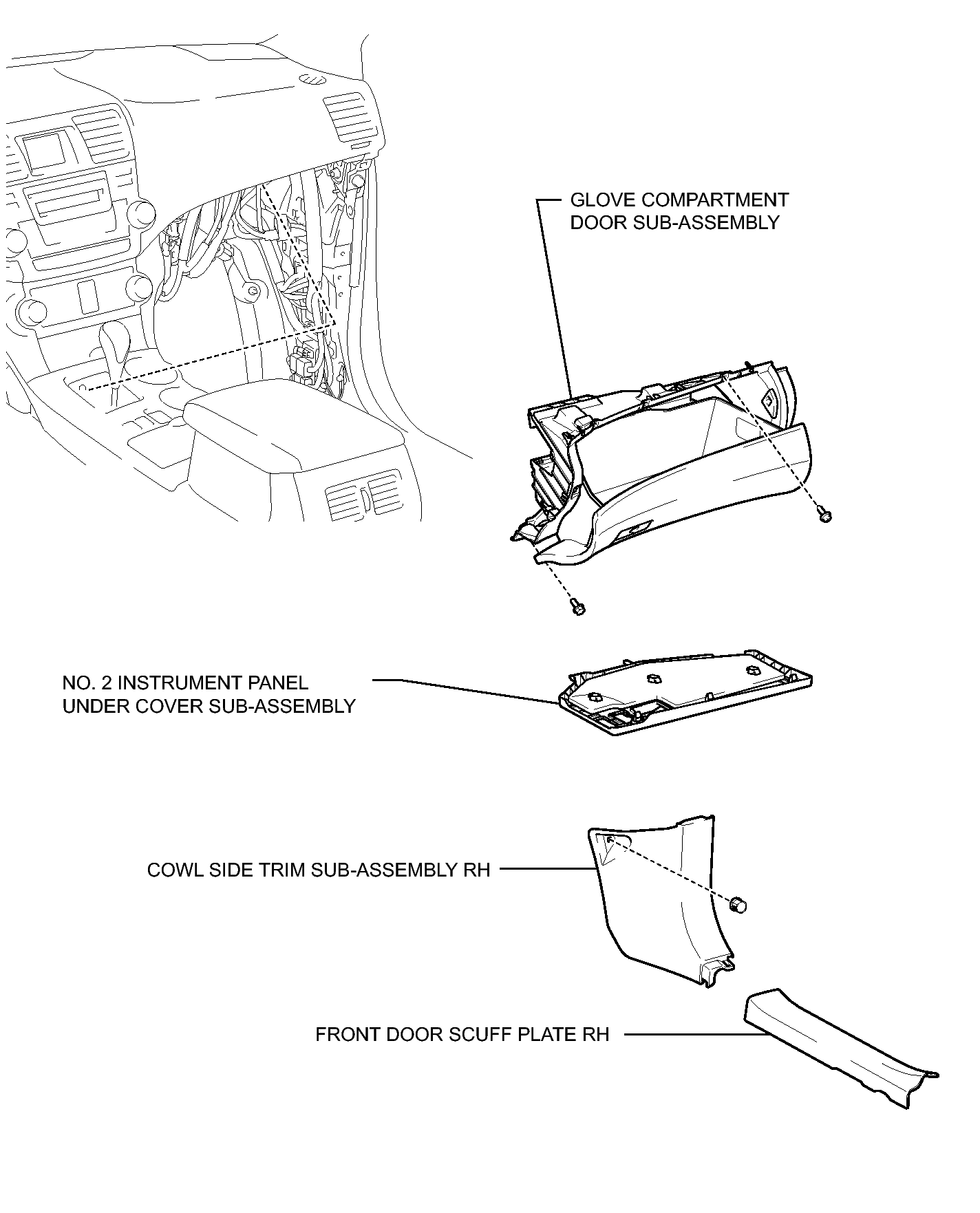

Fig 1: Identifying Automatic Transaxle Assembly Replacement Components With Torque Specifications (5 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

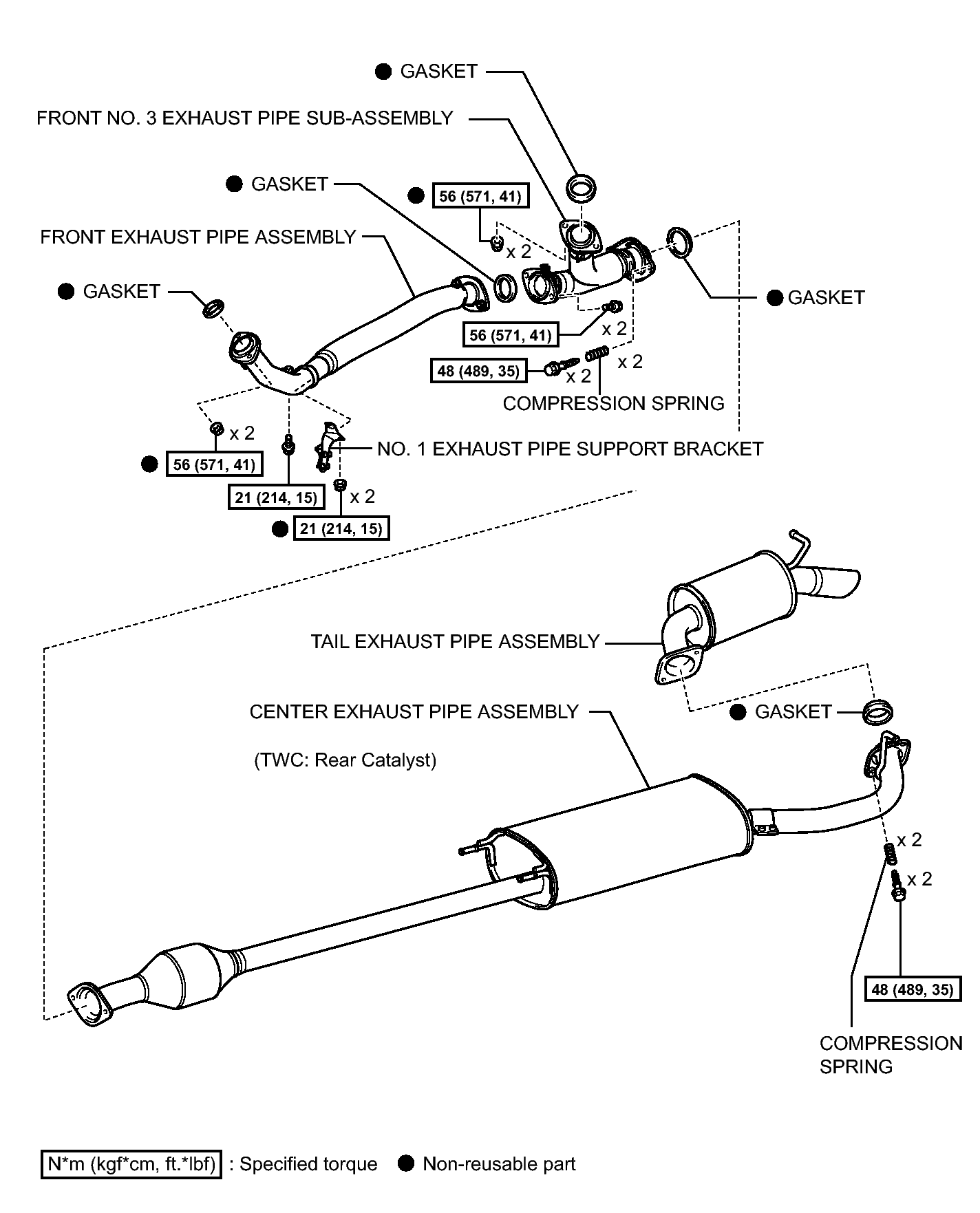

Fig 1: Identifying Automatic Transaxle Assembly Replacement Components With Torque Specifications (6 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

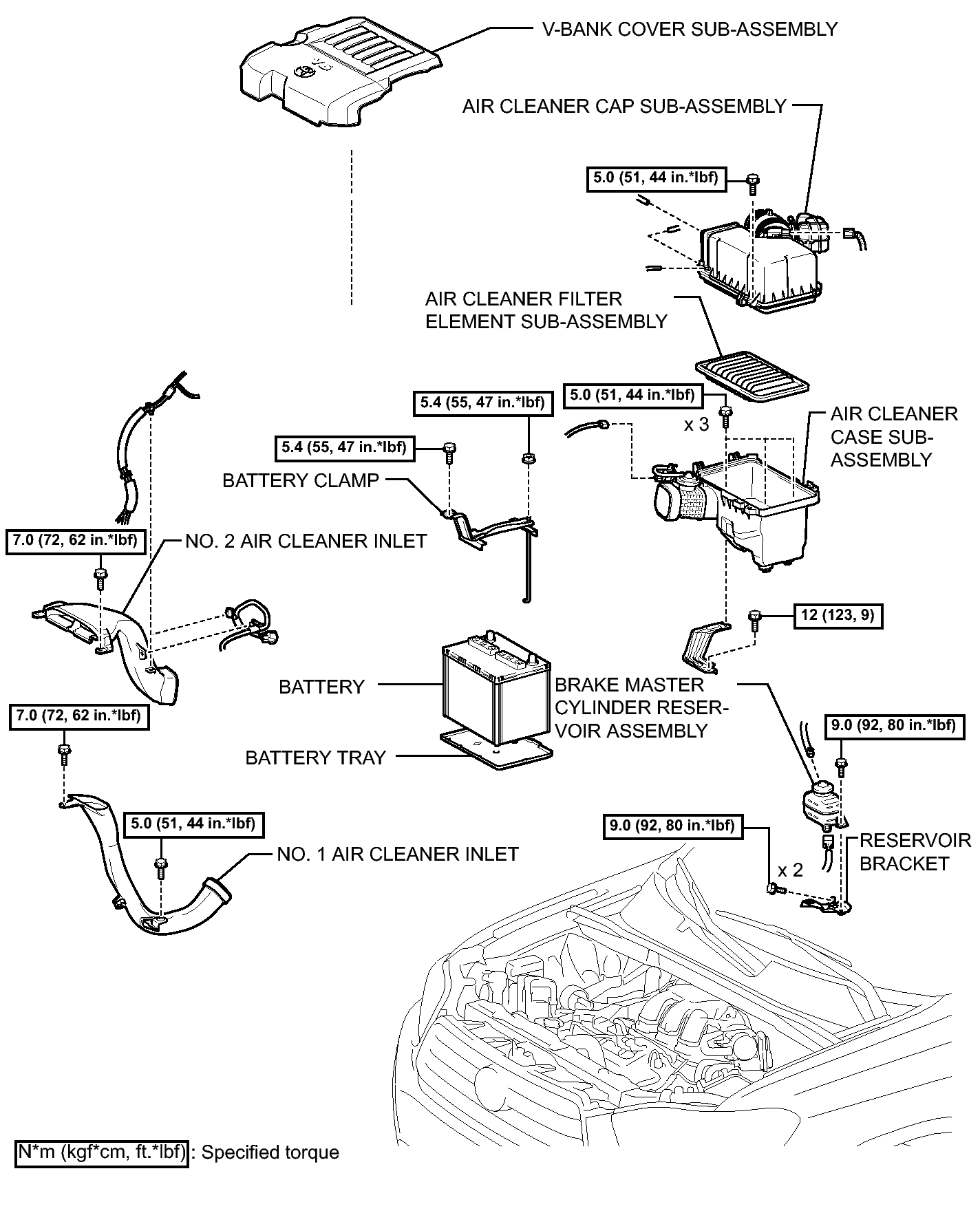

Fig 1: Identifying Automatic Transaxle Assembly Replacement Components With Torque Specifications (7 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

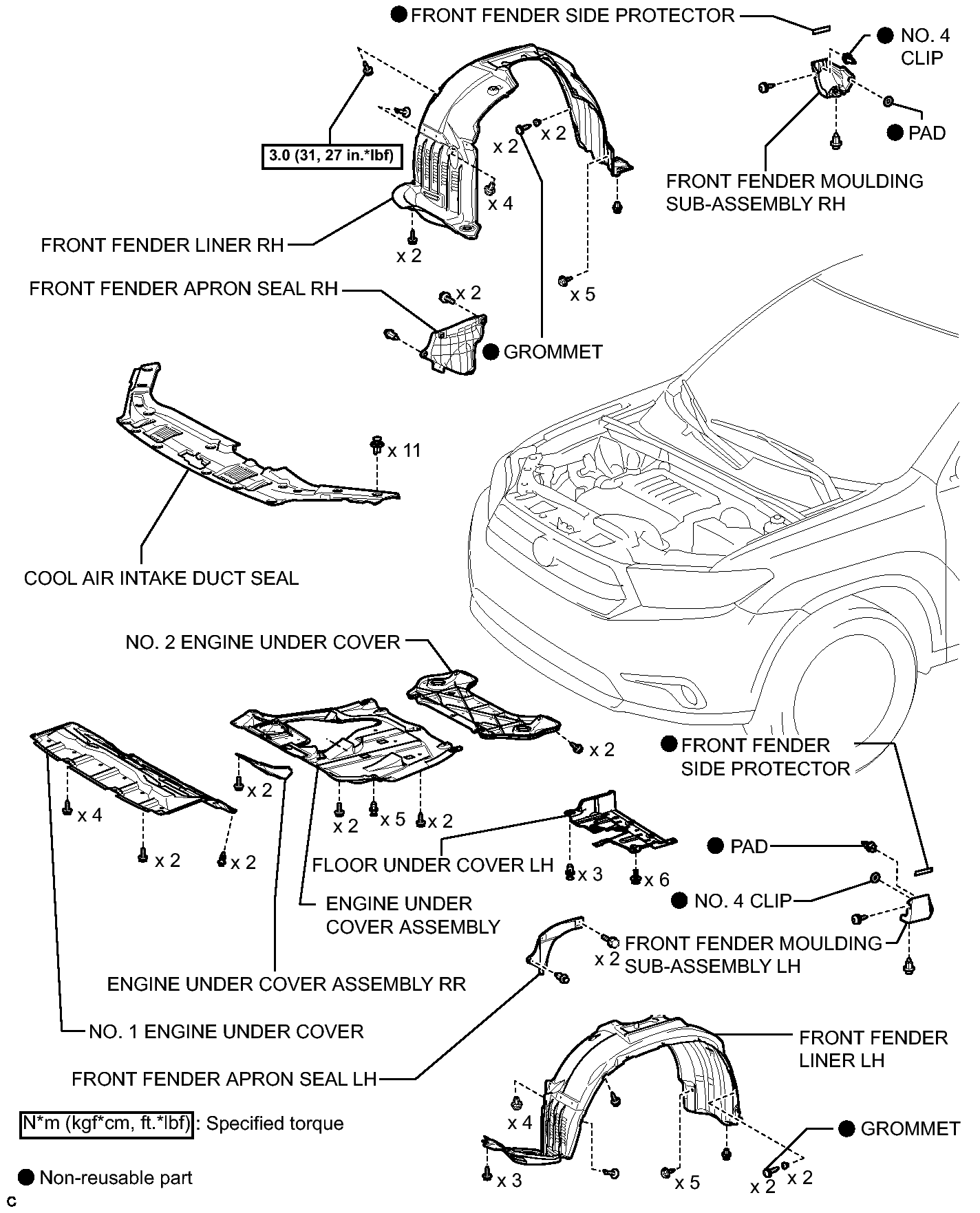

Fig 1: Identifying Automatic Transaxle Assembly Replacement Components With Torque Specifications (8 Of 11)

Fig 1: Identifying Automatic Transaxle Assembly Replacement Components With Torque Specifications (9 Of 11)

Fig 1: Identifying Automatic Transaxle Assembly Replacement Components With Torque Specifications (10 Of 11)

Fig 1: Identifying Automatic Transaxle Assembly Replacement Components With Torque Specifications (11 Of 11)
