Terminals Of ECM

Fig 1: Identifying ECM Connector Terminal

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

The standard voltage between each pair of ECM terminals is shown in the table below. The appropriate conditions for checking each pair of terminals are also indicated. The result of checks should be compared with the standard voltage for that pair of terminals, displayed in the Specified Condition column. The illustration above can be used as a reference to identify the ECM terminal locations.

HINT:

*1: The ECM terminal voltage is constant regardless of the output voltage shown on the Techstream.

1. WAVEFORM 1
   Fig 2: Identifying Waveform 1

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   CAMSHAFT TIMING OIL CONTROL VALVE SIGNAL



   Terminal No. (Symbol)	Tool Setting	Condition
   B49-28 (OC1+) - B49-22 (OC1-)	5 V/DIV, 1 ms/DIV	Idling
   B50-25 (OE1+) - B50-19 (OE1-)	5 V/DIV, 1 ms/DIV	Idling

2. WAVEFORM 2
   Fig 3: Identifying Waveform 2

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   AIR FUEL RATIO SENSOR (BANK 1 SENSOR 1) HEATER SIGNAL



   Terminal No. (Symbol)	Tool Setting	Condition
   B49-29 (HA1A) - B48-11 (E04)	5 V/DIV, 10 ms/DIV	Idling with warm engine

   HINT:

   The wavelength varies in accordance with the engine operating condition.

3. WAVEFORM 3
   Fig 4: Identifying Waveform 3

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   HEATED OXYGEN SENSOR (BANK 1 SENSOR 2) SIGNAL



   Terminal No. (Symbol)	Tool Setting	Condition
   B49-2 (OX1B) - B49-8 (O1B-)	0.2 V/DIV, 200 ms/DIV	Engine speed maintained at 2500 RPM for 2 minutes after warming up engine

   HINT:

   In the Data List, item O2S B1 S2 shows the ECM input values from the heated oxygen sensor.

4. WAVEFORM 4
   Fig 5: Identifying Waveform 4

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   INJECTOR NO. 1 (TO NO. 4) INJECTION SIGNAL



   Terminal No. (Symbol)	Tool Setting	Condition
   B48-7 (#10) - B48-1 (E01)	20 V/DIV, 20 ms/DIV	Idling
   B48-8 (#20) - B48-1 (E01)	20 V/DIV, 20 ms/DIV	Idling
   B48-9 (#30) - B48-1 (E01)	20 V/DIV, 20 ms/DIV	Idling
   B48-10 (#40) - B48-1 (E01)	20 V/DIV, 20 ms/DIV	Idling

   HINT:

   The wavelength becomes shorter as the engine speed increases.

5. WAVEFORM 5
   Fig 6: Identifying Signal Waveform 5

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   KNOCK SENSOR SIGNAL



   Terminal No. (Symbol)	Tool Setting	Condition
   B51-12 (KNK1) - B51-6 (EKNK)	1 V/DIV, 1 ms/DIV	Engine speed maintained at 4000 RPM after warming up engine

   HINT:

   • The wavelength becomes shorter as the engine speed increases.
   • The waveforms and amplitudes displayed differ slightly depending on the vehicle.
6. WAVEFORM 6
   Fig 7: Identifying Waveform 6

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   CRANKSHAFT POSITION SENSOR SIGNAL



   Terminal No. (Symbol)	Tool Setting	Condition
   B50-14 (NE+) - B50-2 (NE-)	5 V/DIV, 20 ms/DIV	Idling

   HINT:

   The wavelength becomes shorter as the engine speed increases.

7. WAVEFORM 7
   Fig 8: Identifying Waveform 7

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   CAMSHAFT POSITION SENSOR SIGNAL



   Terminal No. (Symbol)	Tool Setting	Condition
   B49-17 (G2+) - B49-5 (G2-)	5 V/DIV, 20 ms/DIV	Idling
   B50-13 (EV1+) - B50-1 (EV1-)	5 V/DIV, 20 ms/DIV	Idling

   HINT:

   The wavelength becomes shorter as the engine speed increases.

8. WAVEFORM 8
   Fig 9: Identifying Waveform 8

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

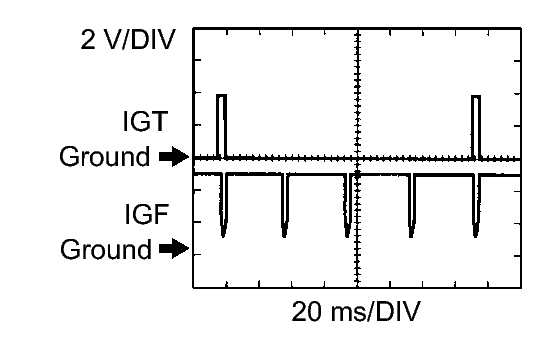

   IGNITION COIL IGT SIGNAL (FROM ECM TO IGNITION COIL) AND IGNITION COIL IGF SIGNAL (FROM IGNITION COIL TO ECM)



   Terminal No. (Symbol)	Tool Setting	Condition
   B48-2 (IGT1) - B49-6 (E1)	2 V/DIV, 20 ms/DIV	Idling
   B48-3 (IGT2) - B49-6 (E1)	2 V/DIV, 20 ms/DIV	Idling
   B48-4 (IGT3) - B49-6 (E1)	2 V/DIV, 20 ms/DIV	Idling
   B48-5 (IGT4) - B49-6 (E1)	2 V/DIV, 20 ms/DIV	Idling
   B48-16 (IGF1) - B49-6 (E1)	2 V/DIV, 20 ms/DIV	Idling

   HINT:

   The wavelength becomes shorter as the engine speed increases.

9. WAVEFORM 9
   Fig 10: Identifying Waveform 9

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   PURGE VSV SIGNAL



   Terminal No. (Symbol)	Tool Setting	Condition
   B51-26 (PRG) - B49-6 (E1)	10 V/DIV, 20 ms/DIV	Idling

   HINT:

   If the waveform is not similar to the illustration, check the waveform again after idling for 10 minutes or more.

10. WAVEFORM 10
    Fig 11: Identifying Waveform 10

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    VEHICLE SPEED SIGNAL



    Terminal No. (Symbol)	Tool Setting	Condition
    D60-29 (SPD) - B49-6 (E1)	2 V/DIV, 20 ms/DIV	Vehicle driven at 12 mph (20 km/h)

    HINT:

    The wavelength becomes shorter as the vehicle speed increases.

11. WAVEFORM 11
    Fig 12: Identifying Waveform 11

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

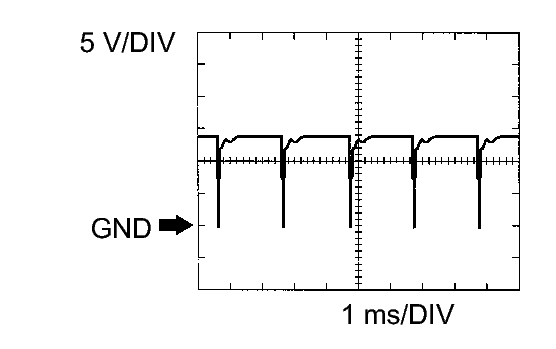

    THROTTLE ACTUATOR POSITIVE TERMINAL SIGNAL



    Terminal No. (Symbol)	Tool Setting	Condition
    B48-18 (M+) - B48-20 (ME01)	5 V/DIV, 1 ms/DIV	Idling with warm engine

    HINT:

    The duty ratio varies depending on the throttle actuator operation.

12. WAVEFORM 12
    Fig 13: Identifying Waveform 12

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

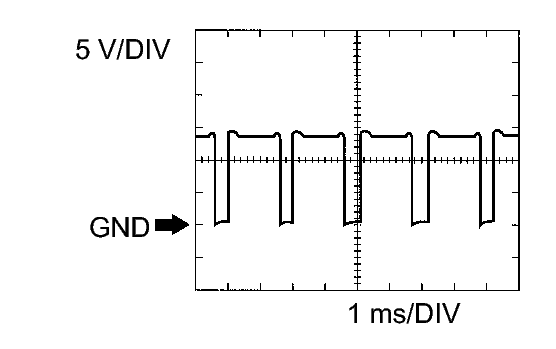

    THROTTLE ACTUATOR NEGATIVE TERMINAL SIGNAL



    Terminal No. (Symbol)	Tool Setting	Condition
    B48-19 (M-) - B48-20 (ME01)	5 V/DIV, 1 ms/DIV	Idling with warm engine

    HINT:

    The duty ratio varies depending on the throttle actuator operation.

13. WAVEFORM 13
    Fig 14: Identifying Waveform 13

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    ENGINE SPEED SIGNAL



    Terminal No. (Symbol)	Tool Setting	Condition
    D60-23 (TACH) - B49-6 (E1)	5 V/DIV, 10 ms/DIV	Idling

    HINT:

    The wavelength becomes shorter as the engine speed increases.

14. WAVEFORM 14
    Fig 15: Identifying Waveform 14

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    CAN COMMUNICATION SIGNAL (REFERENCE)



    Terminal No. (Symbol)	Tool Setting	Condition
    D61-18 (CANH) - B49-6 (E1)	1 V/DIV, 10 μs/DIV	Ignition switch ON

    HINT:

    The waveform varies depending on the CAN communication signal.

15. WAVEFORM 15
    Fig 16: Identifying Waveform 15

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    CAN COMMUNICATION SIGNAL (REFERENCE)



    Terminal No. (Symbol)	Tool Setting	Condition
    D61-20 (CANL) - B49-6 (E1)	1 V/DIV, 10 μs/DIV	Ignition switch ON

    HINT:

    The waveform varies depending on the CAN communication signal.

16. WAVEFORM 16
    Fig 17: Identifying Waveform 16

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    DC MOTOR FOR TUMBLE CONTROL VALVE POSITIVE TERMINAL SIGNAL



    Terminal No. (Symbol)	Tool Setting	Condition
    B51-33 (IA1+) - B48-1 (E01)	5 V/DIV, 1 ms/DIV	Idling with cold engine

17. WAVEFORM 17
    Fig 18: Identifying Waveform 17

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    DC MOTOR FOR TUMBLE CONTROL VALVE NEGATIVE TERMINAL SIGNAL



    Terminal No. (Symbol)	Tool Setting	Condition
    B51-34 (IA1-) - B48-1 (E01)	5 V/DIV, 1 ms/DIV	Idling with cold engine

18. WAVEFORM 18
    Fig 19: Identifying Waveform 18

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    CAN COMMUNICATION SIGNAL



    Terminal No. (Symbol)	Tool Setting	Condition
    B51-30 (CAN+) - B49-6 (E1)	1 V/DIV, 10 μsec/DIV	Ignition switch ON

    HINT:

    The waveform varies depending on the CAN communication signal.

19. WAVEFORM 19
    Fig 20: Identifying Waveform 19

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    CAN COMMUNICATION SIGNAL



    Terminal No. (Symbol)	Tool Setting	Condition
    B51-36 (CAN-) - B49-6 (E1)	1 V/DIV, 10 μsec/DIV	Ignition switch ON

    HINT:

    The waveform varies depending on the CAN communication signal.
