Windshield Glass: Components: Illustration

WARNING: This page is about a different variant/trim than selected.
Fig 1: Identifying Windshield Glass Replacement Components With Torque Specifications (1 Of 3)
GTY199529Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Identifying Windshield Glass Replacement Components(2 of 2)
GTY302618Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

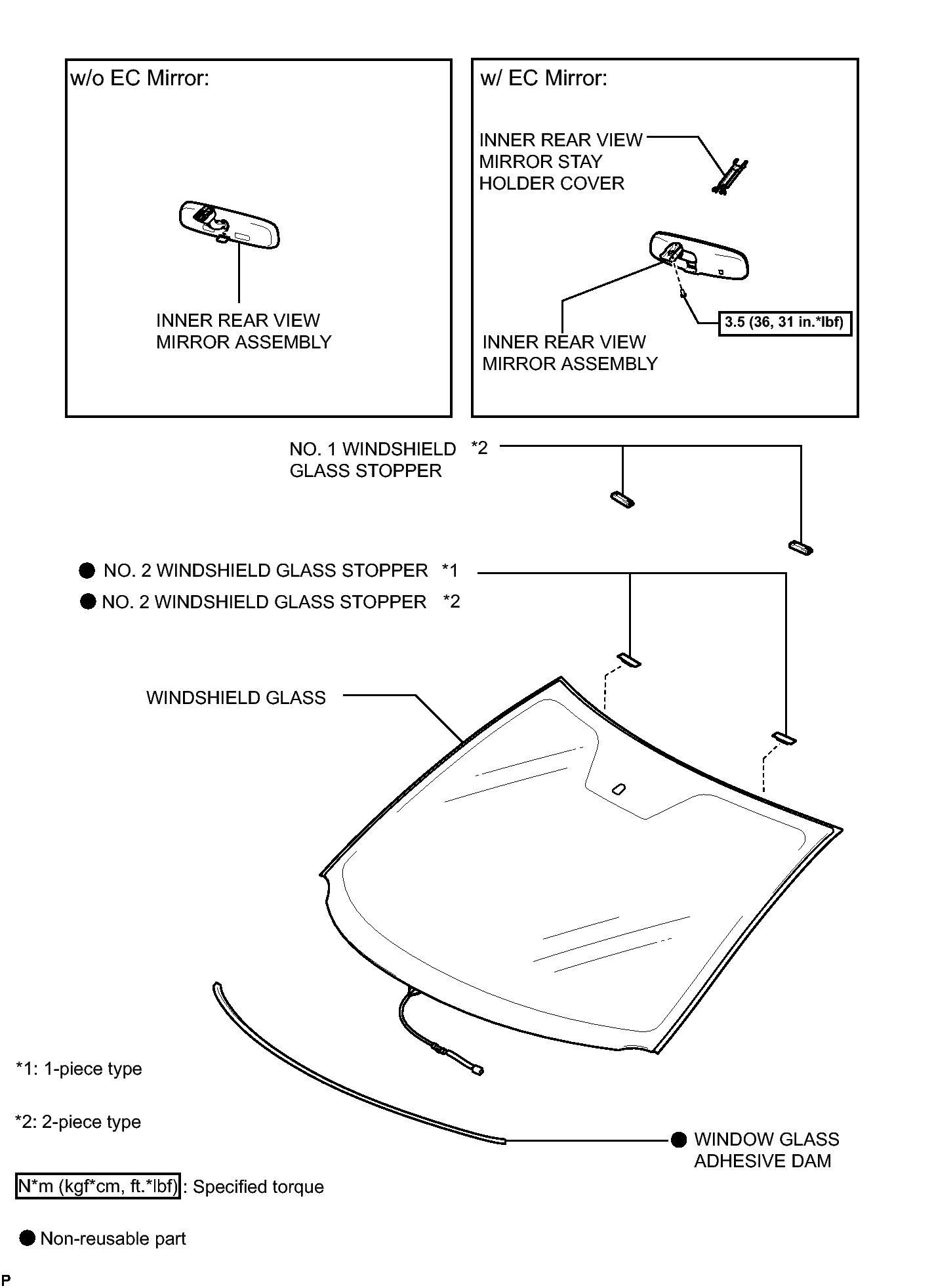

Fig 1: Windshield Glass Replacement Components With Torque Specifications (3 Of 3)
GTY199291Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
