TC and CG Terminal Circuit: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.

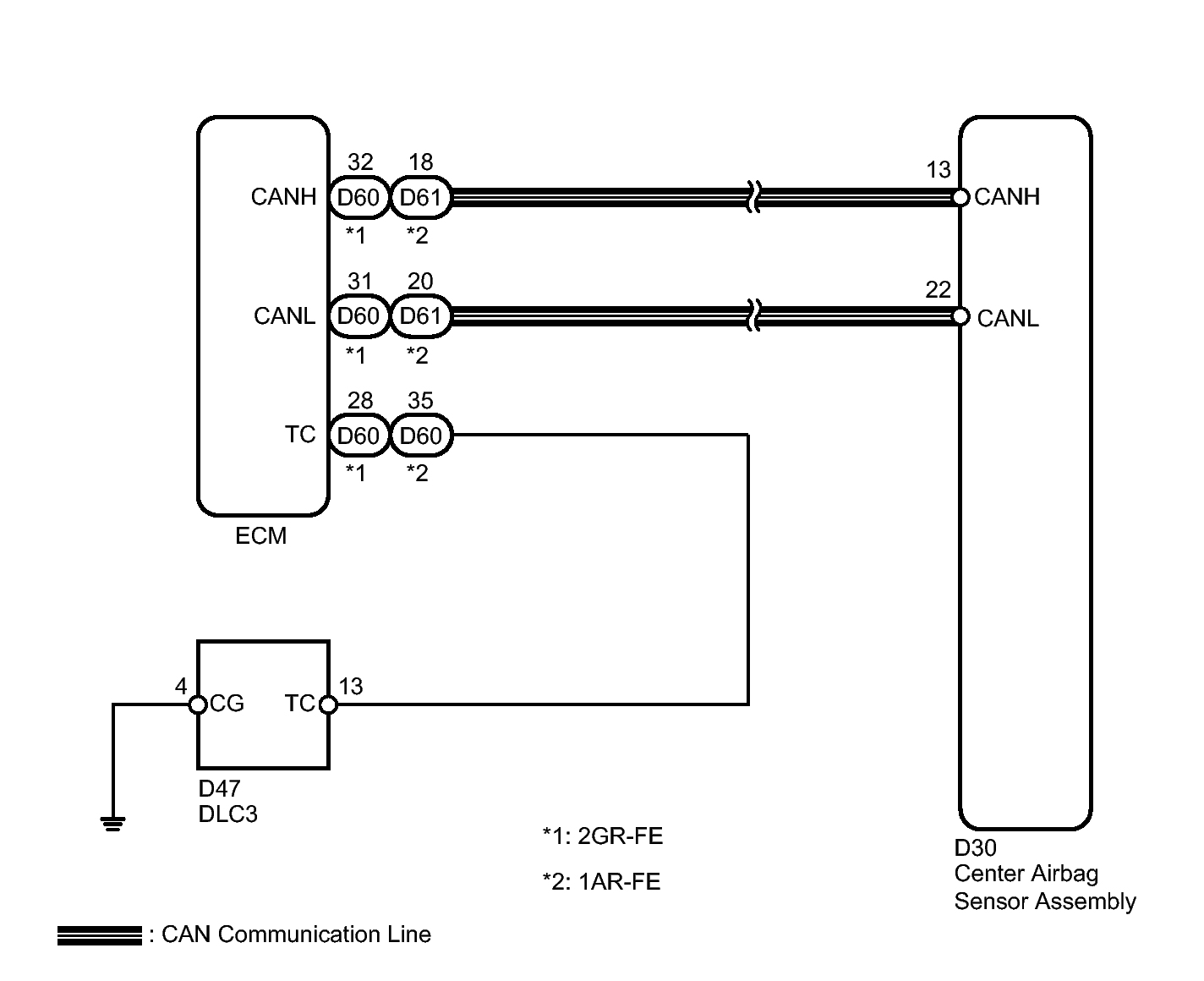

Fig 1: Identifying Center Airbag Sensor Assembly Wiring Diagram
GTY305070Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
