DTC B1905/74: Short in Front Pretensioner Squib LH Circuit; DTC B1906/74: Open in Front Pretensioner Squib LH Circuit; DTC B1907/74: Short to GND in Front Pretensioner Squib LH Circuit; DTC B1908/74: Short to B+ in Front Pretensioner Squib LH Circuit: Procedure

1. Turn the ignition switch off.
   Fig 1: Identifying Floor Wire & Connectors

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.
3. Check that the connectors are properly connected to the front seat outer belt assembly LH and center airbag sensor assembly.

   OK

   The connectors are not properly connected.

   HINT:

   If the connectors are not connected securely, reconnect the connectors and proceed to the next inspection.

4. Disconnect the connectors from the front seat outer belt assembly LH and center airbag sensor assembly.
5. Check that the terminals of the connectors are not damaged.

   OK

   The terminals are not deformed or damaged.

6. Check that the No. 2 floor wire connector (on the front seat outer belt assembly LH side) is not damaged.

   OK

   The lock button is not disengaged, and the claw of the lock is not deformed or damaged.

7. Check that the short spring for the No. 2 floor wire with the activation prevention mechanism is not deformed or damaged.

   OK

   The short spring is not deformed or damaged.

NG → REPLACE NO. 2 FLOOR WIRE

OK: Go to next step

1. Connect the connector to the center airbag sensor assembly.

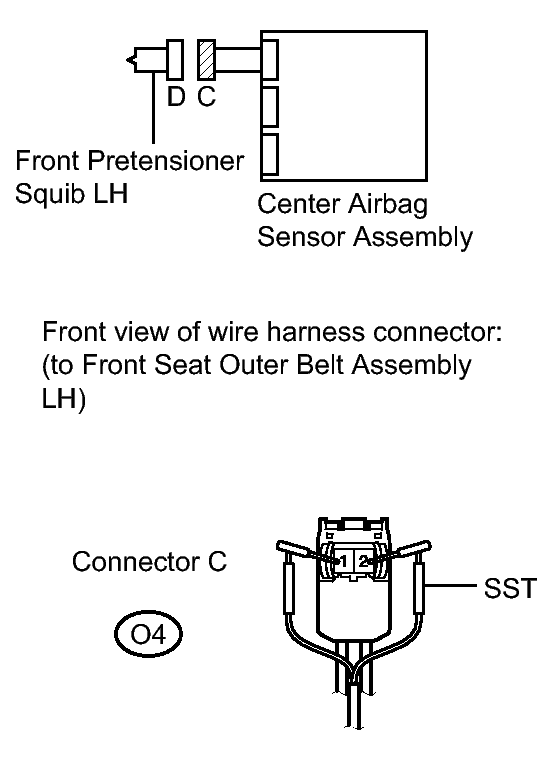

   Fig 2: Identifying Front Seat Outer Belt Assembly LH (Front Pretensioner Squib LH)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Connect SST (resistance 2.1 Ω) to connector C.
   WARNING:

   Never connect the tester to the front seat outer belt assembly LH (front pretensioner squib LH) for measurement, as this may lead to a serious injury due to airbag deployment.

   NOTE:

   • Do not forcibly insert SST into the terminals of the connector when connecting.
   • Insert SST straight into the terminals of the connector.
   • SST: 09843-18061
3. Connect the cable to the negative (-) battery terminal.
4. Turn the ignition switch on (IG), and wait for at least 60 seconds.
5. Clear the DTCs stored in the memory, refer to DTC CHECK / CLEAR .
6. Turn the ignition switch off.
7. Turn the ignition switch on (IG), and wait for at least 60 seconds.
8. Check for DTCs, refer to DTC CHECK / CLEAR .

   OK

   DTC B1905, B1906, B1907, B1908 or 74 is not output.

   HINT:

   Codes other than DTCs B1905, B1906, B1907, B1908 and 74 may be output at this time, but they are not related to this check.

NG → See step   4

OK → See step   3

1. Turn the ignition switch off.
   Fig 3: Identifying No. 2 Floor Wire (Front Pretensioner Squib LH Circuit)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.
3. Disconnect SST from connector C.
4. Disconnect the No. 2 floor wire from the center airbag sensor assembly.
5. Check for a short to B+ in the circuit.
   1. Connect the cable to the negative (-) battery terminal.
   2. Turn the ignition switch on (IG).
   3. Measure the voltage according to the value(s) in the table below.

      Standard Voltage

      Tester Connection	Switch Condition	Specified Condition
      O4-1 (L+) - Body ground	Ignition switch on (IG)	Below 1 V
      O4-2 (L-) - Body ground	Ignition switch on (IG)	Below 1 V

6. Check for an open in the circuit.
   1. Turn the ignition switch off.
   2. Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.
   3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection	Condition	Specified Condition
      O4-1 (L+) - O4-2 (L-)	Always	Below 1 Ω

7. Check for a short to ground in the circuit.
   1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection	Condition	Specified Condition
      O4-1 (L+) - Body ground	Always	1 MΩ or higher
      O4-2 (L-) - Body ground	Always	1 MΩ or higher

8. Check for a short in the circuit.
   1. Release the activation prevention mechanism built into connector B, refer to DIAGNOSIS SYSTEM .
   2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection	Condition	Specified Condition
      O4-1 (L+) - O4-2 (L-)	Always	1 MΩ or higher

NG → REPLACE NO. 2 FLOOR WIRE

OK: Go to next step

1. Restore the released activation prevention mechanism of connector B to the original condition.
   Fig 4: Identifying Center Airbag Sensor Assembly

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Connect the connectors to the front seat outer belt assembly LH and center airbag sensor assembly.
3. Connect the cable to the negative (-) battery terminal.
4. Turn the ignition switch on (IG), and wait for at least 60 seconds.
5. Clear the DTCs stored in the memory, refer to DTC CHECK / CLEAR .
6. Turn the ignition switch off.
7. Turn the ignition switch on (IG), and wait for at least 60 seconds.
8. Check for DTCs, refer to DTC CHECK / CLEAR .

   OK

   DTC B1905, B1906, B1907, B1908 or 74 is not output.

   HINT:

   Codes other than DTCs B1905, B1906, B1907, B1908 and 74 may be output at this time, but they are not related to this check.

NG → See step   6

OK → See step   7
