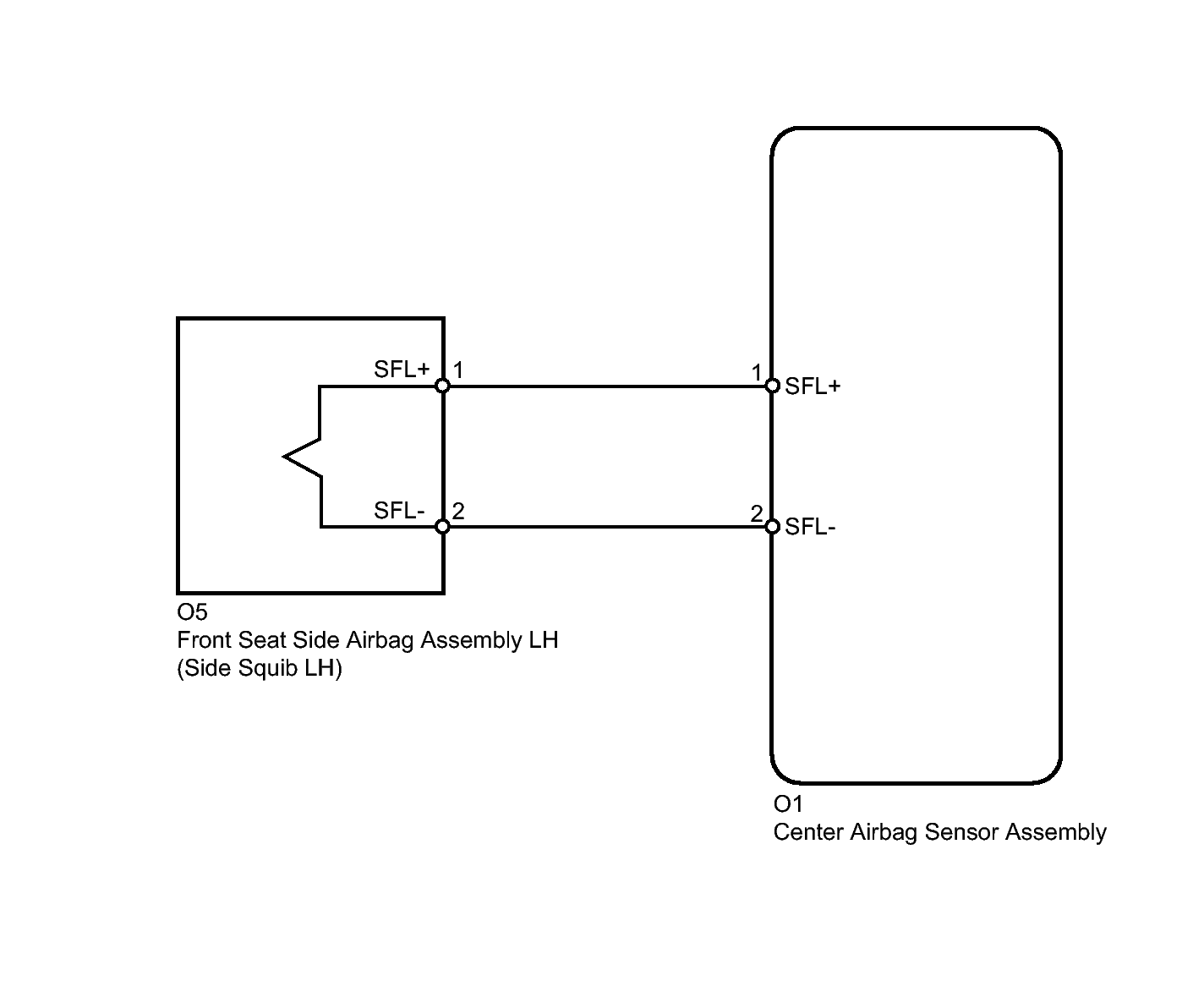

DTC B1825/56: Short in Side Squib LH Circuit; DTC B1826/56: Open in Side Squib LH Circuit; DTC B1827/56: Short to GND in Side Squib LH Circuit; DTC B1828/56: Short to B+ in Side Squib LH Circuit: Wiring Diagram
WARNING: This page is about a different variant/trim than selected.
