Section 109 (Supplemental Restraint System (Diagnostic Codes & Symptom Tests))
>>
Airbag System
>>
DTC B1656/38: Seat Belt Buckle Switch LH Circuit Malfunction
>>
Wiring Diagram
DTC B1656/38: Seat Belt Buckle Switch LH Circuit Malfunction: Wiring Diagram
WARNING:
This page is about a different variant/trim than selected.

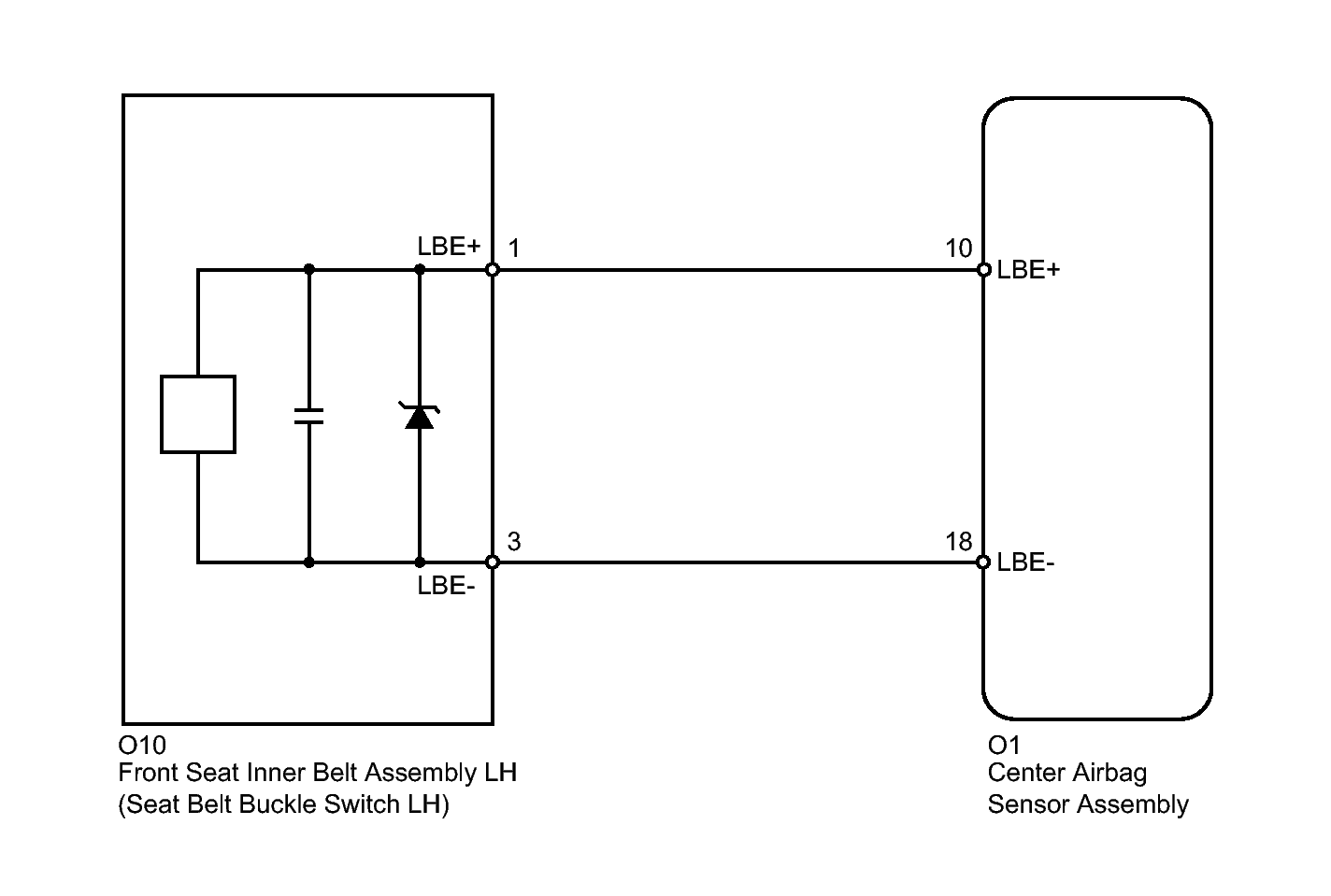

Fig 1: Identifying Front Seat Inner Belt Assembly Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
