DTC B1653/35: Seat Position Airbag Sensor Circuit Malfunction: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.

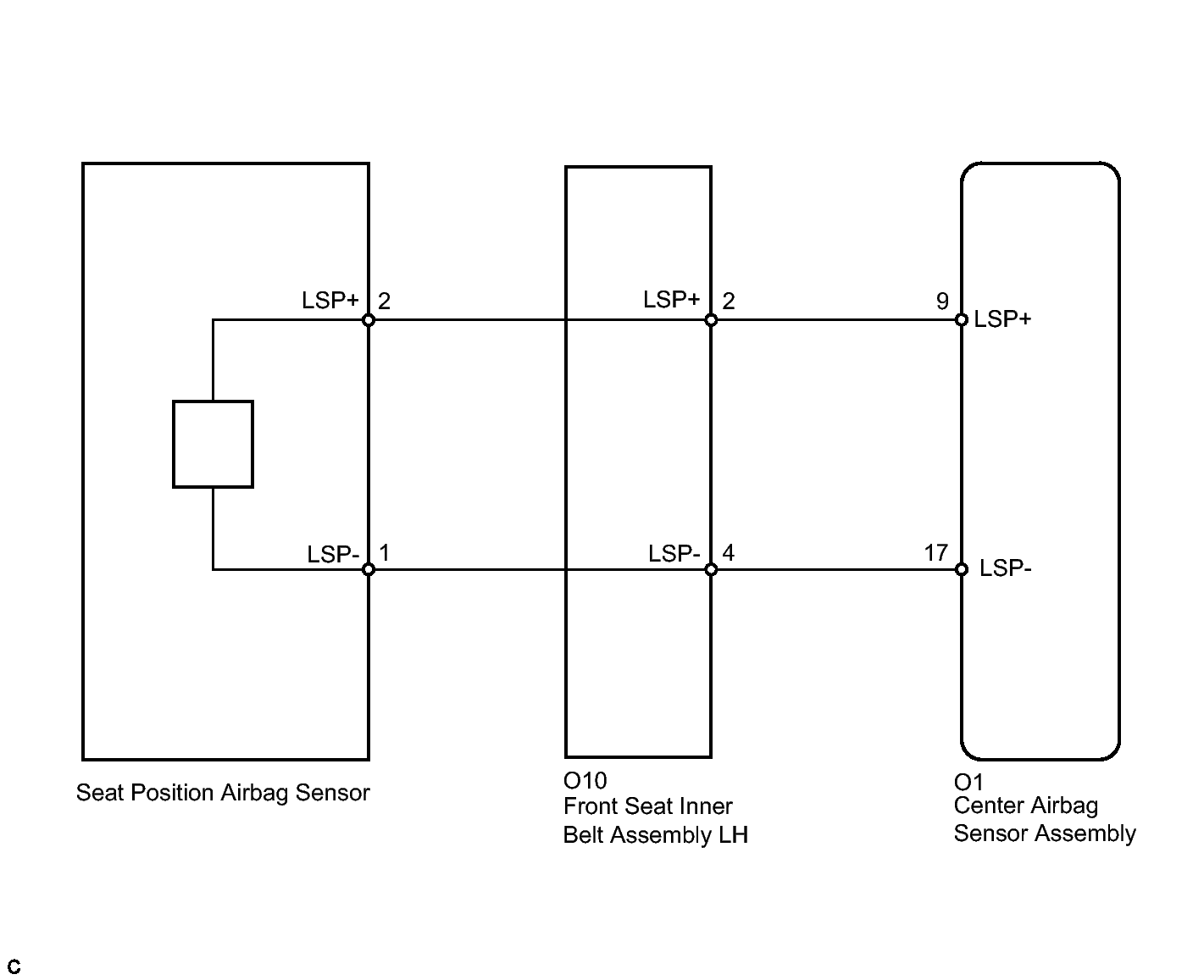

Fig 1: Seat Position Airbag Sensor - Wiring Diagram
GTY308203Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
