DTC B1635/24: Rear Airbag Sensor LH Circuit Malfunction: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.

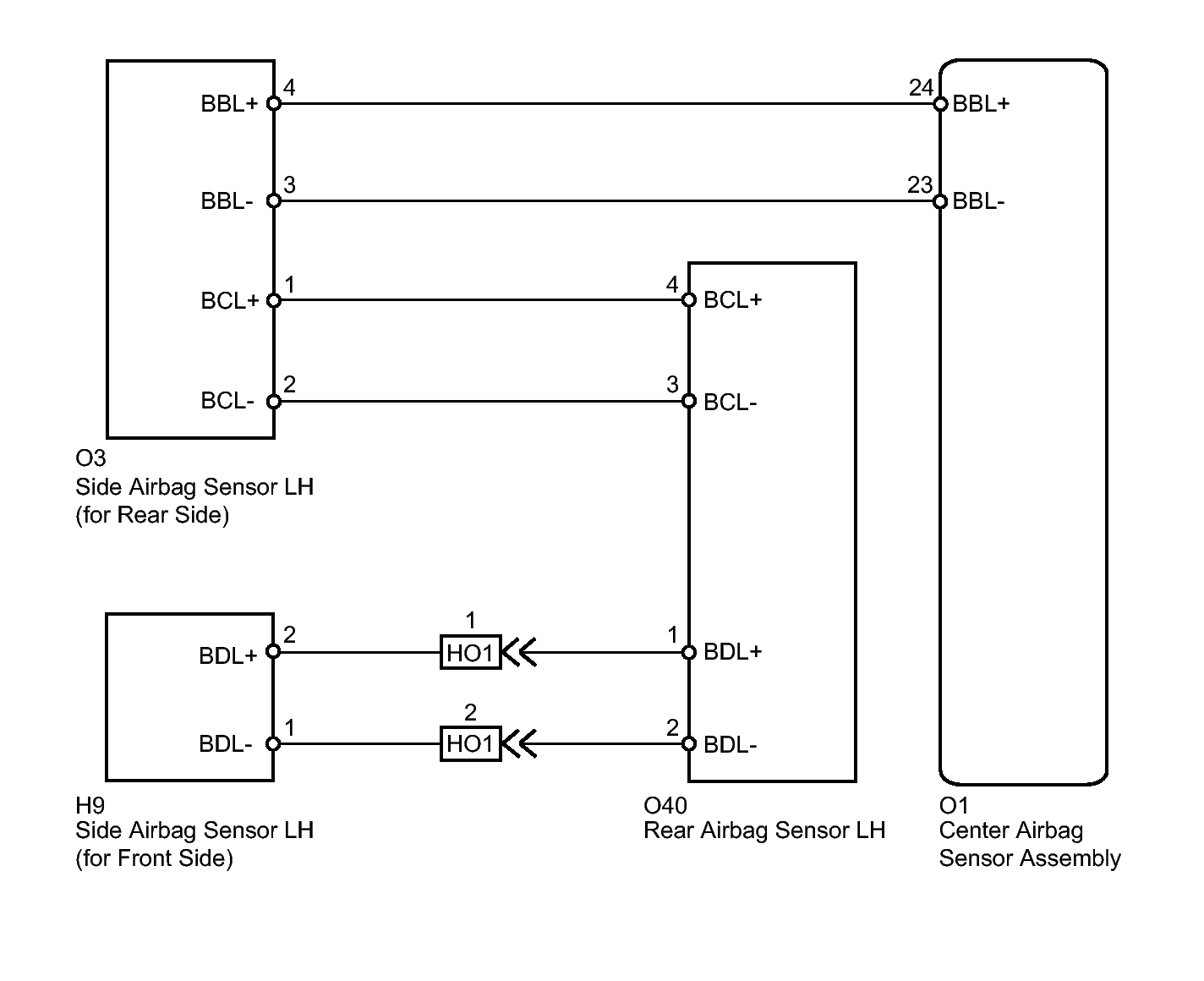

Fig 1: Identifying Airbag Sensor Assembly Wiring Diagram
GTY299536Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
