DTC B1497/97: BUS IC Communication Malfunction: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.

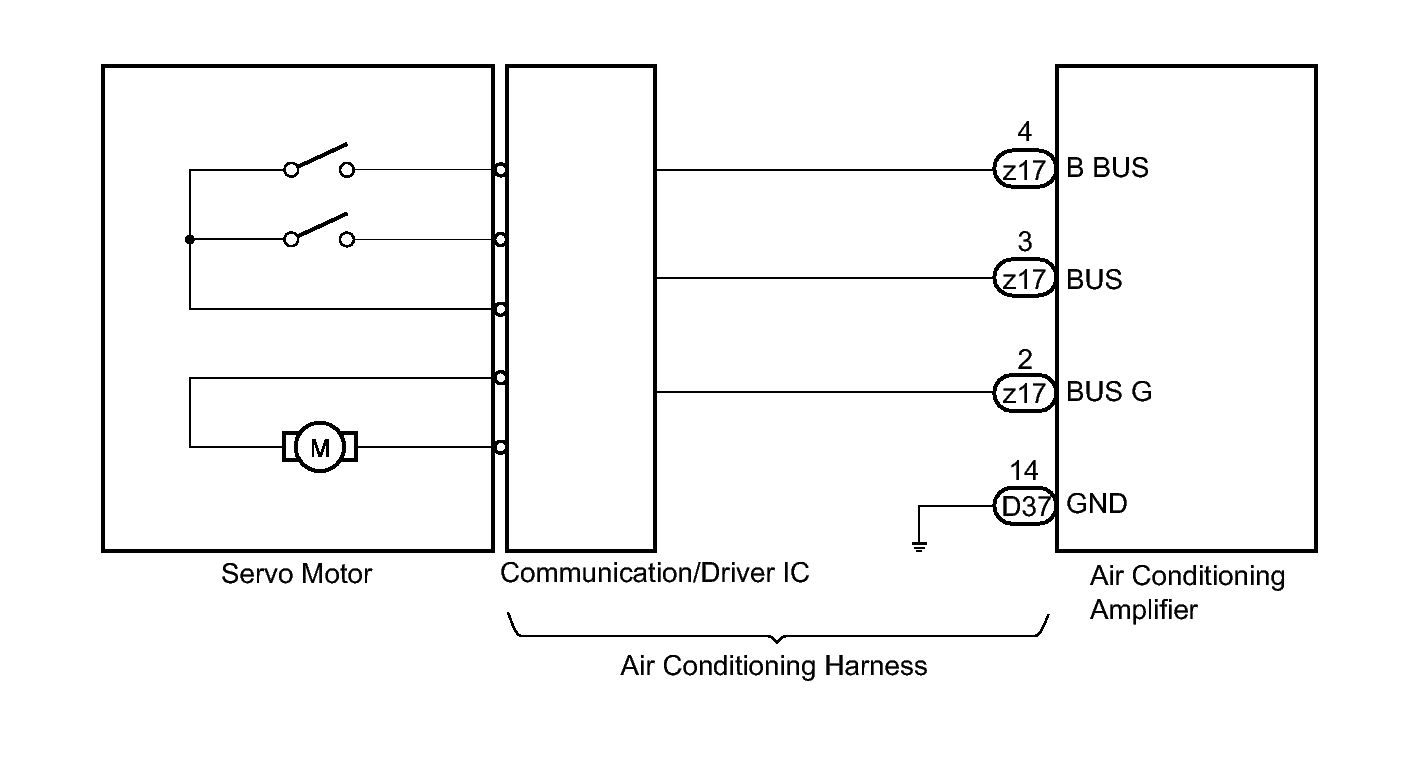

Fig 1: BUS IC Communication Malfunction - Wiring Diagram
GTY207360Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
