Section 10 (Engine Immobiliser System (W/O Smart Key) (Diagnostics - Introduction))
>>
ENGINE IMMOBILISER SYSTEM (w/o Smart Key System)
>>
System Diagram
>>
System Diagram
System Diagram
WARNING:
This page is about a different variant/trim than selected.

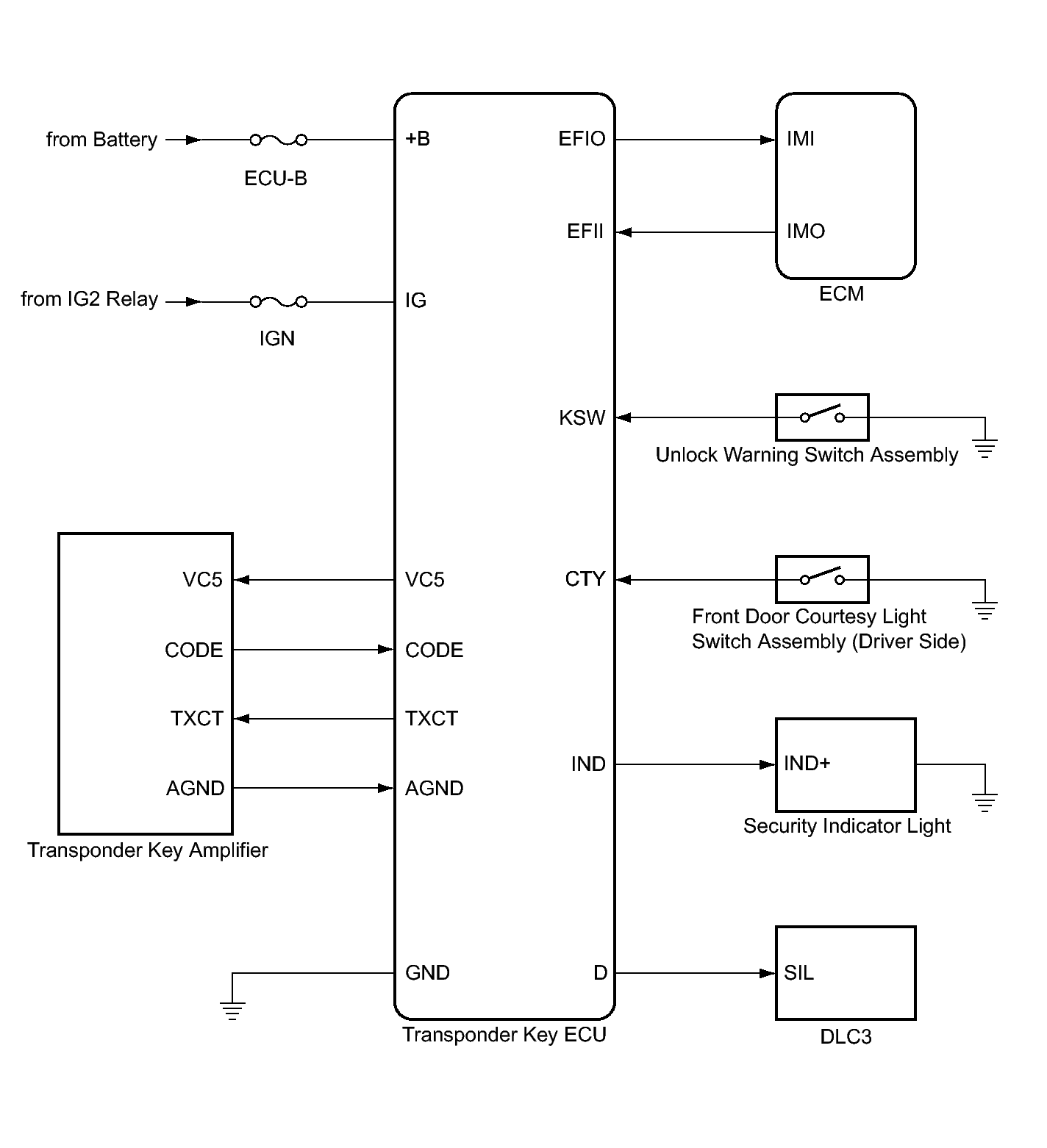

Fig 1: Identifying Engine Immobilizer System (w/o Smart Key System) Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
