Section 10 (Engine Immobiliser System (W/O Smart Key) (Diagnostics - Introduction))
>>
ENGINE IMMOBILISER SYSTEM (w/o Smart Key System)
>>
Components
>>
Illustration
ENGINE IMMOBILISER SYSTEM (w/o Smart Key System): Components: Illustration
WARNING:
This page is about a different variant/trim than selected.

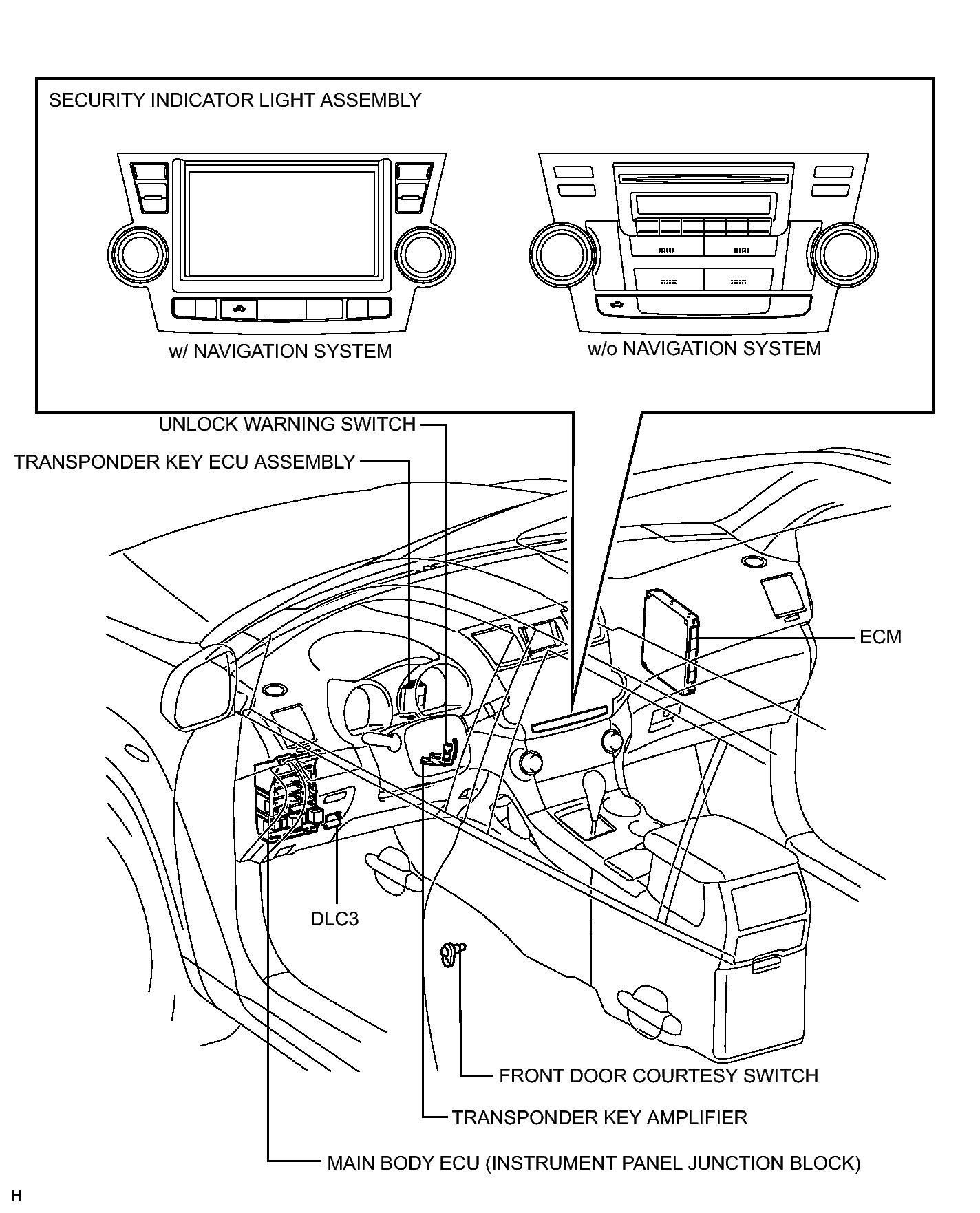

Fig 1: Identifying Engine Immobiliser System Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
