W/o Front Passenger's Power Seat: [Antenna]

WARNING: This page is about a different variant/trim than selected.

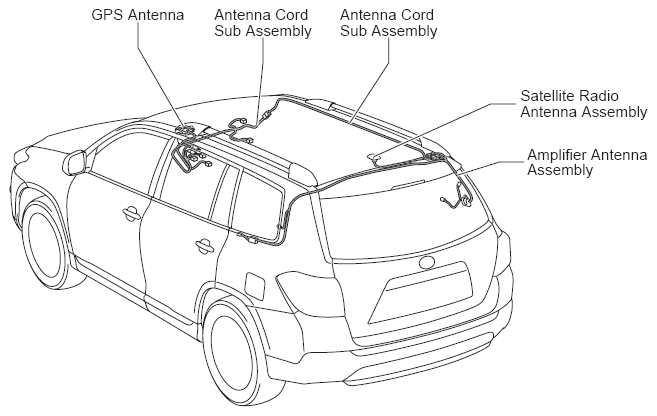

Fig 1: Locating Antenna Wiring Harness
G07115488Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
