: Location of Connector Joining Wire Harness and Wire Harness: Overview

WARNING: This page is about a different variant/trim than selected.

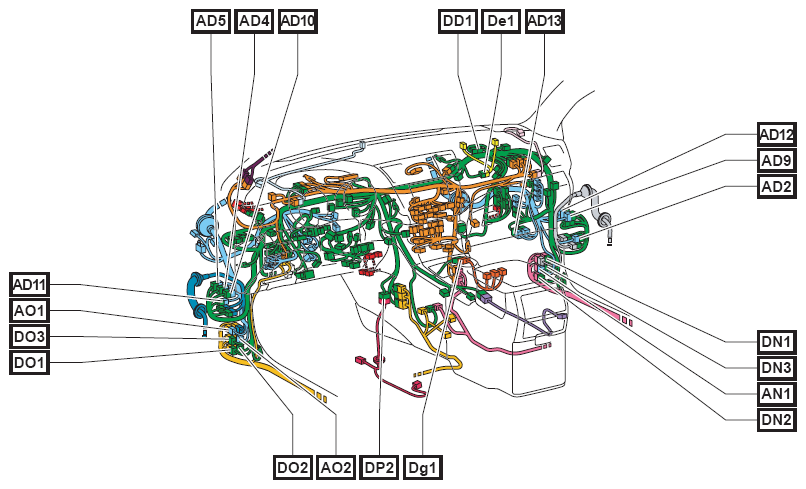

Fig 1: Locating Wiring Harness
G07115480Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

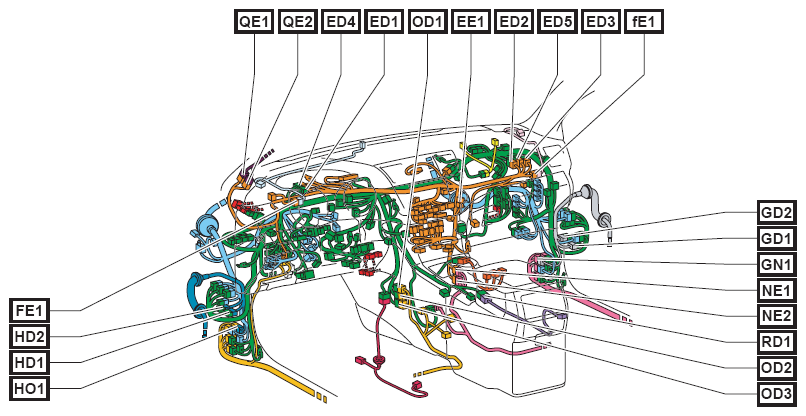

Fig 1: Locating Wiring Harness
G07115482Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

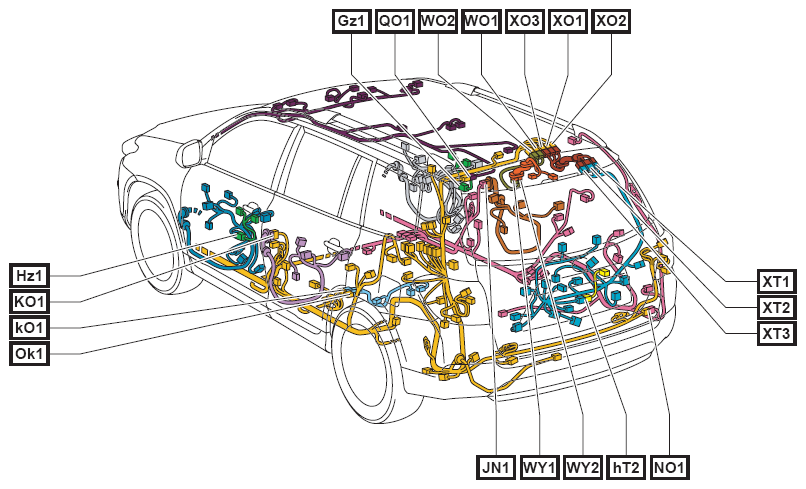

Fig 1: Locating Wiring Harness
G07115483Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

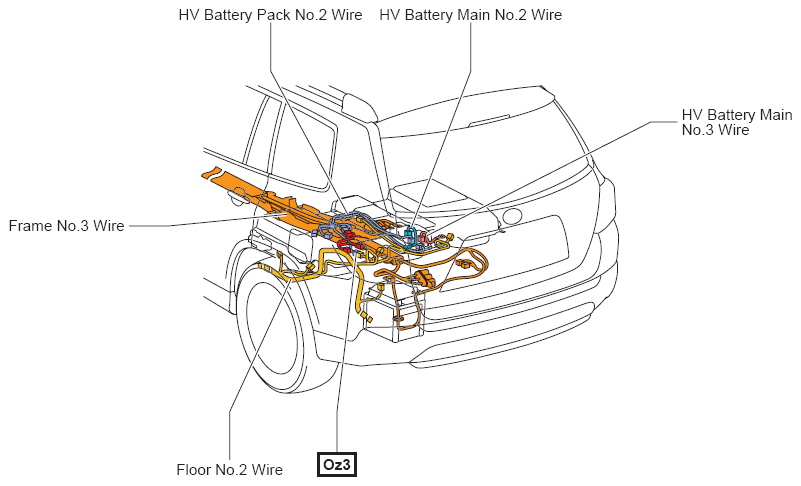

Fig 1: Locating Wiring Harness
G07115485Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
