Section 1 (OEM Electrical Wiring Harness Routing (Hybrid))
>>
Position of Parts in Seat
>>
W/ Front Passenger's Power Seat
W/ Front Passenger's Power Seat
WARNING:
This page is about a different variant/trim than selected.

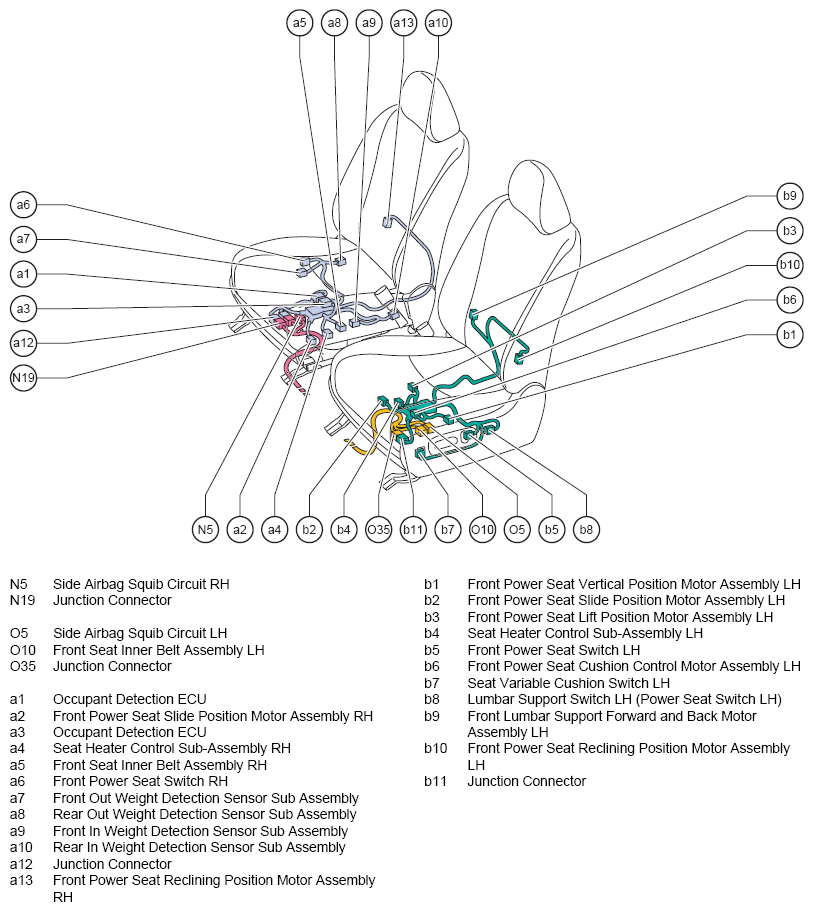

Fig 1: Seat Parts (w/ Front Passenger's Power Seat)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
