Electrical Wiring Routing
>>
Position of Parts in Instrument Panel
Position of Parts in Instrument Panel
WARNING:
This page is about a different variant/trim than selected.

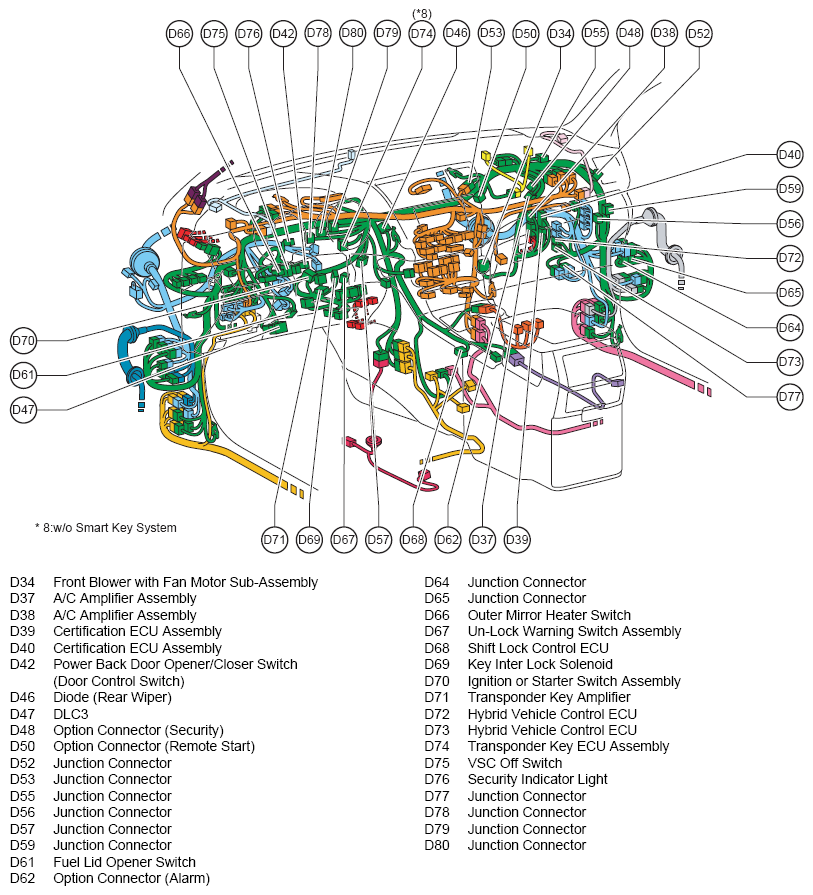

Fig 1: Instrument Panel Parts (1 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

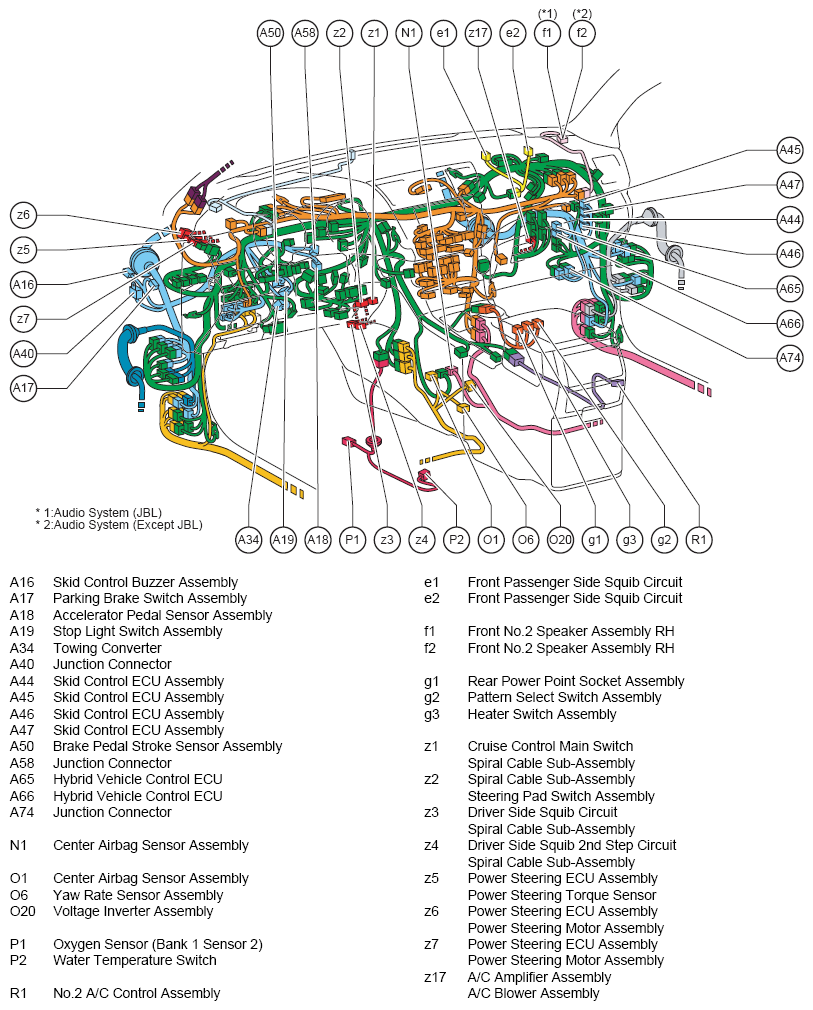

Fig 2: Instrument Panel Parts (2 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

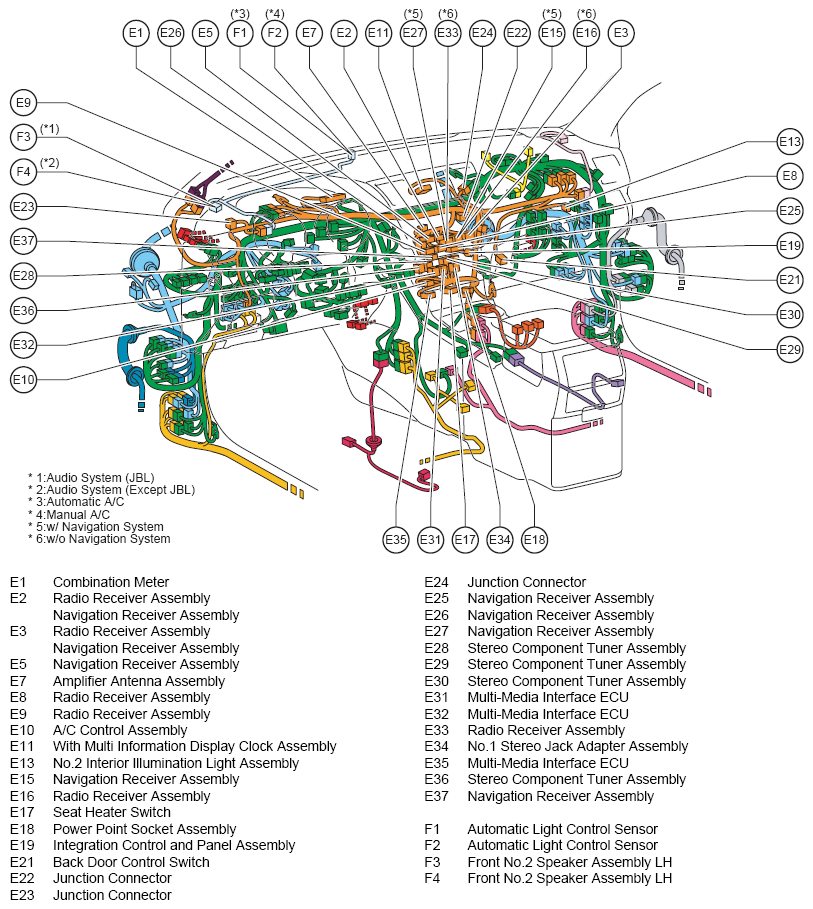

Fig 3: Instrument Panel Parts (3 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

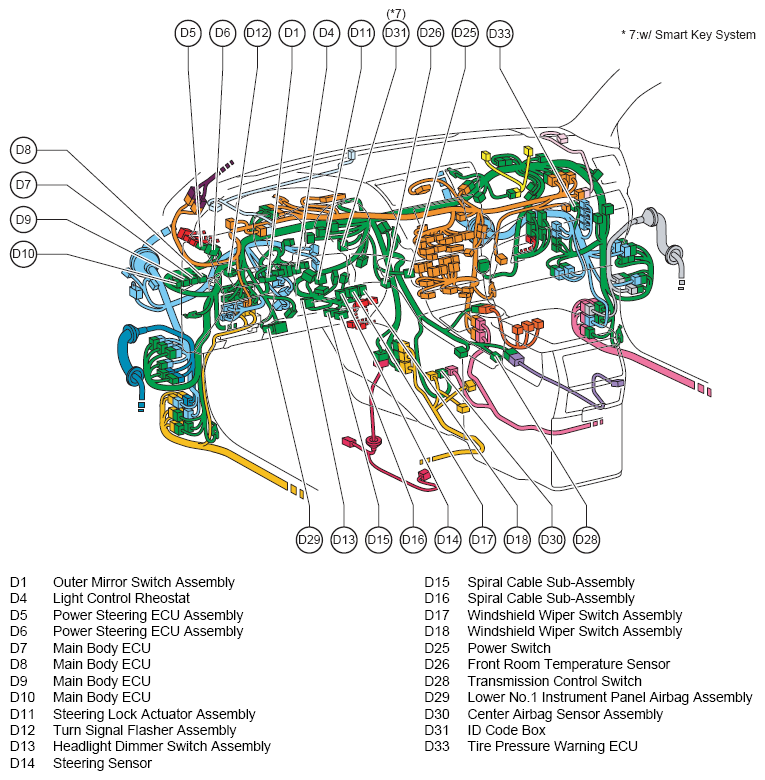

Fig 4: Instrument Panel Parts (4 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
