Position of Parts in Body

WARNING: This page is about a different variant/trim than selected.

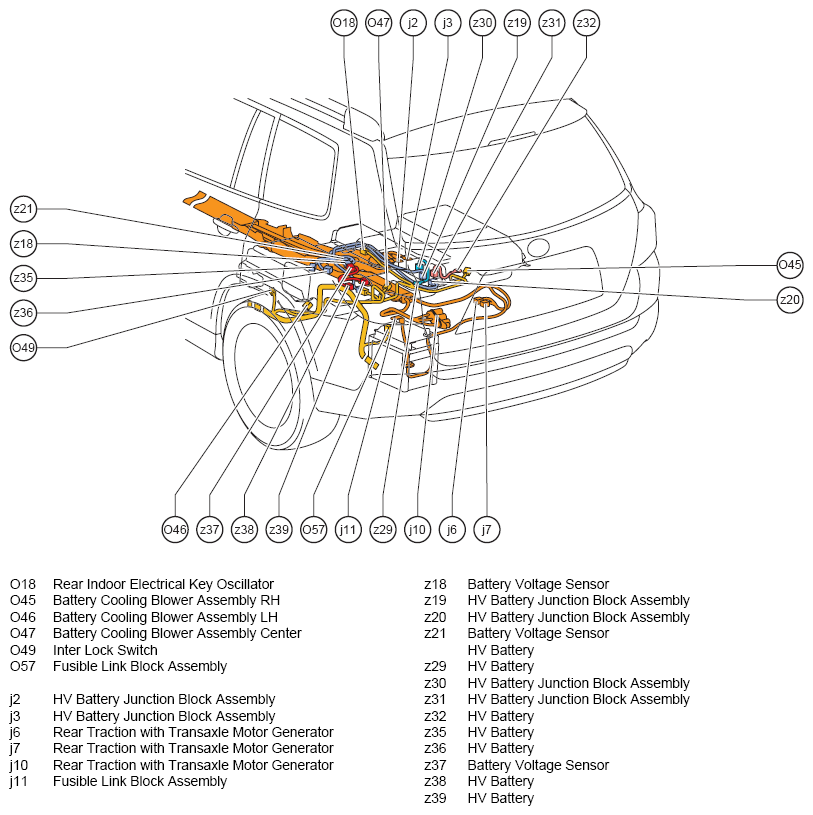

Fig 1: Body Parts (1 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

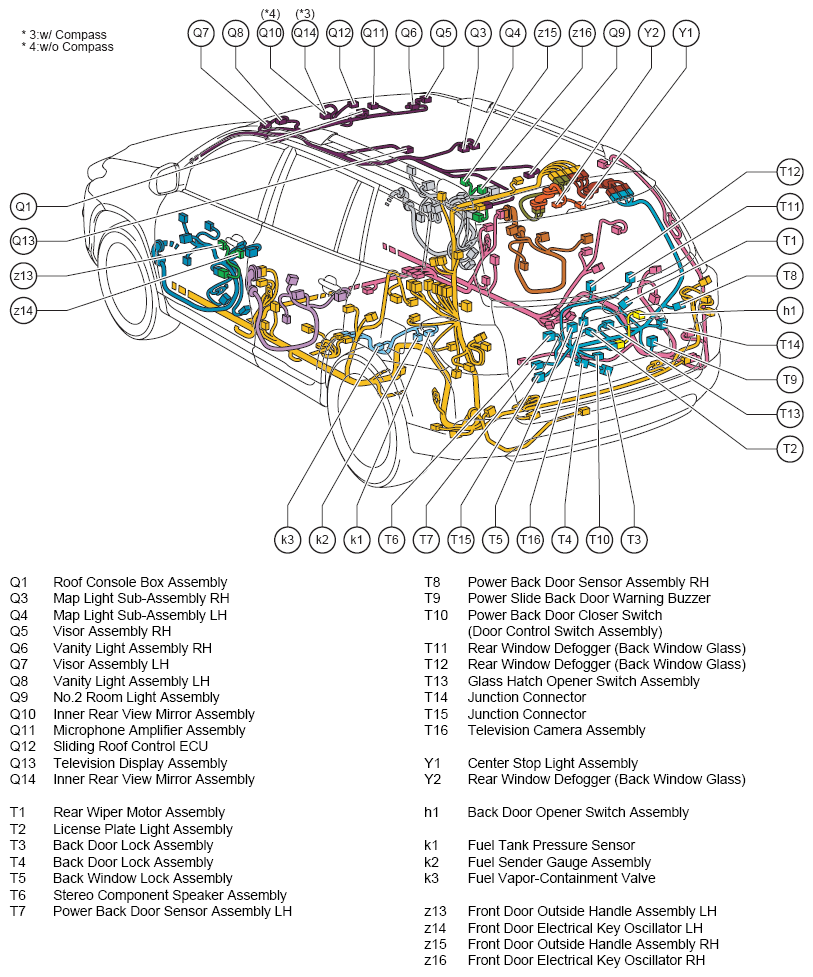

Fig 2: Body Parts (2 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

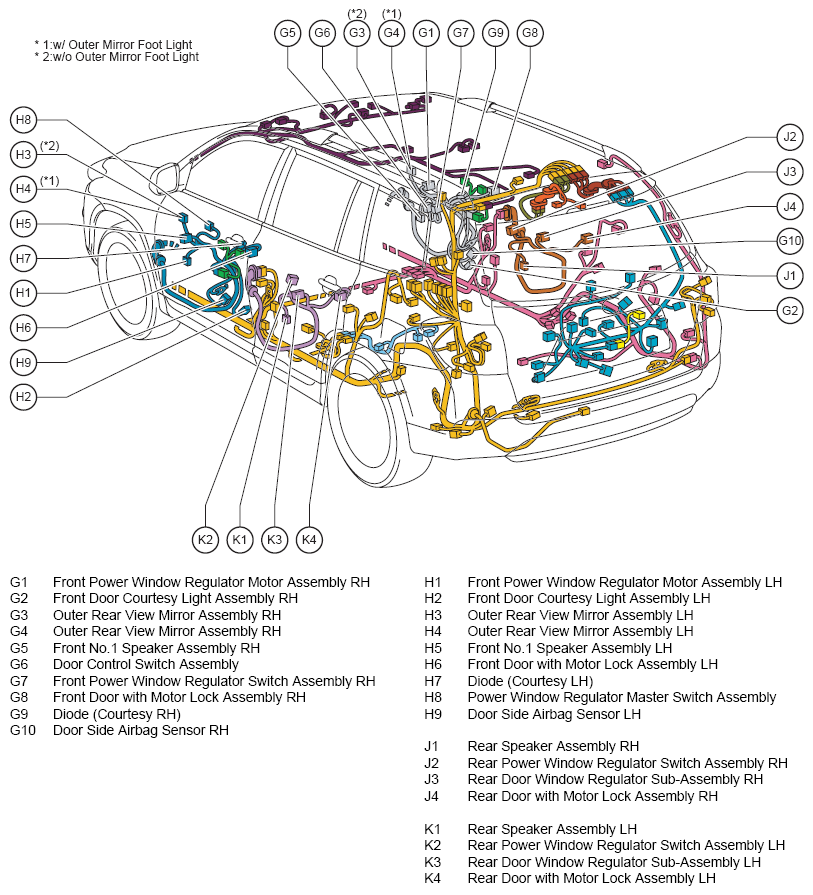

Fig 3: Body Parts (3 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

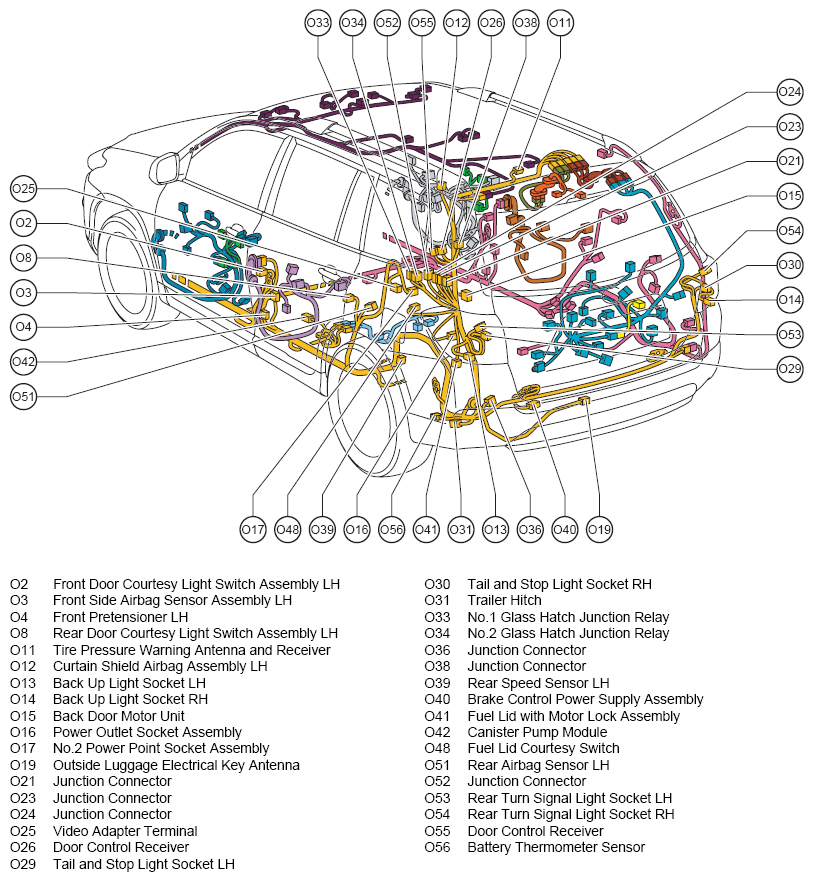

Fig 4: Body Parts (4 Of 5)

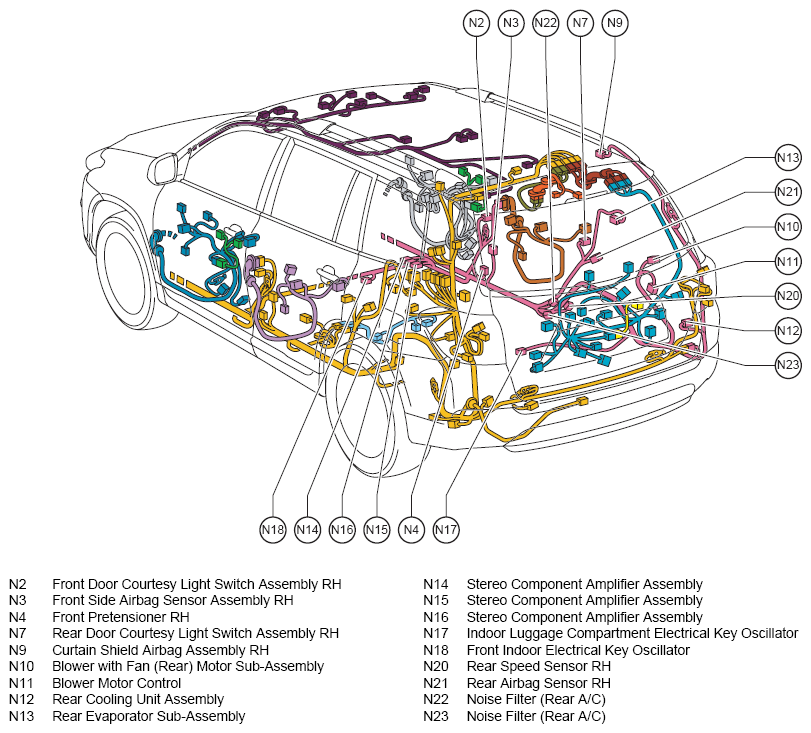

Fig 5: Body Parts (5 Of 5)
