Home >> Toyota >> 2011 >> Highlander Hybrid Limited >> Repair and Diagnosis >> Electrical >> Horns >> Horn (Service Information) (Hybrid) >> Low Pitched Horn >> Components >> Illustration

Low Pitched Horn: Components: Illustration

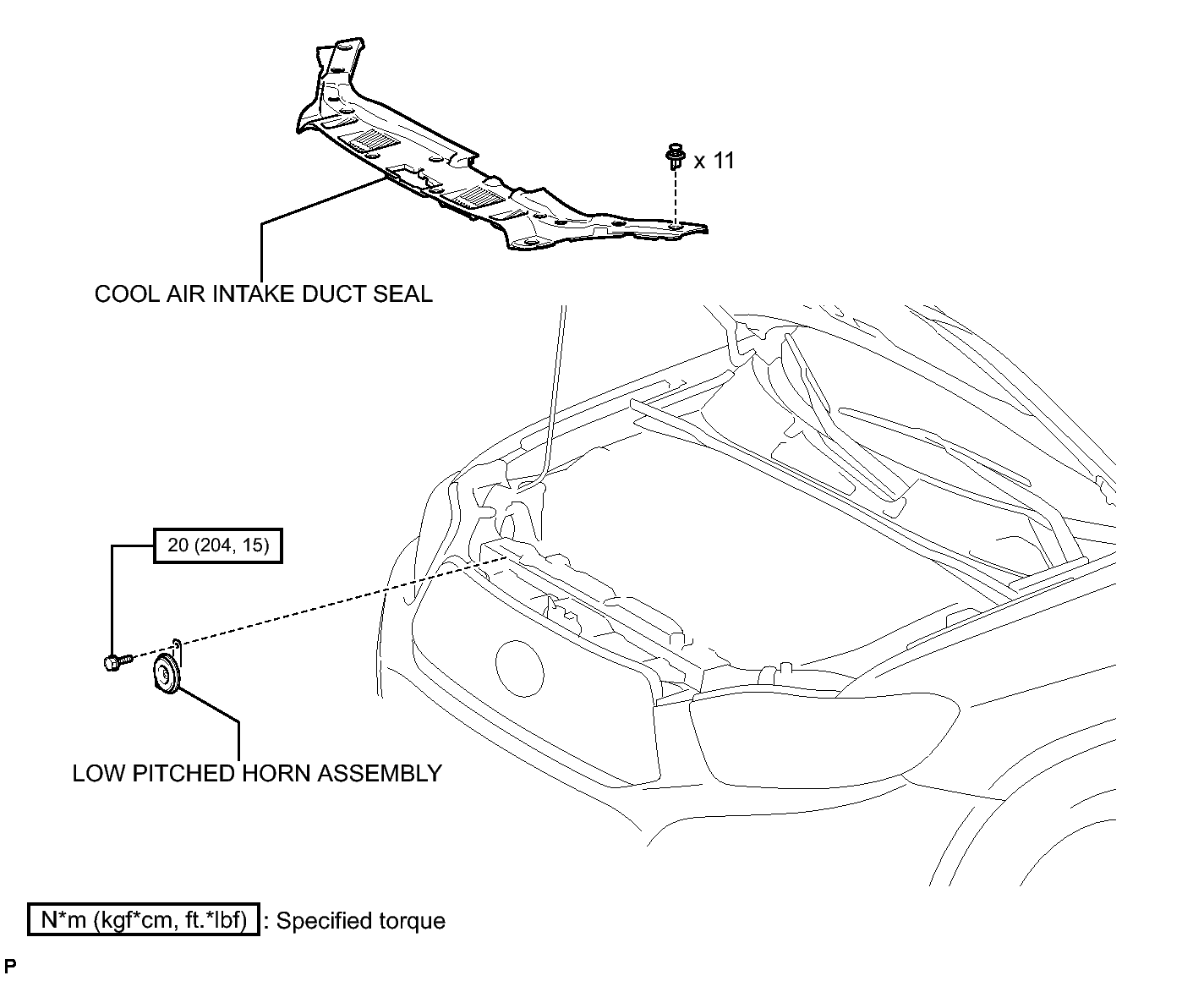

Fig 1: Identifying Low Pitched Horn Replacement Components With Torque Specifications

GTY301662

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
