High Pitched Horn: Inspection: Inspection

  1. INSPECT HIGH PITCHED HORN ASSEMBLY

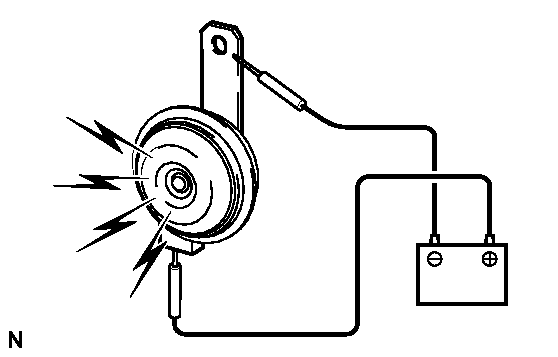

    Fig 1: Inspecting Low Pitched Horn
    GTY183789Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Apply battery voltage and check operation of the horn, as shown in the table below.

      Standard

      Measurement Condition Specified Condition
      Battery positive (+) → Terminal 1
      Battery negative (-) → Horn body      		 Horn sounds

      If the result is not as specified, replace the high pitched horn assembly.
