Front Axle Hub Bolt: Components: Illustration

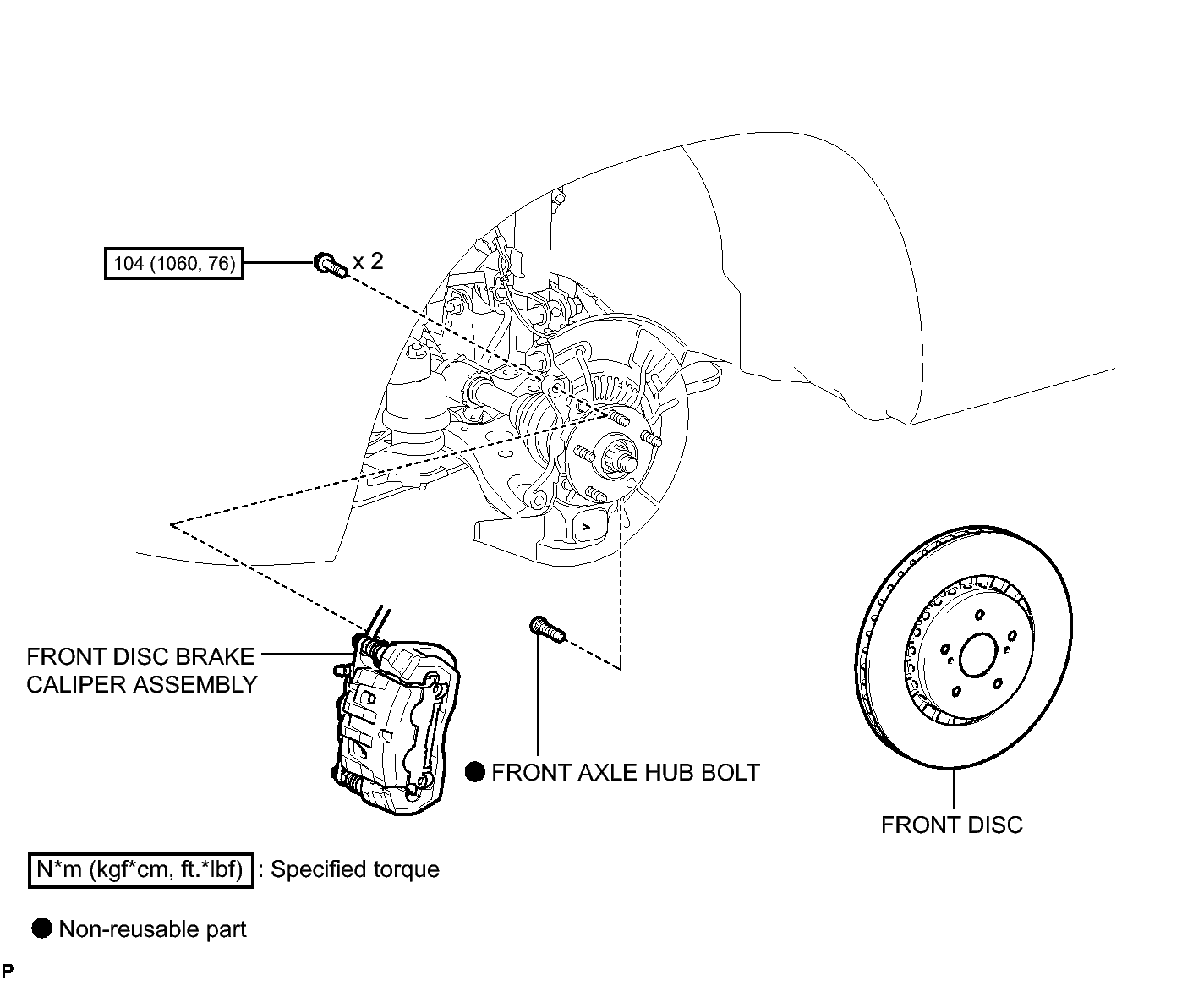

Fig 1: Identifying Front Axle Hub Bolt Replacement Components With Torque Specifications

GTY305117

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
