Rear Drive Shaft Assembly: Components: Illustration

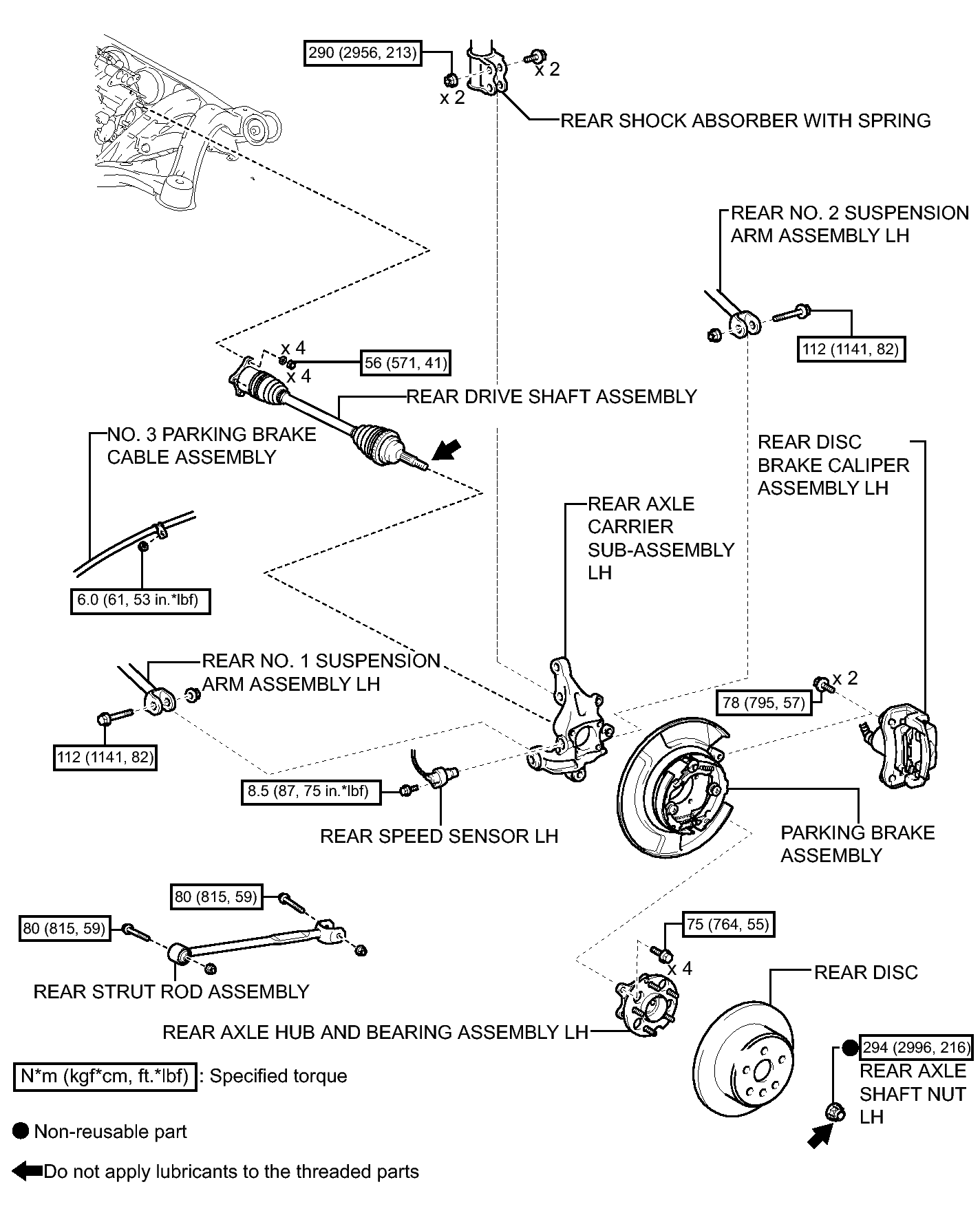

Fig 1: Identifying Rear Drive Shaft Assembly Replacement Components With Torque Specifications (1 of 2)
GTY306420Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

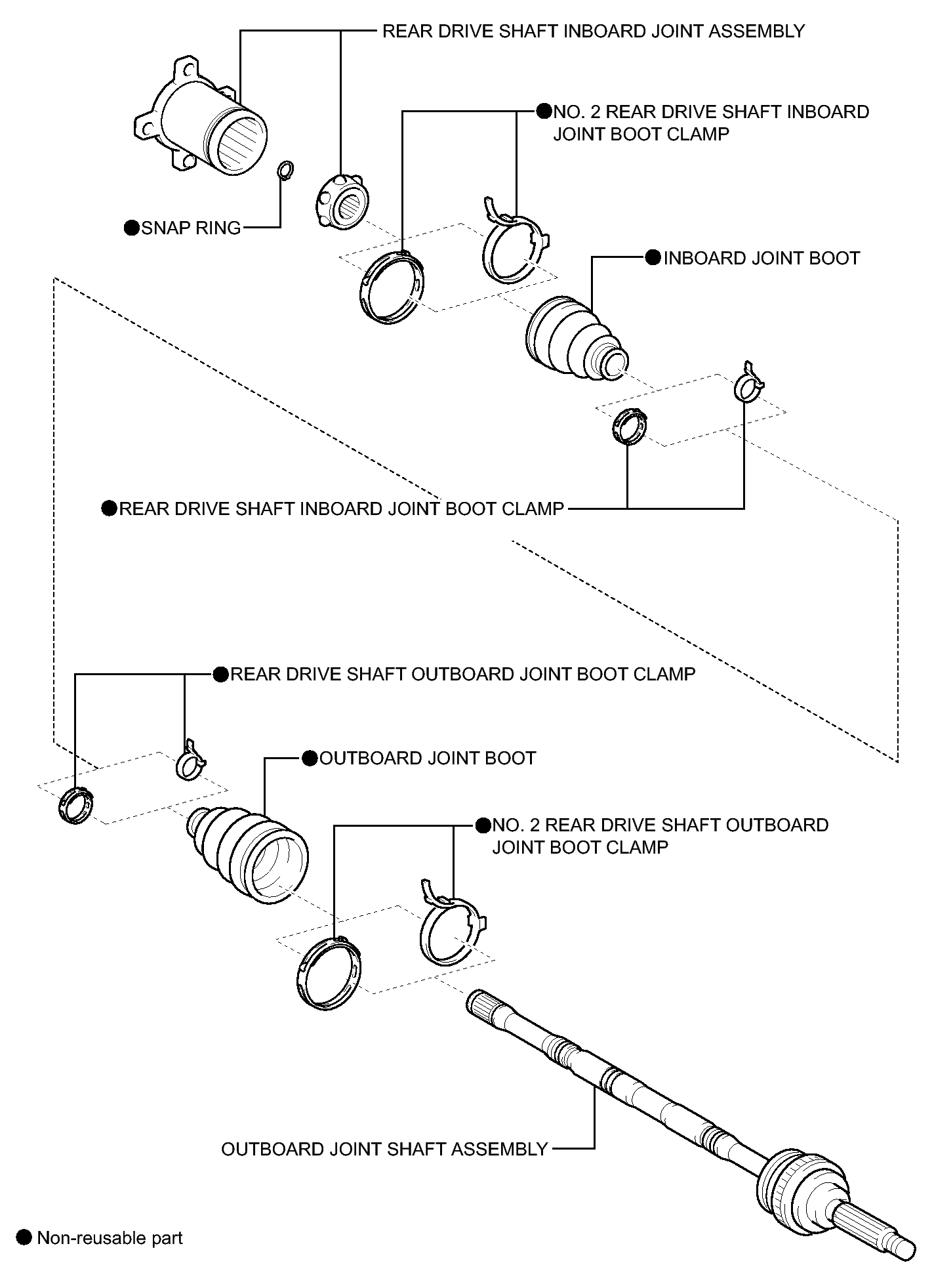

Fig 1: Identifying Rear Drive Shaft Assembly Replacement Components (2 Of 2)
GTY167649Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
