Front Drive Shaft Assembly: Components: Illustration

Fig 1: Identifying Front Drive Shaft Assembly Replacement Components (1 of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

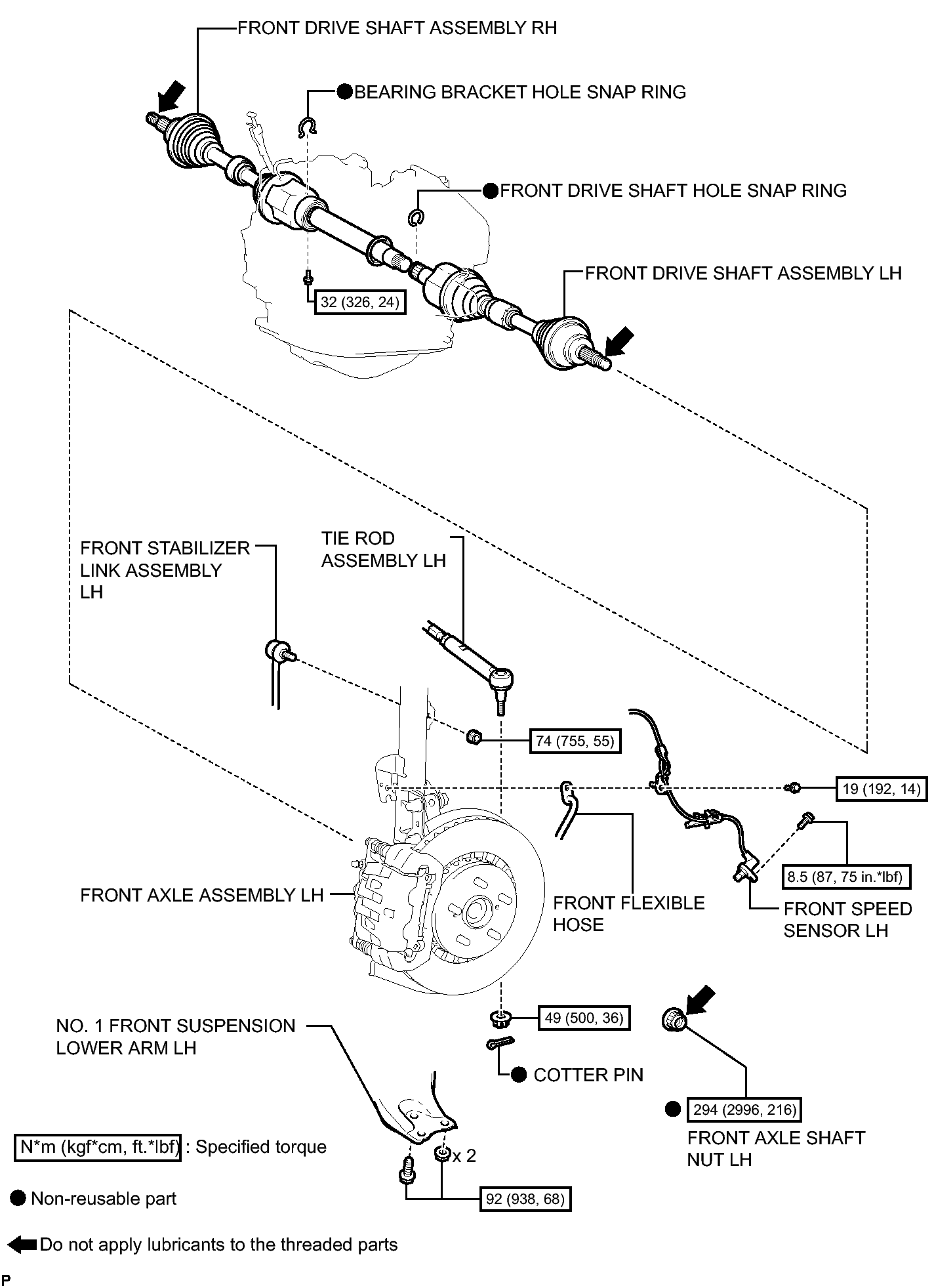

Fig 1: Identifying Front Drive Shaft Assembly Replacement Components With Torque Specifications (2 of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

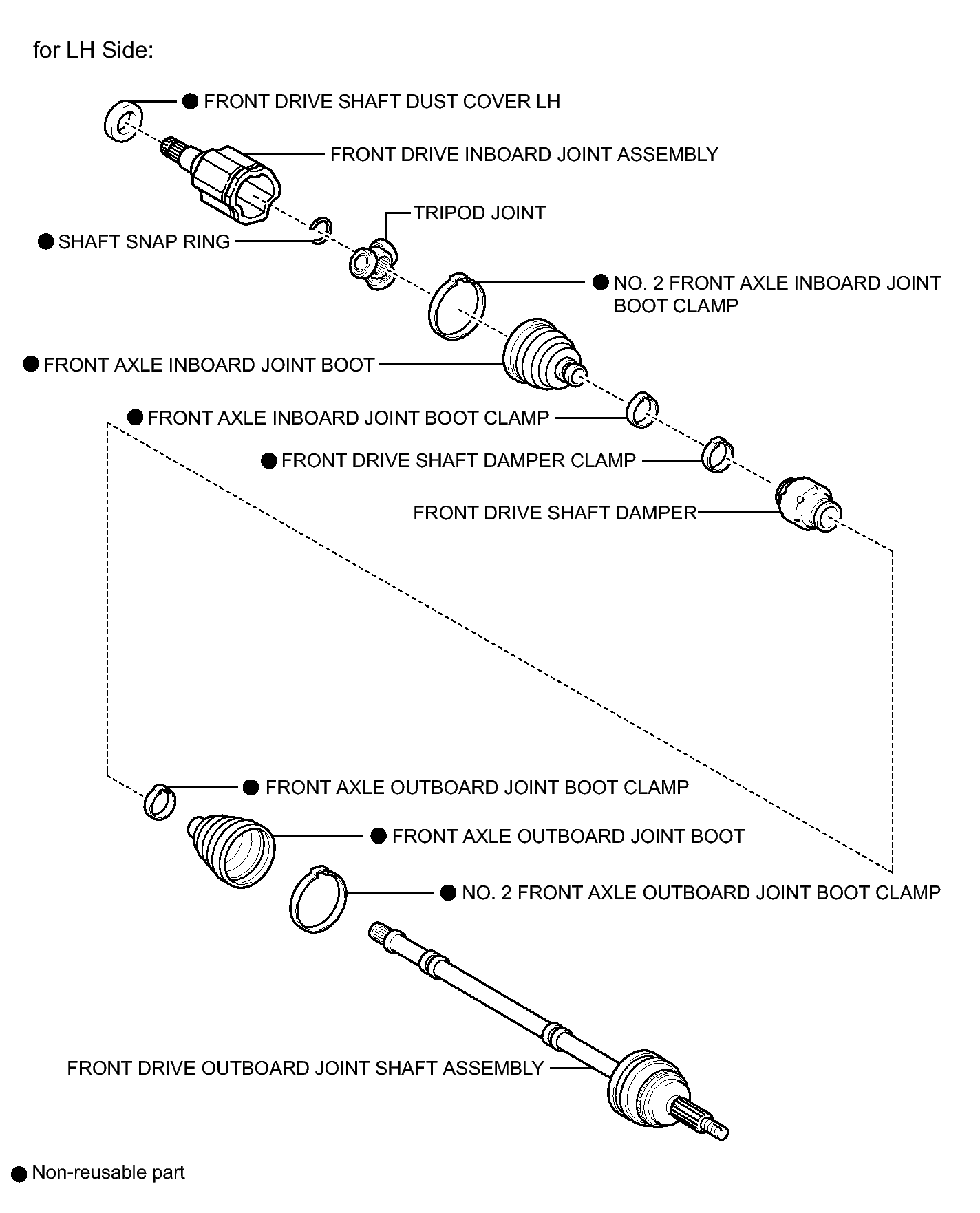

Fig 1: Identifying Front Drive Shaft Components (3 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

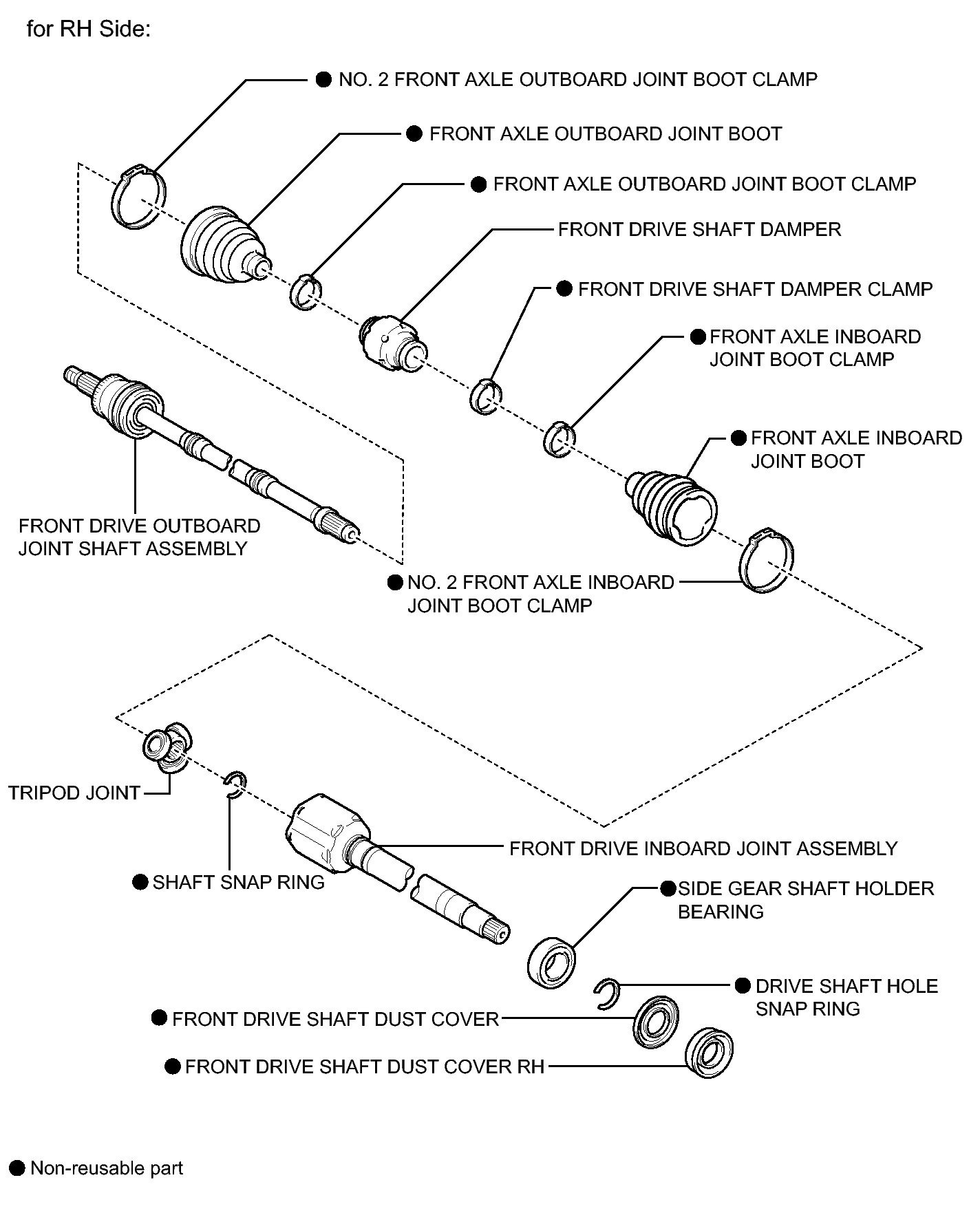

Fig 1: Identifying Front Drive Shaft Components (4 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
