Parking Brake Pedal: Reassembly: Reassembly

INSTALL PARKING PEDAL PAD
1. Install the parking pedal pad to the parking brake pedal.

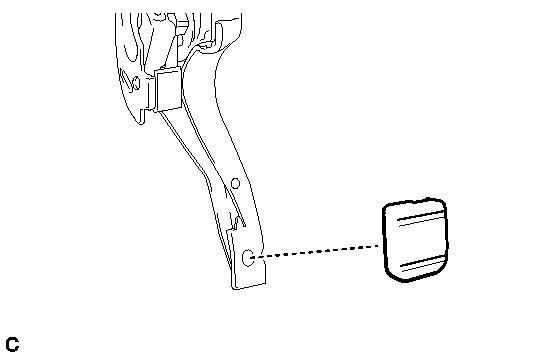

  Fig 1: Identifying Parking Pedal Pad
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL PARKING BRAKE SWITCH ASSEMBLY
1. Install the parking brake switch assembly to the parking brake pedal with the screw.

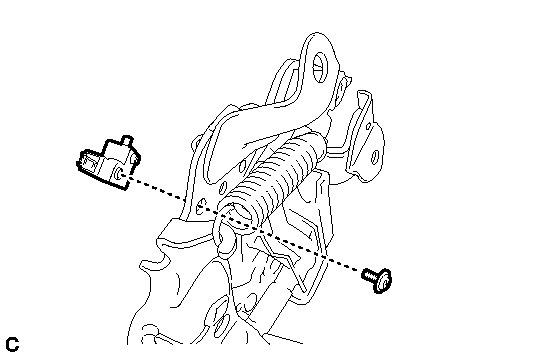

  Fig 2: Identifying Parking Brake Switch Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 0.9 N*m (9 kgf*cm, 8 in.*lbf)
INSTALL NO. 1 PARKING BRAKE CABLE ASSEMBLY See step 10
