Front Console Box: Removal: Removal

  1. REMOVE CENTER INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY (w/o Smart Key System)  . Refer to REMOVAL - Step 15
  2. REMOVE CENTER INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY (w/ Smart Key System)  . Refer to REMOVAL - Step 16
  3. REMOVE UPPER CONSOLE PANEL SUB-ASSEMBLY  . Refer to REMOVAL - Step 28
  4. REMOVE LOWER REAR CONSOLE BOX
    1. Remove the lower rear console box.
  5. REMOVE CONSOLE BOX ASSEMBLY
    1. Remove the 4 bolts and 2 screws.
      Fig 1: Identifying Console Box Assembly With Bolts And Screws (W/ Rear Air Conditioning System)
      GTY170852Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the connector.

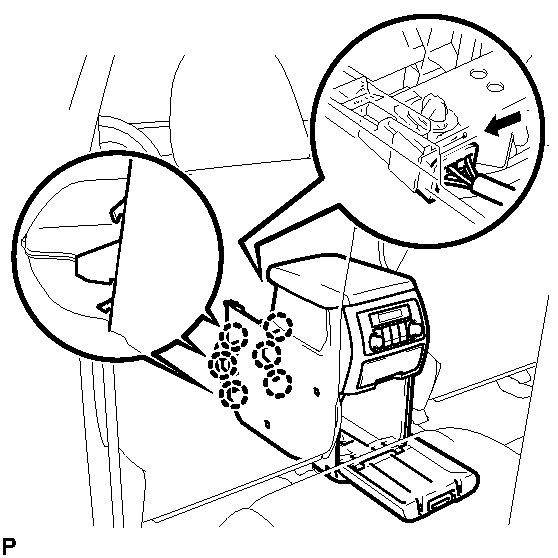

      Fig 2: Identifying Console Box Assembly Claws (With Rear Air Conditioning System)
      GTY172344Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disengage the 6 claws, and remove the console box assembly.
