Power Back Door Warning Buzzer: Removal: Removal

  1. REMOVE BACK WINDOW UPPER TRIM PANEL ASSEMBLY  See step  2
  2. REMOVE BACK DOOR SERVICE HOLE COVER LH  See step  4
  3. REMOVE BACK DOOR STAY BOLT  See step  5
  4. REMOVE BACK DOOR TRIM COVER LH  See step  6
  5. REMOVE BACK DOOR TRIM COVER RH  See step  7
  6. REMOVE BACK DOOR LOCK COVER  See step  8
  7. REMOVE ASSIST STRAP HOLE COVER  See step  9
  8. REMOVE ASSIST STRAP ASSEMBLY  See step  10
  9. REMOVE BACK DOOR TRIM PANEL ASSEMBLY  See step  11
  10. REMOVE POWER BACK DOOR WARNING BUZZER
    1. Disconnect the connector.

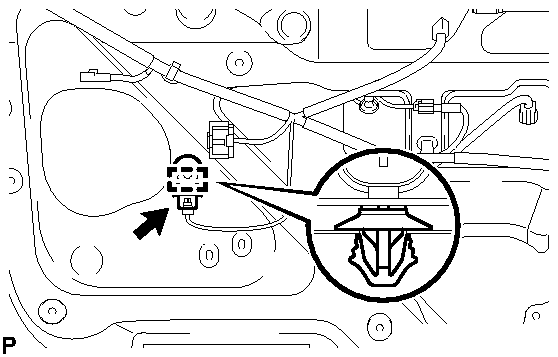

      Fig 1: Locating Power Back Door Warning Buzzer Connector
      GTY188020Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the clamp and remove the power back door warning buzzer.
