Toyota
>>
2011
>>
Highlander Hybrid Limited
>>
Repair and Diagnosis
>>
Accessories & Equipment
>>
Window Motors & Regulators
>>
Windshield / WINDOWGLASS (Diagnostics & Symptom Tests)
>>
Glass Hatch Opener System
>>
Symptom Tests
>>
Glass Hatch Opener System does not Operate
>>
Wiring Diagram
Glass Hatch Opener System does not Operate: Wiring Diagram

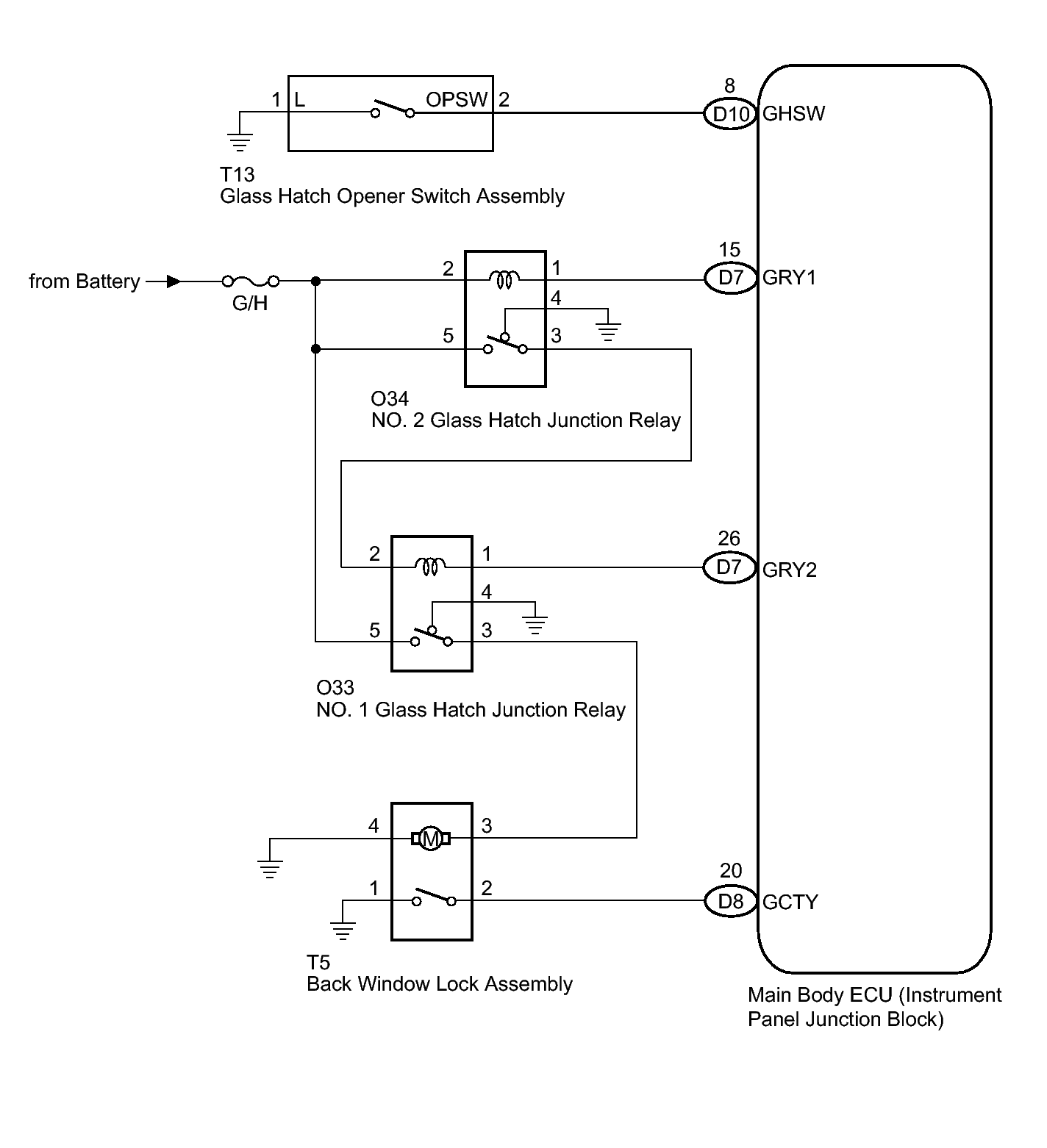

Fig 1: Identifying Glass Hatch Opener System Does Not Operate - Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
