Seat Heater Switch: Removal: Removal

  1. REMOVE CENTER INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY (w/o Smart Key System)  . Refer to REMOVAL - Step 15
  2. REMOVE CENTER INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY (w/ Smart Key System)  . Refer to REMOVAL - Step 16
  3. REMOVE SEAT HEATER SWITCH
    1. Disengage the 2 claws and remove the seat heater switch.

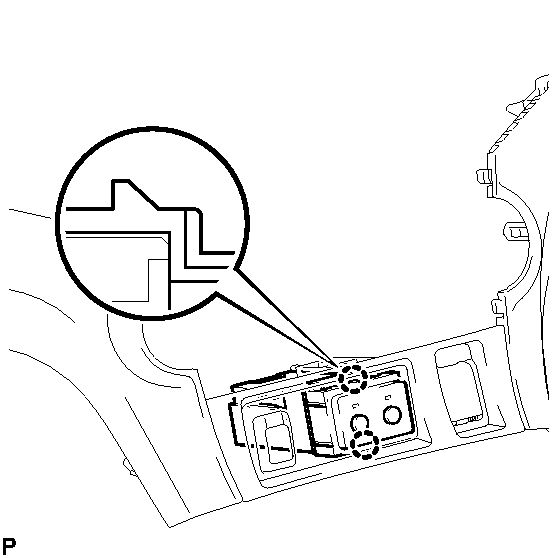

      Fig 1: Identifying Seat Heater Switch Claws
      GTY172696Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
