REAR NO. 1 SEAT ASSEMBLY (for RH Side): Reassembly: Reassembly

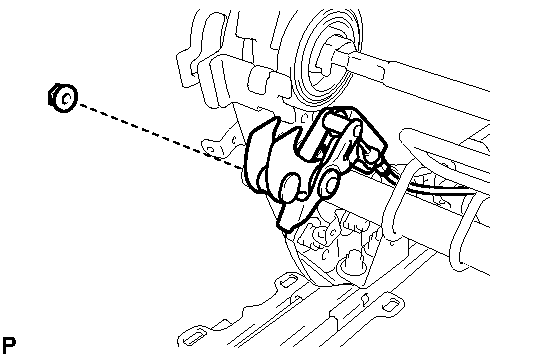

INSTALL REAR SEATBACK STOPPER SUB-ASSEMBLY
1. Temporarily install the rear seatback stopper sub-assembly with the nut.

  Fig 1: Identifying Rear Seatback Stopper Sub-Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 18 N*m (184 kgf*cm, 13 ft.*lbf)

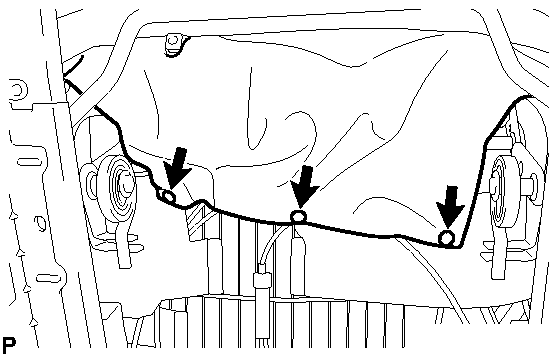

2. Connect the 4 cable clamps.

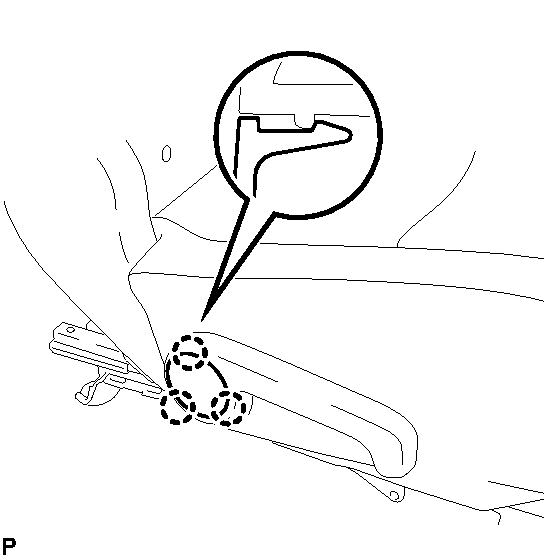

  Fig 2: Locating Cable Clamps
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

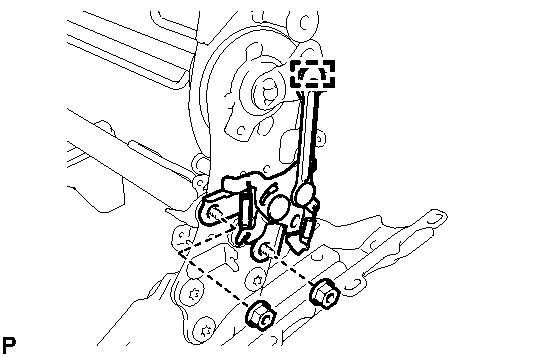

INSTALL REAR SEATBACK LOCK CONTROL LEVER SUB-ASSEMBLY
1. Engage the guide.

  Fig 3: Identifying Rear Seatback Lock Control Lever Sub-Assembly And Nuts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the rear seatback lock control lever sub-assembly with the 2 nuts.
  Torque: 18 N*m (184 kgf*cm, 13 ft.*lbf)
INSTALL REAR SEAT CUSHION SPRING ASSEMBLY
1. Using a T45 "TORX" socket, tighten the 4 "TORX" bolts, bushes and install the rear seat cushion spring assembly.

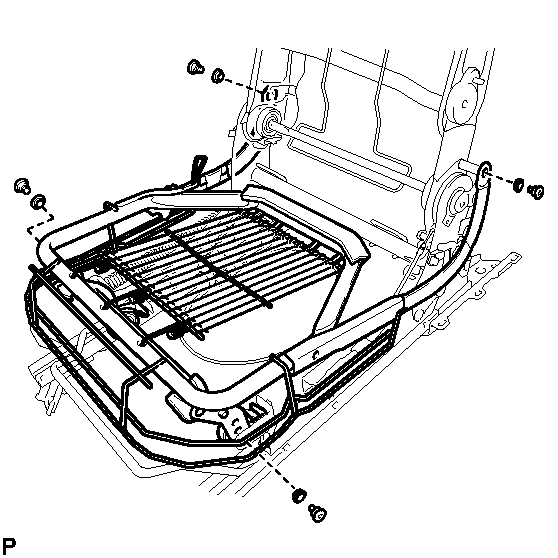

  Fig 4: Identifying Rear Seat Cushion Spring Assembly, Bolts And Bushes
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 21 N*m (214 kgf*cm, 16 ft.*lbf)

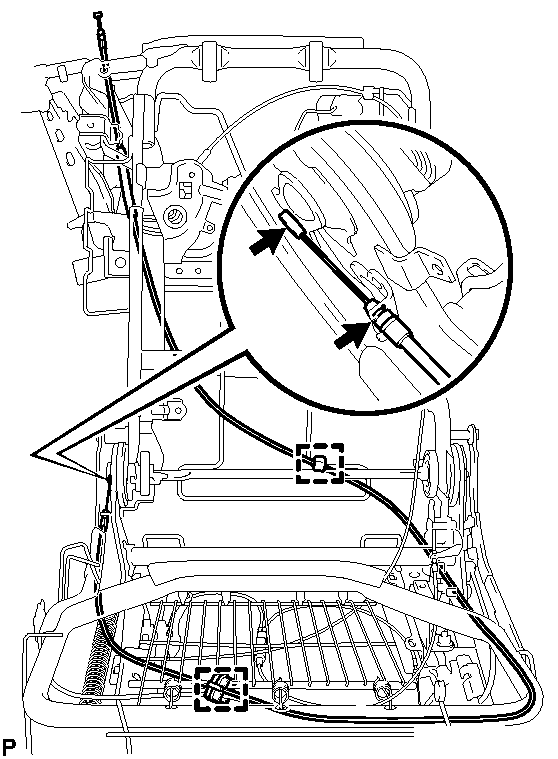

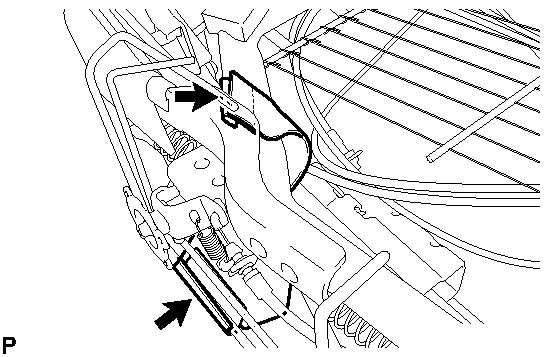

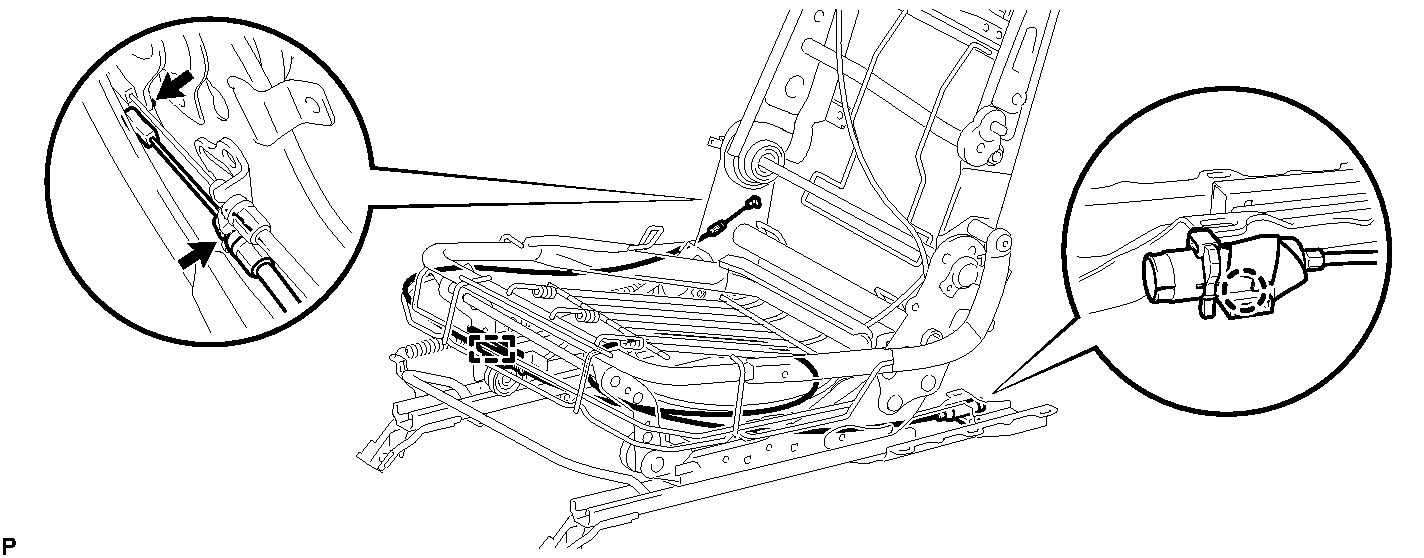

INSTALL REAR SEAT RECLINING CONTROL CABLE SUB-ASSEMBLY
1. Connect the 6 cable clamps to install the No. 1 rear seat reclining control cable sub-assembly.

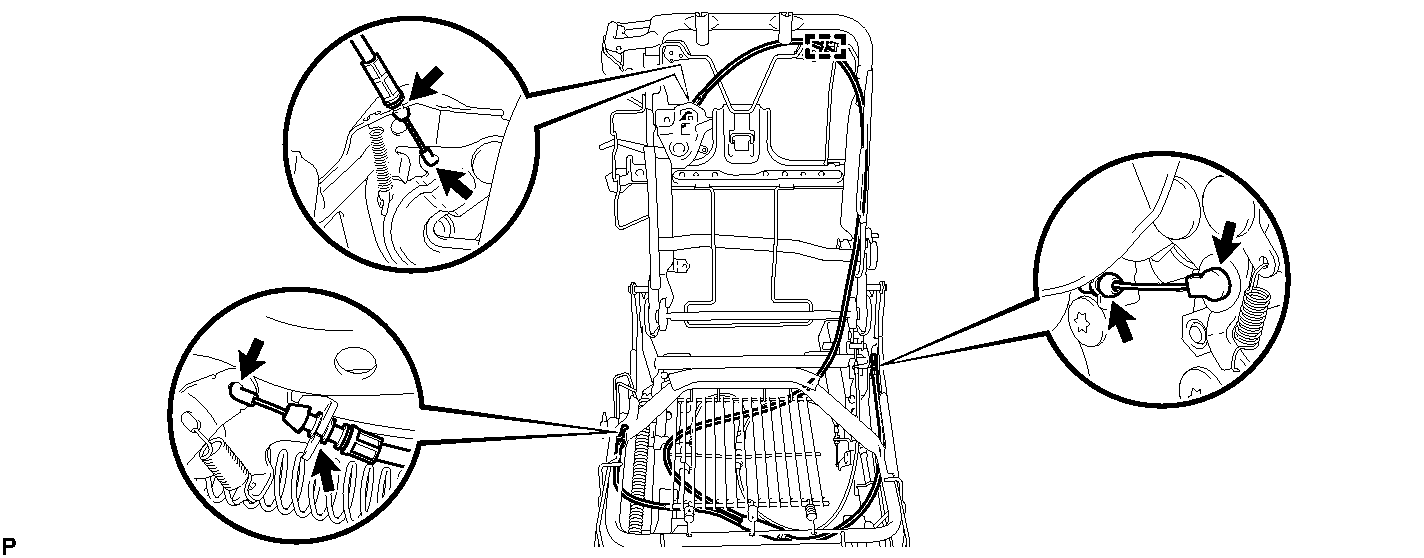

  Fig 5: Identifying Rear Seat Reclining Control Cable Sub-Assembly (w/ Rear No. 2 Seat)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the clamp.

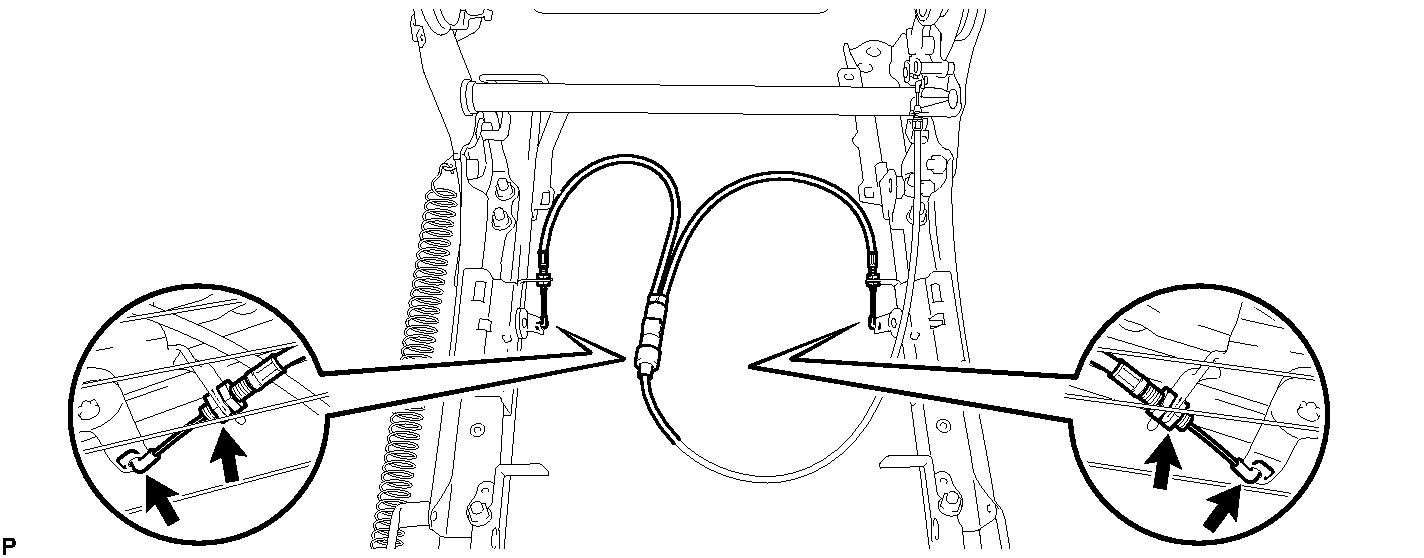

INSTALL SEAT TRACK CONTROL CABLE ASSEMBLY
1. Connect the 2 cable clamps to install the seat track control cable assembly.

  Fig 6: Identifying Seat Track Control Cable Assembly And Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the 2 clamps.

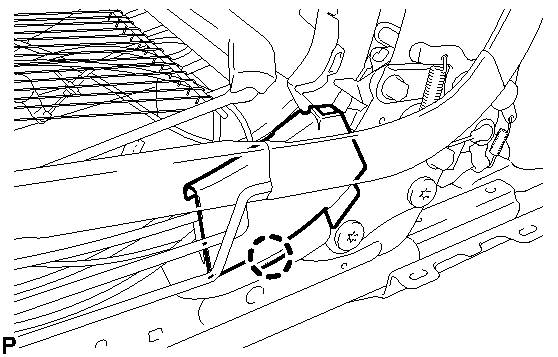

INSTALL REAR SEAT HOOK
1. Engage the claw to install the rear seat hook to the seat adjuster control cable assembly.

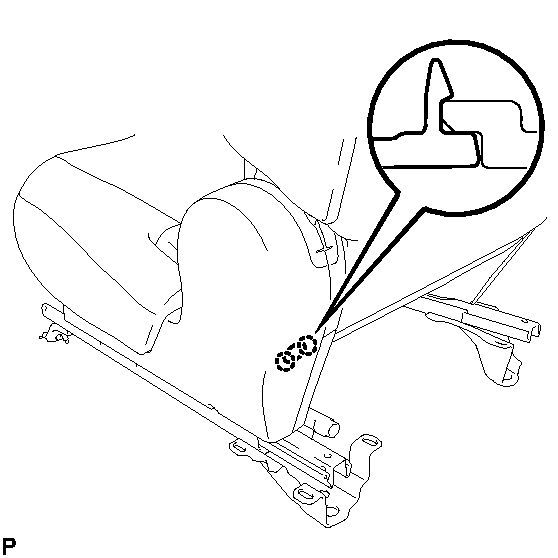

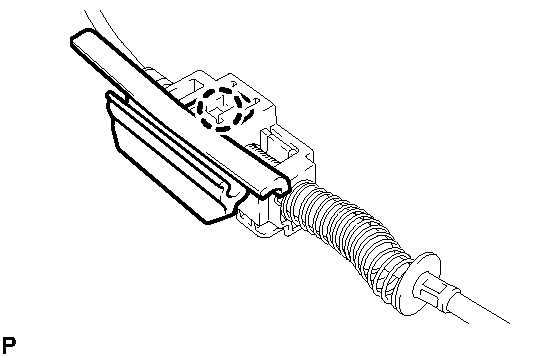

  Fig 7: Identifying Rear Seat Hook And Claw
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL SEAT ADJUSTER CONTROL CABLE ASSEMBLY
1. Engage the claw.

  Fig 8: Identifying Seat Adjuster Control Cable Assembly With Rear Seat Hook
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Connect the 2 cable clamps to install the seat adjuster control cable assembly.
3. Engage the hook to install the rear seat hook to the rear seat cushion spring assembly.

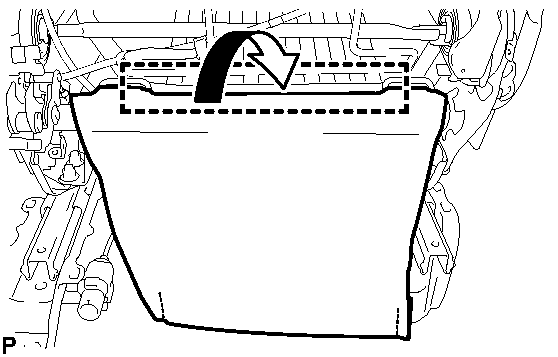

INSTALL NO. 1 REAR SEAT COVER
1. Engage the hook to install the No. 1 rear seat cover.

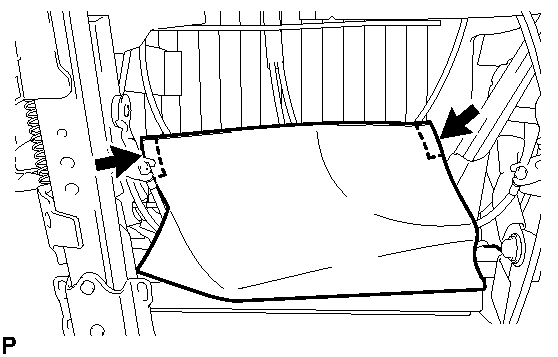

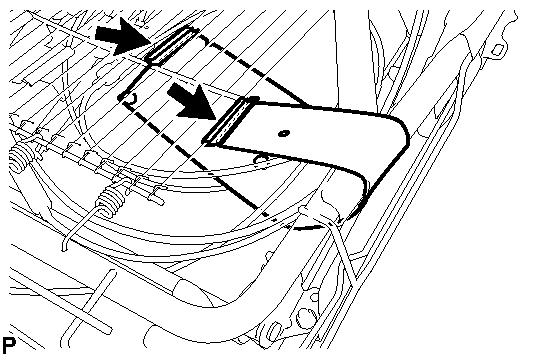

  Fig 9: Installing No. 1 Rear Seat Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

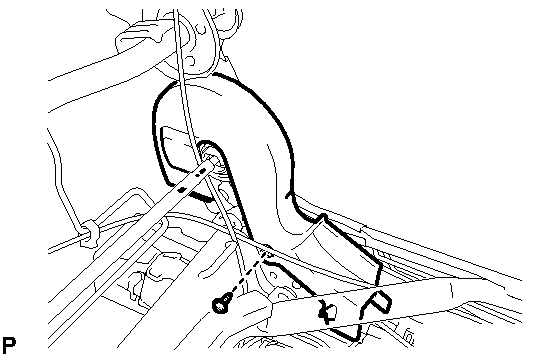

INSTALL NO. 1 REAR SEAT RECLINING COVER
1. Engage the 2 guides.

  Fig 10: Identifying No. 1 Rear Seat Reclining Cover And Screw
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the rear seat reclining cover with the screw.
INSTALL RECLINING ADJUSTER INSIDE COVER RH
1. Engage the guide.

  Fig 11: Identifying Reclining Adjuster Inside Cover RH And Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Engage the claw to install the reclining adjuster inside cover RH.

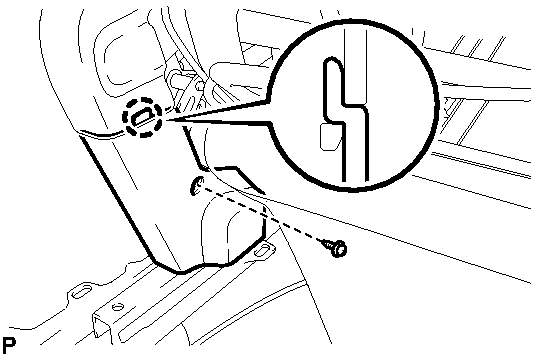

INSTALL REAR SEATBACK INNER COVER
1. Engage the claw.

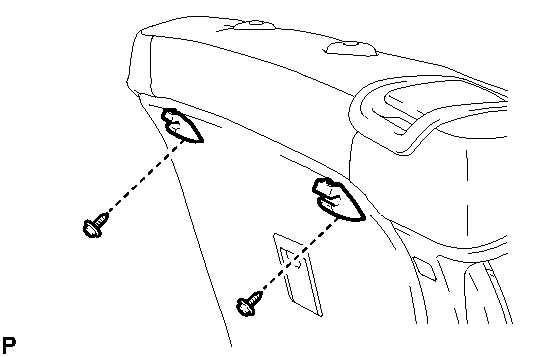

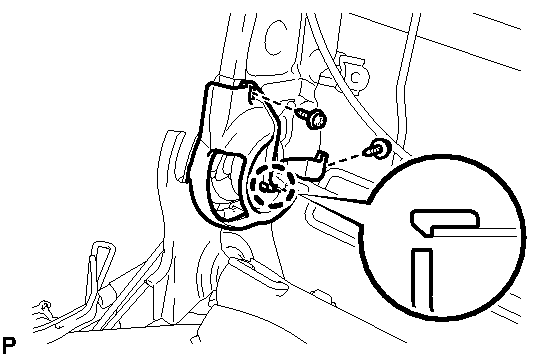

  Fig 12: Identifying Rear Seatback Inner Cover And Screw
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the rear seatback inner cover with the 2 screws.

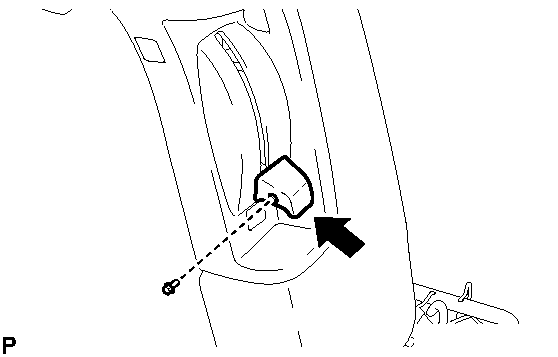

INSTALL REAR SEAT RECLINING INNER FRONT COVER
1. Install the rear seat reclining inner front cover with the screw.

  Fig 13: Identifying Rear Seat Reclining Inner Front Cover And Screw
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

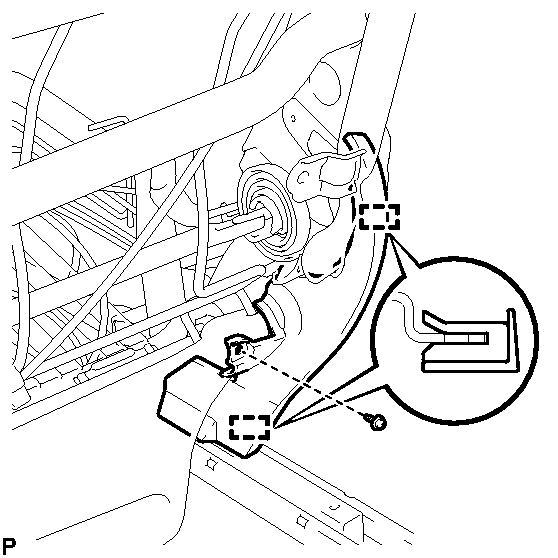

INSTALL REAR SEAT RECLINING INNER REAR COVER
1. Engage the claw.

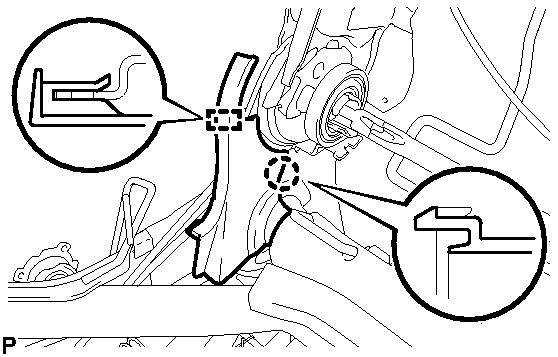

  Fig 14: Identifying Rear Seat Reclining Inner Rear Cover And Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the rear seat reclining inner rear cover with the screw.
INSTALL REAR SEAT RECLINING INNER PROTECTOR
1. Engage the claw to install the rear seat reclining inner protector.

  Fig 15: Identifying Rear Seat Reclining Inner Protector And Claw
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

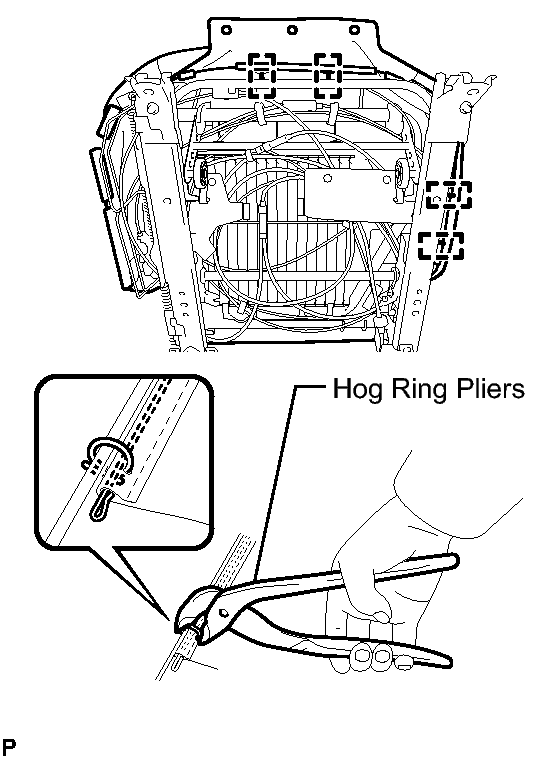

INSTALL SEPARATE TYPE REAR NO. 1 SEATBACK COVER

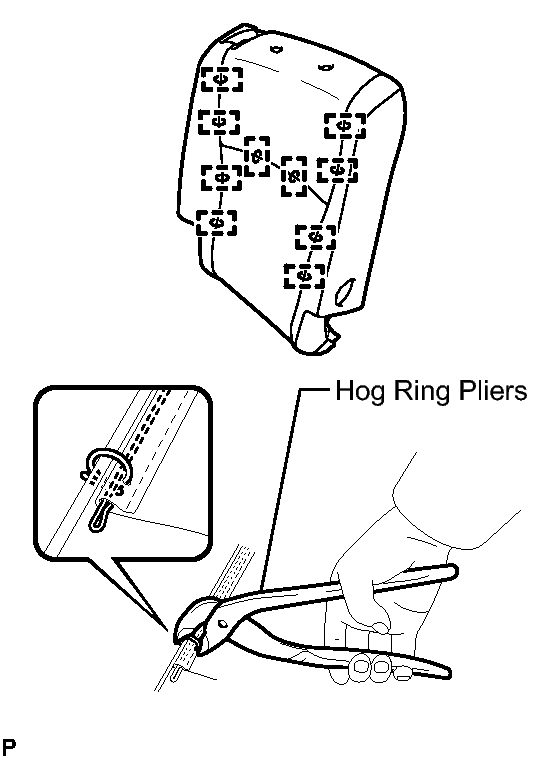

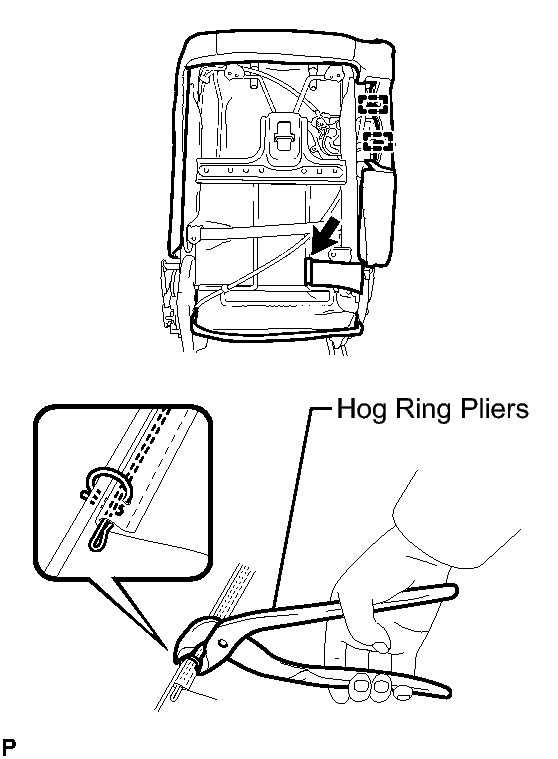

1. Using hog ring pliers, install the separate type rear No. 1 seatback cover with 10 new hog rings.

  Fig 16: Installing Separate Type Rear No. 1 Seatback Cover With Hog Rings
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  NOTE:
  - Be careful not to damage the cover.
  - When installing the hog rings, take care to minimize wrinkles as much as possible.
INSTALL REAR NO. 1 SEATBACK COVER WITH PAD
1. Using hog ring pliers, install 2 new hog rings.

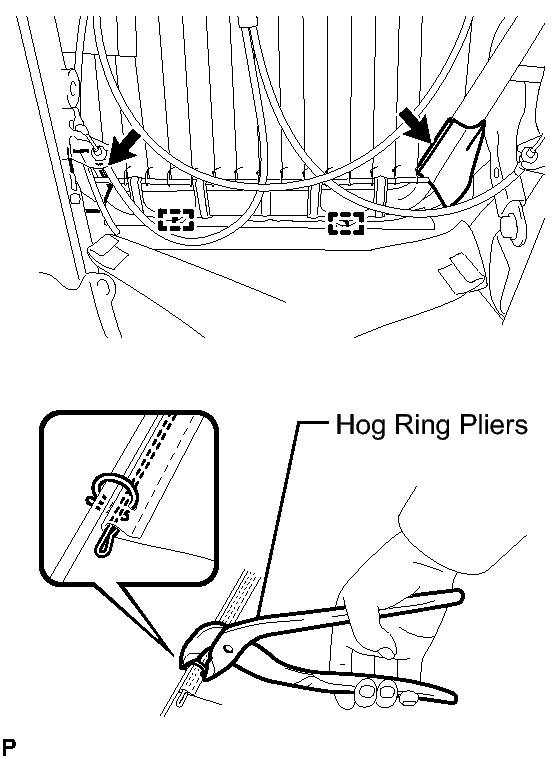

  Fig 17: Installing Hog Rings
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  NOTE:
  - Be careful not to damage the cover.
  - When installing the hog rings, take care to minimize wrinkles as much as possible.
2. Engage the hook to install the rear No. 1 seatback cover with pad.

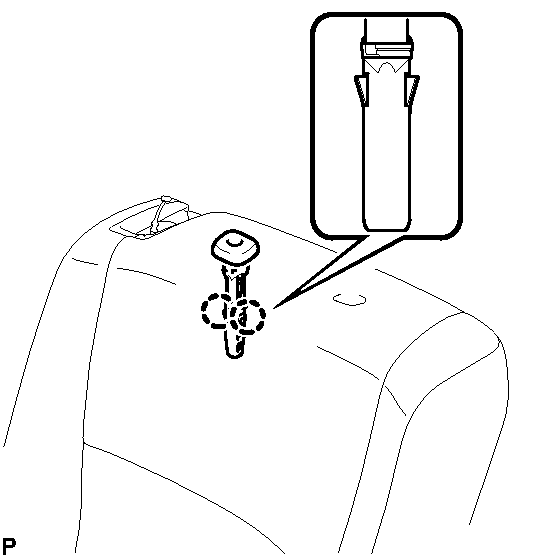

INSTALL REAR NO. 1 SEAT HEADREST SUPPORT ASSEMBLY RH
1. Engage the 2 claws to install the rear No. 1 seat headrest support assembly RH.

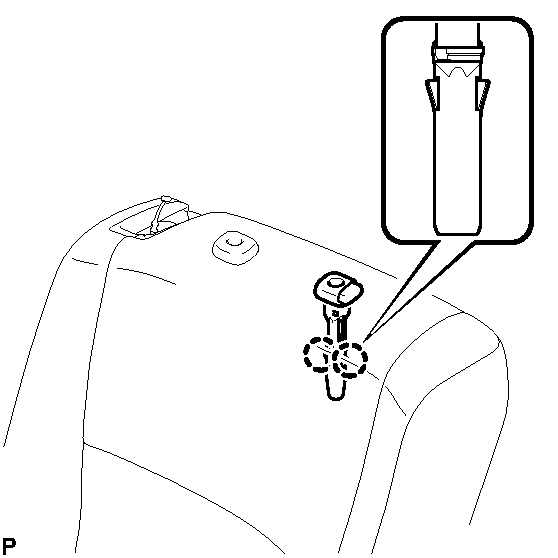

  Fig 18: Identifying Rear No. 1 Seat Headrest Support Assembly RH Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REAR NO. 1 SEAT HEADREST SUPPORT ASSEMBLY LH
1. Engage the 2 claws to install the rear No. 1 seat headrest support assembly LH.

  Fig 19: Identifying Rear No. 1 Seat Headrest Support Assembly LH Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

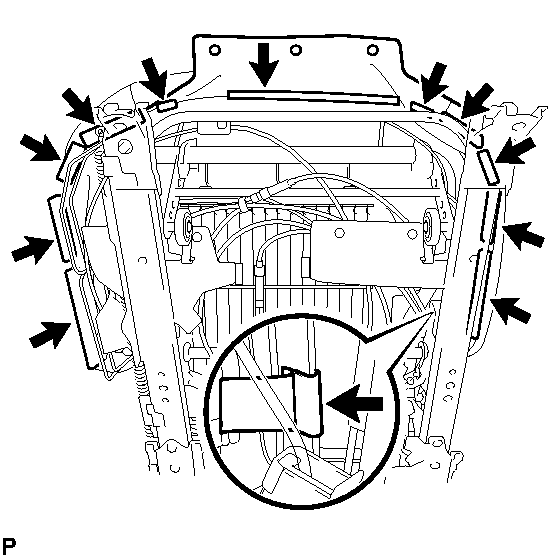

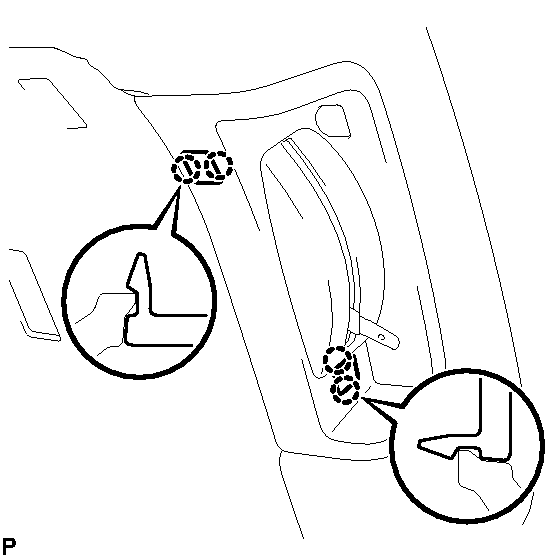

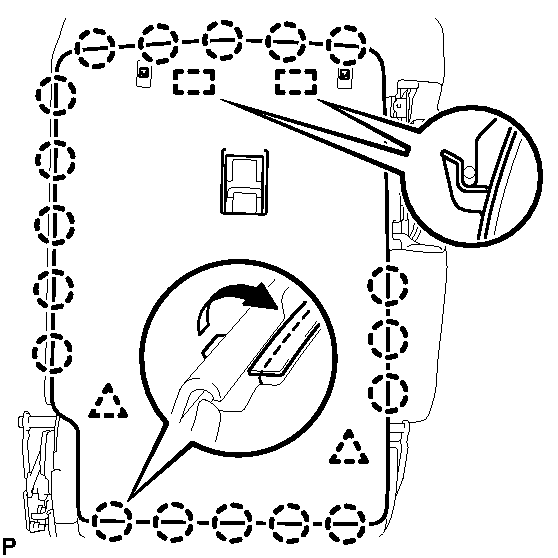

INSTALL REAR SEATBACK BOARD CARPET ASSEMBLY
1. Engage the 2 guides.

  Fig 20: Identifying Rear Seatback Board Carpet Assembly Claws, Clips & Guides With Rear No. 2 Seat
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Engage the 2 clips.
3. Engage the 18 claws to install the rear seatback board carpet assembly as shown in the illustration.
INSTALL REAR SEAT LOCK CONTROL LEVER SUB-ASSEMBLY
1. Connect the rear seat lock control cable as shown in the illustration.

  Fig 21: Connecting Rear Seat Lock Control Cable
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Engage the guide.

  Fig 22: Identifying Rear Seat Lock Control Lever Sub-Assembly Screws And Guide
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Install the rear seat lock control lever sub-assembly with the 2 screws.
INSTALL REAR SEAT LOCK STRIKER COVER
1. Engage the guide.

  Fig 23: Identifying Rear Seat Lock Striker Cover Claw And Guide
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Engage the claw to install the rear seat lock striker cover.
INSTALL NO. 1 REAR SEAT BEZEL COVER

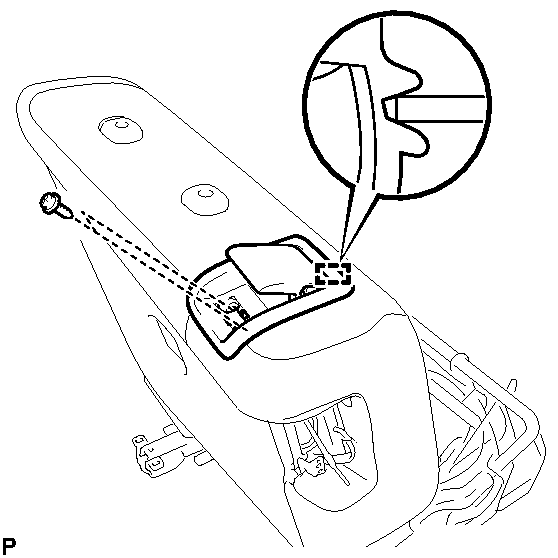

1. Install the No. 1 rear seat bezel cover with the 3 screws.

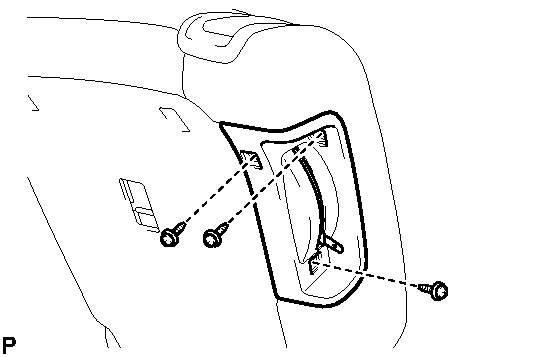

  Fig 24: Identifying No. 1 Rear Seat Bezel Cover Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

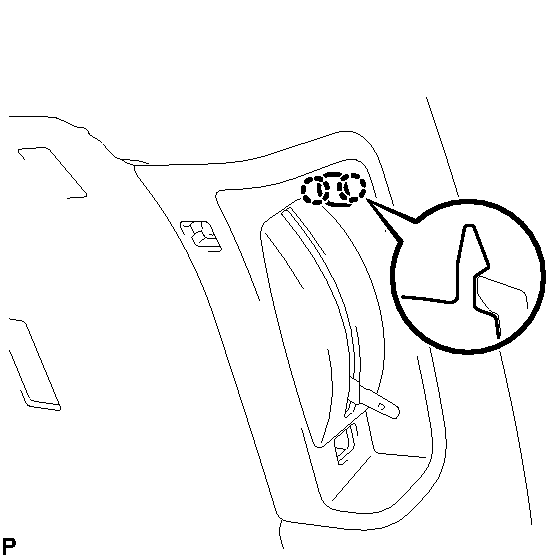

INSTALL NO. 1 REAR SEATBACK LOCK STRIKER COVER
1. Engage the 2 claws to install the No. 1 rear seatback lock striker cover.

  Fig 25: Identifying Claws And Cap
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REAR SEAT LOCK STRIKER COVER CAP
1. Engage the 4 claws to install the 2 rear seat lock striker cover caps.

  Fig 26: Identifying Claws And Cap
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL RECLINING REMOTE CONTROL LEVER KNOB

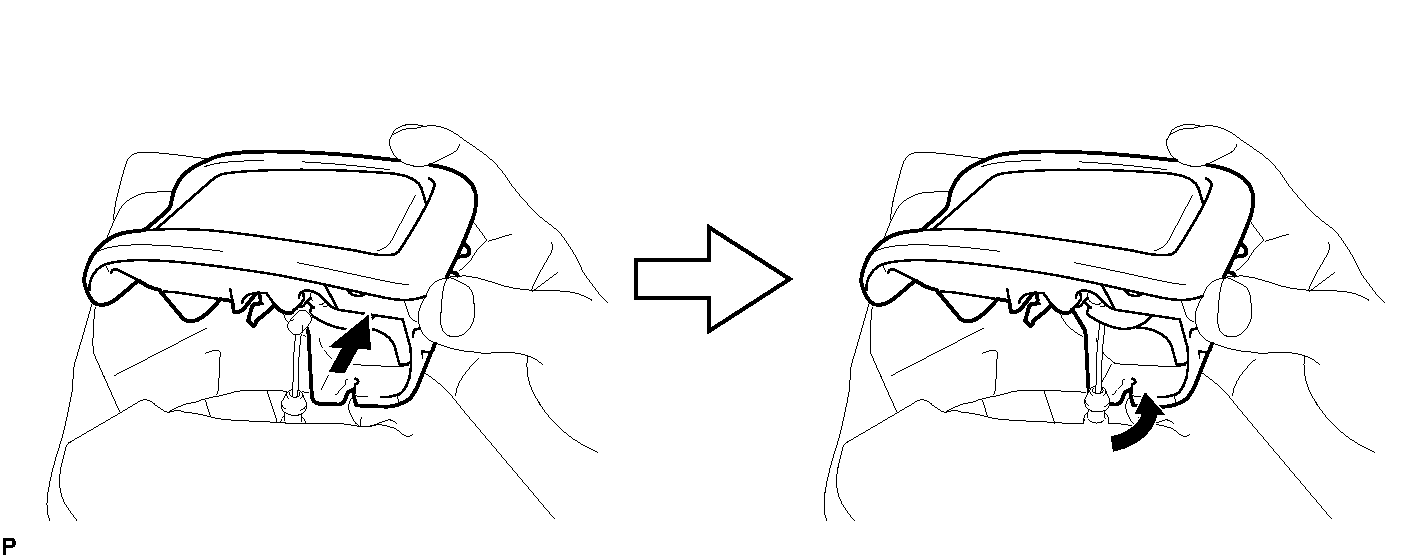

1. Install the remote control lever knob with the screw as shown in the illustration.

  Fig 27: Locating Remote Control Lever Knob With Screw
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REAR SEATBACK COVER
1. Engage the 4 claws to install the rear seatback cover.

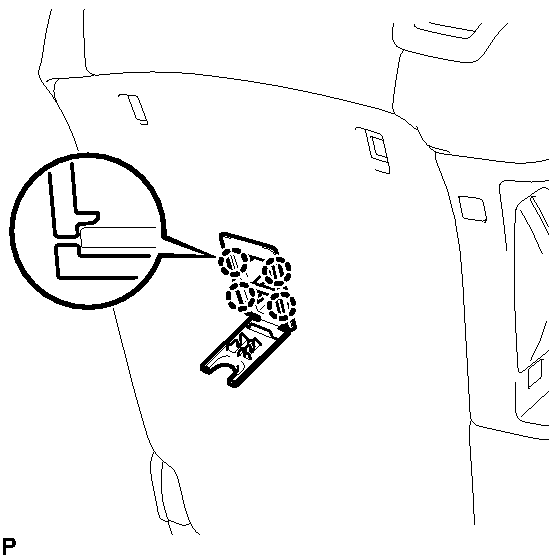

  Fig 28: Identifying Rear Seatback Cover And Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL TONNEAU COVER HOOK HOLDER
1. Install the 2 tonneau cover hook holders with the 2 screws.

  Fig 29: Identifying Tonneau Cover Hook Holders And Screw
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

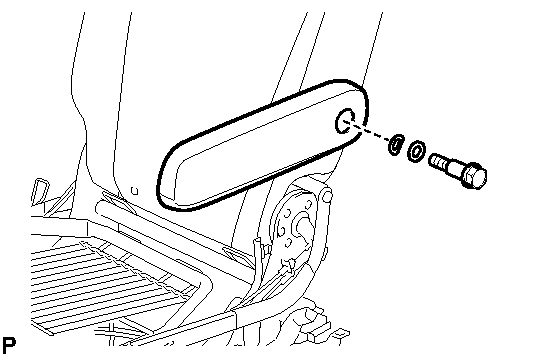

INSTALL REAR SEAT ARMREST ASSEMBLY
1. Install the rear seat armrest assembly with the bolt, washer and wave washer.

  Fig 30: Identifying Rear Seat Armrest Assembly Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 33 N*m (337 kgf*cm, 24 ft.*lbf)

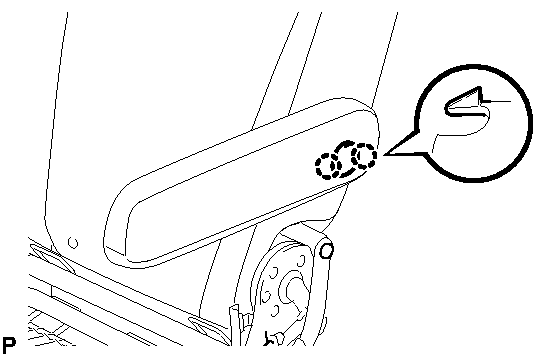

INSTALL NO. 1 REAR SEAT ARMREST CAP
1. Engage the 2 claws to install the No. 1 rear seat armrest cap.

  Fig 31: Identifying No. 1 Rear Seat Armrest Cap Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

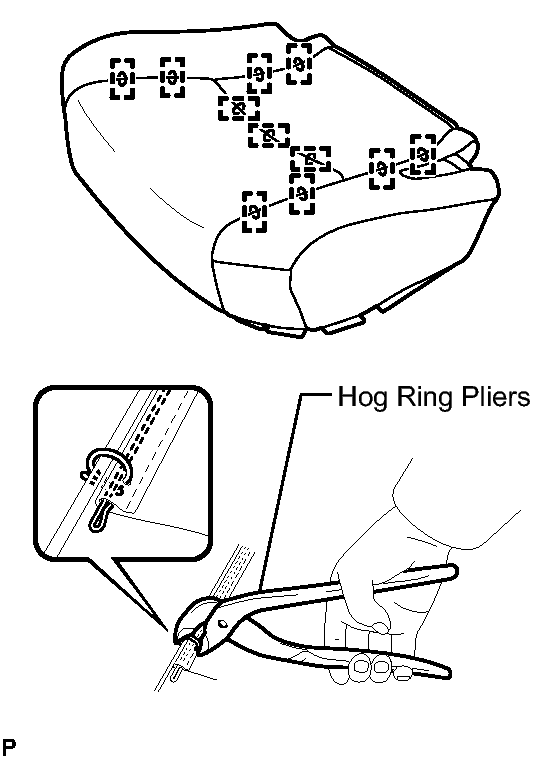

INSTALL SEPARATE TYPE REAR NO. 1 SEAT CUSHION COVER
1. Using hog ring pliers, install the separate type rear No. 1 seat cushion cover with 11 new hog rings.

  Fig 32: Installing Separate Type Rear No. 1 Seat Cushion Cover With Hog Rings
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  NOTE:
  - Be careful not to damage the cover.
  - When installing the hog rings, take care to minimize wrinkles as much as possible.
INSTALL NO. 2 REAR SEAT COVER
1. Engage the 2 hooks to install the No. 2 rear seat cover.

  Fig 33: Identifying No. 2 Rear Seat Cover And Hooks
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL NO. 1 REAR SEAT COVER RH
1. Engage the 4 hooks to install the No. 1 rear seat cover RH.

  Fig 34: Identifying No. 1 Rear Seat Cover RH And Hooks
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL NO. 1 REAR SEAT COVER LH
1. Engage the 2 hooks to install the No. 1 rear seat cover LH.

  Fig 35: Identifying No. 1 Rear Seat Cover LH And Hooks
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

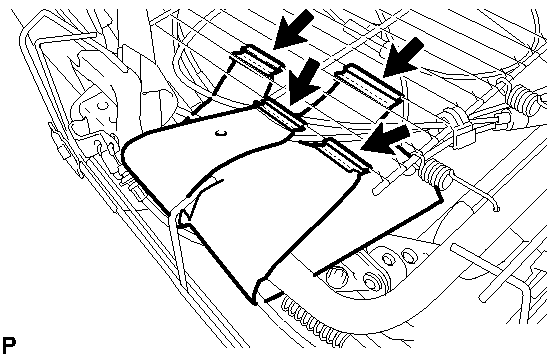

INSTALL REAR NO. 1 SEAT CUSHION COVER WITH PAD
1. Using hog ring pliers, install 4 new hog rings.

  Fig 36: Installing Hog Rings
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  NOTE:
  - Be careful not to damage the cover.
  - When installing the hog rings, take care to minimize wrinkles as much as possible.
2. Engage the 12 hooks.

  Fig 37: Locating Rear No. 1 Seat Cushion Cover Hooks
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Attach the 3 buttons.

  Fig 38: Locating Rear NO. 1 Seat Cushion Cover Buttons
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Using hog ring pliers, install 2 new hog rings.

  Fig 39: Locating Hog Rings
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  NOTE:
  - Be careful not to damage the cover.
  - When installing the hog rings, take care to minimize wrinkles as much as possible.
5. Engage the 2 hooks.
6. Engage the 2 hooks to the rear No. 1 seat cushion cover with pad.

  Fig 40: Locating Rear No. 1 Seat Cushion Cover With Pad And Hooks
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REAR SEAT CUSHION MOULDING RH

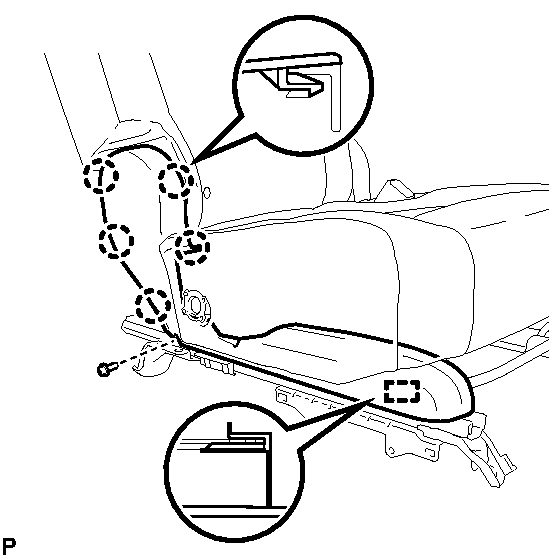

1. Engage the guide.

  Fig 41: Identifying Rear Seat Cushion Moulding RH And Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Engage the 5 claws.
3. Install the rear seat cushion moulding RH with the screw.
INSTALL REAR SEAT CUSHION MOULDING LH

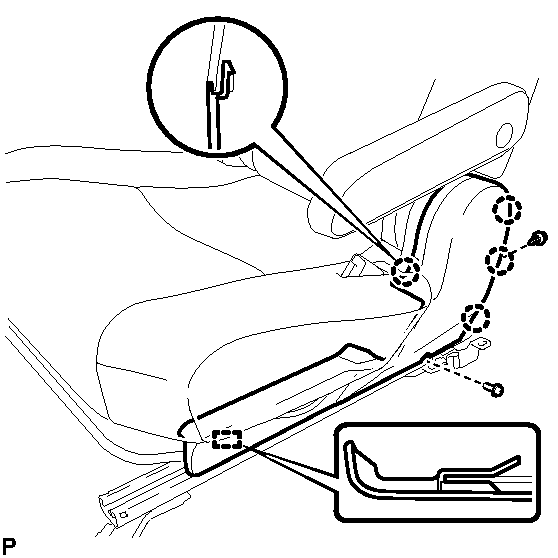

1. Engage the guide.

  Fig 42: Identifying Rear Seat Cushion Moulding LH Screws, Claws And Guide
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Engage the 4 claws.
3. Install the rear seat cushion moulding LH with the 2 screws.

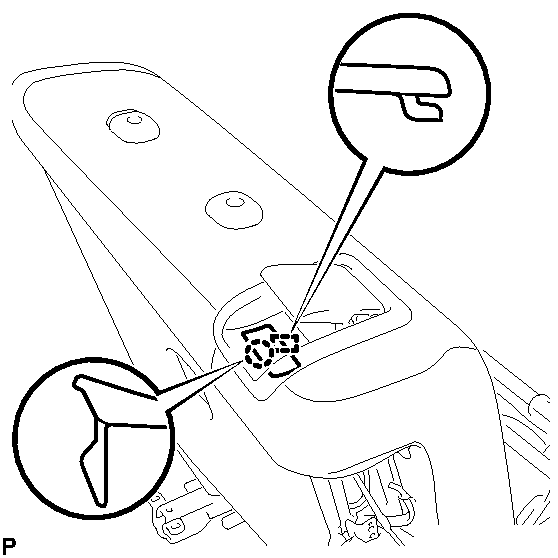

INSTALL SEAT ADJUSTER COVER CAP
1. Engage the 2 claws to install the seat adjuster cover cap.

  Fig 43: Identifying Seat Adjuster Cover Cap Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

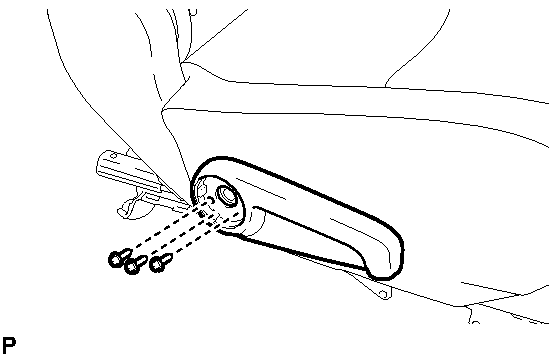

INSTALL NO. 1 RECLINING ADJUSTER RELEASE HANDLE
1. Install the No. 1 reclining adjuster release handle with the 3 screws.

  Fig 44: Identifying No. 1 Reclining Adjuster Release Handle And Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REAR SEAT RECLINING UPPER COVER
1. Engage the 3 claws to install the rear seat reclining upper cover.

  Fig 45: Identifying Rear Seat Reclining Upper Cover Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REAR NO. 1 SEAT INNER BELT ASSEMBLY . Refer to INSTALLATION - Step 1
