USB Audio System Recognition/Play Error: Wiring Diagram

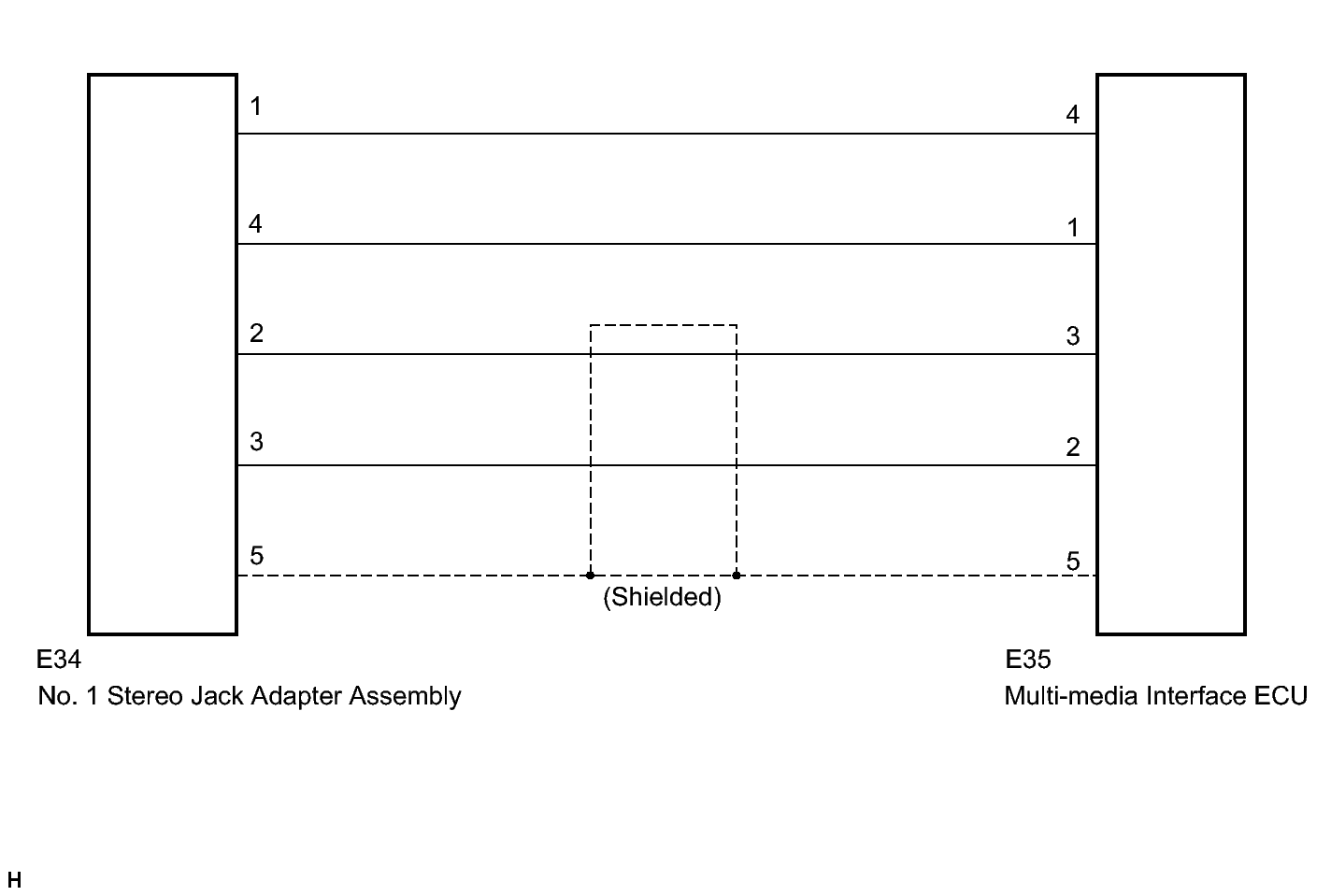

Fig 1: Identifying Stereo Jack Adapter Assembly Wiring Diagram
GTY306644Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
