Steering Pad Switch Circuit: Wiring Diagram

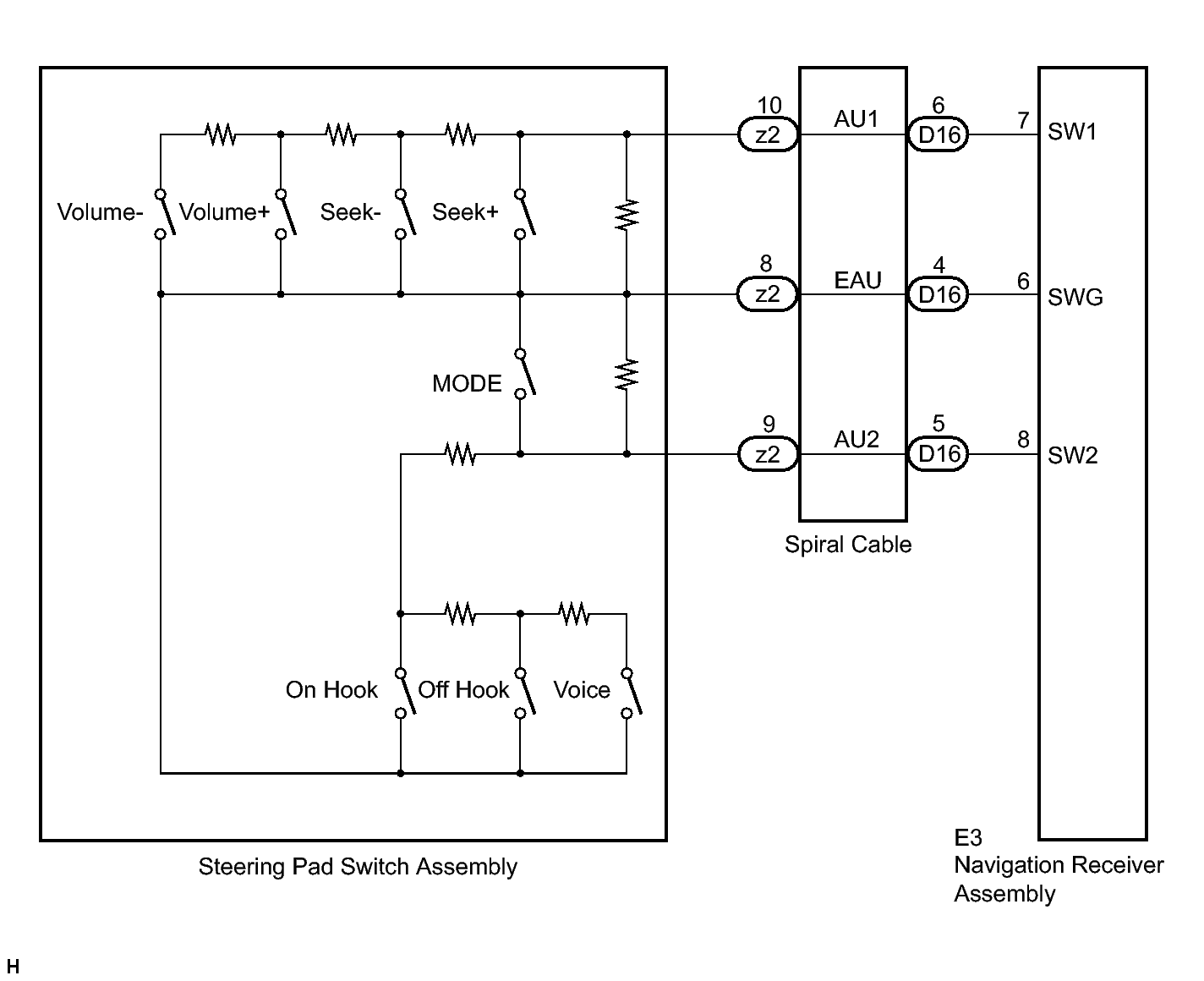

Fig 1: Identifying Steering Pad Switch Circuit Wiring Diagram

GTY296209

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
