Sound Signal Circuit between Navigation Receiver Assembly and Multi-media Interface ECU: Wiring Diagram

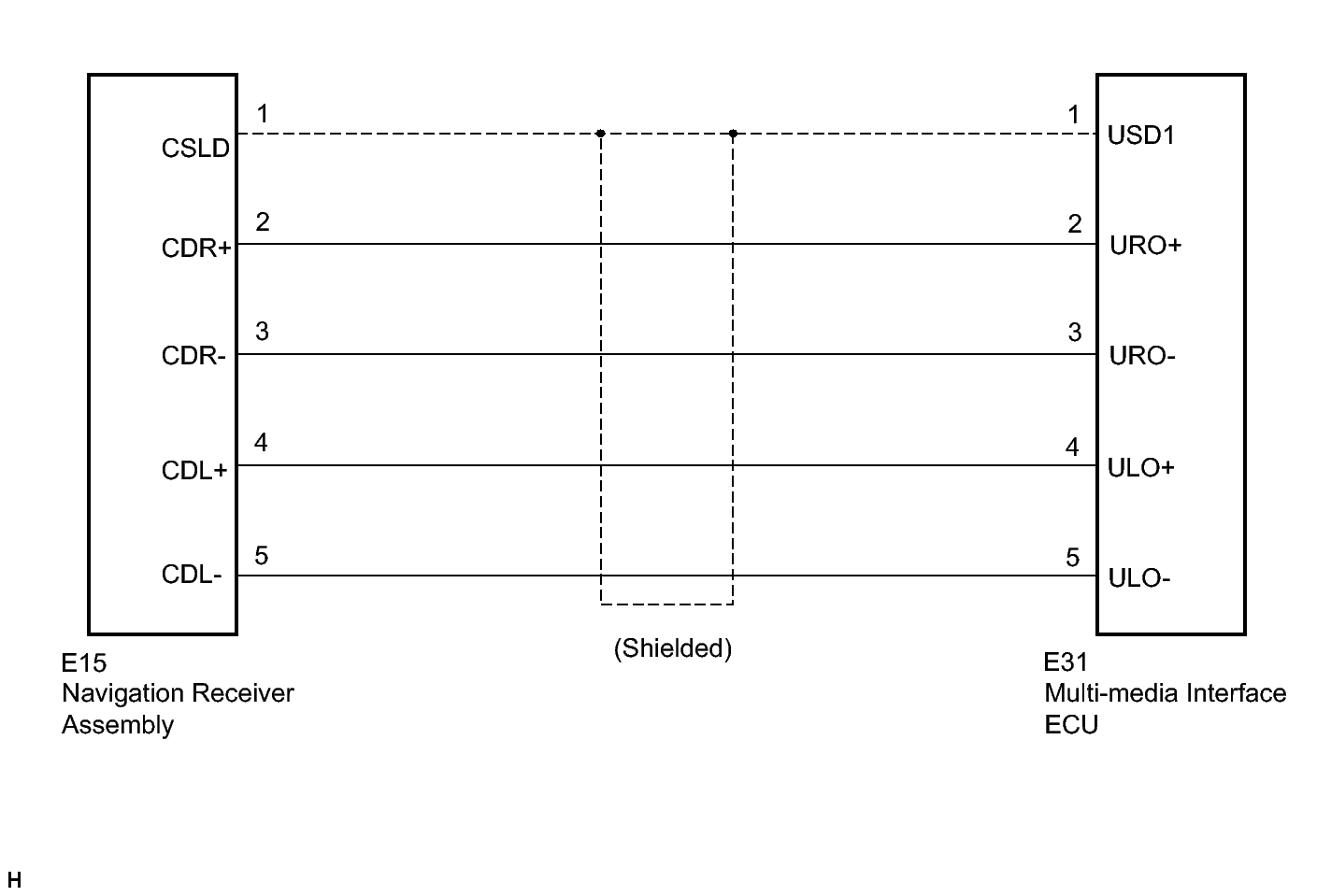

Fig 1: Identifying Multi-Media Interface ECU Wiring Diagram
GTY305474Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
