Display Signal Circuit between Television Display Assembly and Navigation Receiver Assembly: Wiring Diagram

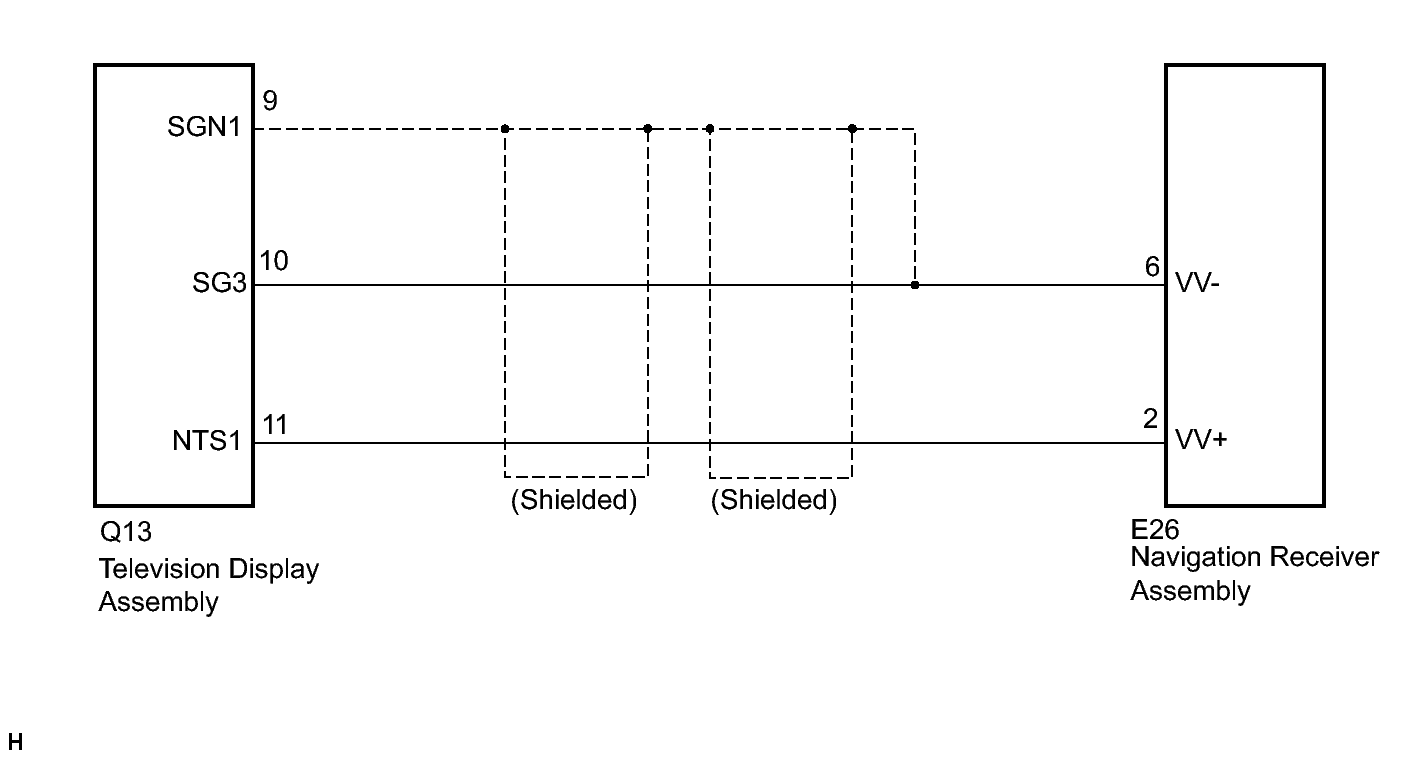

Fig 1: Identifying Display Signal Circuit Wiring Diagram
GTY300700Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
