DTC B1595: No Response from Rear Seat Entertainment System; DTC B15D5: Rear Seat Entertainment System Disconnected: Wiring Diagram

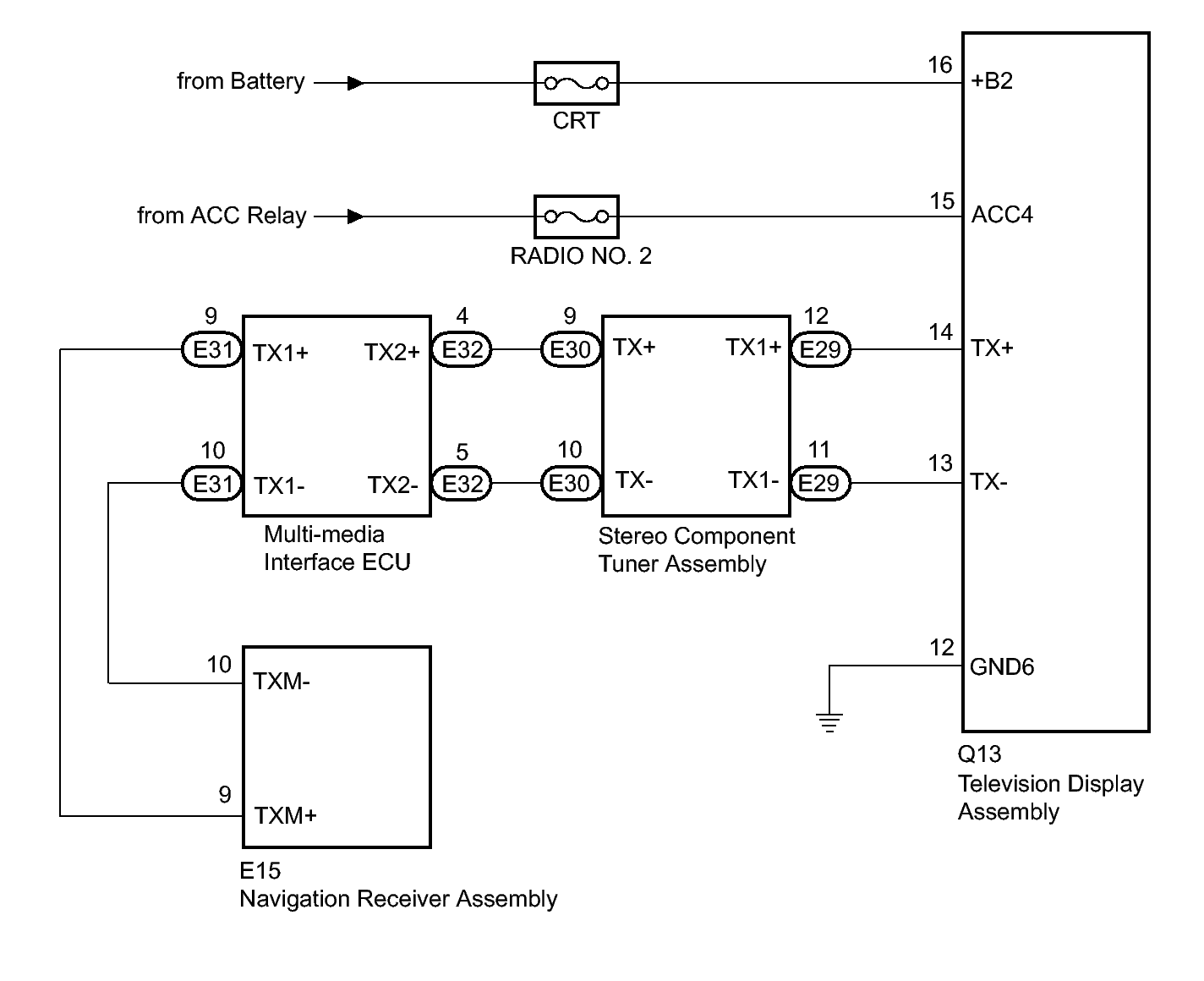

Fig 1: Identifying AVC-LAN Circuit Wiring Diagram
GTY297566Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
