DTC B1593: No Response from Stereo Component Amplifier; DTC B15D3: Stereo Component Amplifier Disconnected: Wiring Diagram

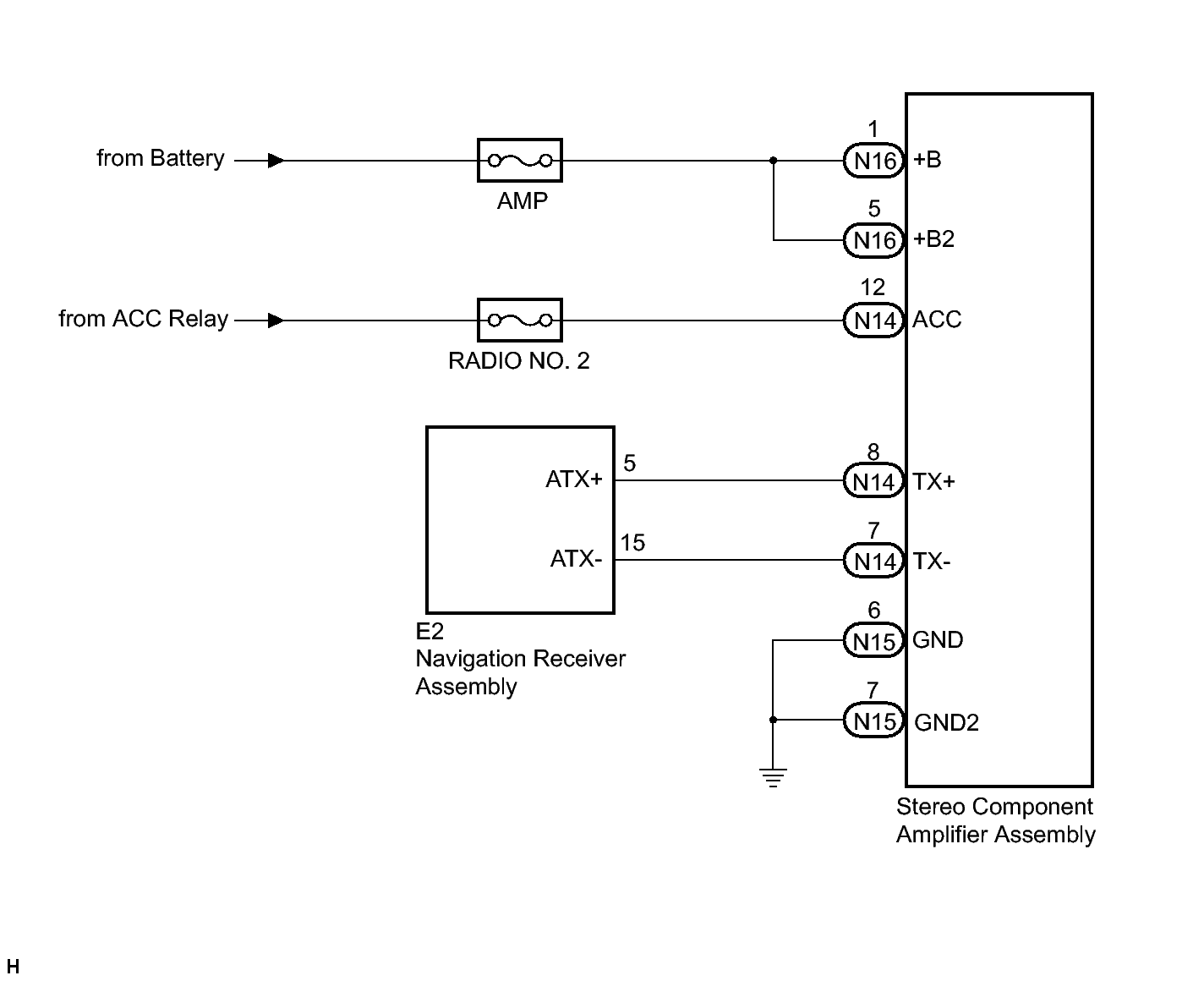

Fig 1: Identifying Stereo Component Amplifier Assembly Wiring Diagram
GTY295599Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
