AVC-LAN Circuit: Procedure

1. Disconnect the E2 and E15 navigation receiver assembly connectors.
   Fig 1: Disconnecting E2 & E15 Navigation Receiver Assembly Connectors

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   E2-5 (ATX+) - E2-15 (ATX-)	Always	60 to 80 Ω
   E15-9 (TXM+) - E15-10 (TXM-)	Always	60 to 80 Ω

   TEXT IN ILLUSTRATION



   *a	Component without harness connected (Navigation Receiver Assembly)

NG → See step   4

OK: Go to next step

HINT:

For details of the connectors, refer to Terminals of ECU, refer to TERMINALS OF ECU .

1. Referring to the AVC-LAN wiring diagram below, check all AVC-LAN circuits.
   1. Disconnect all connectors in all AVC-LAN circuits.
   2. Check for an open or short in all AVC-LAN circuits.

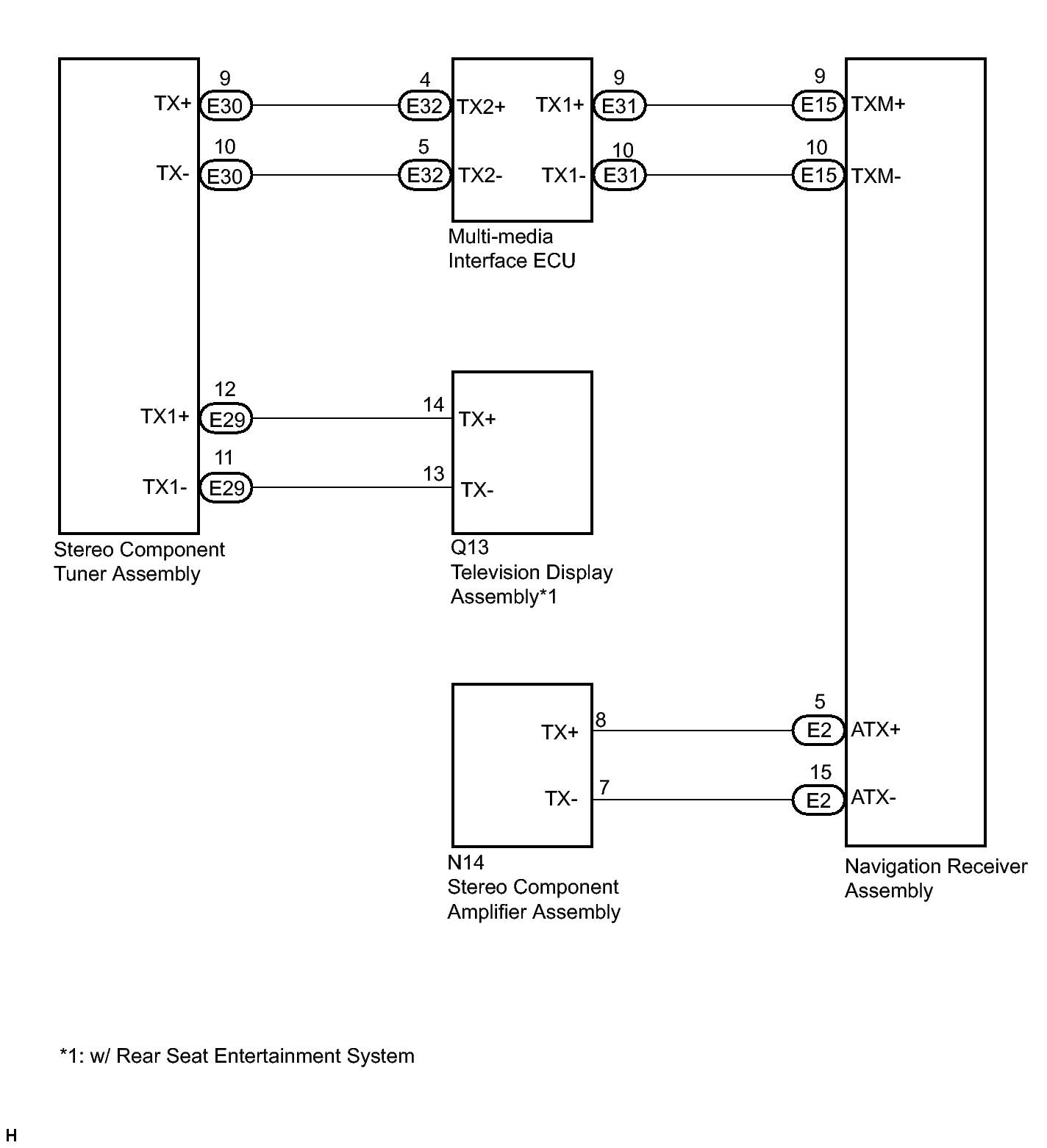

      Fig 2: Identifying AVC-LAN Circuits Wiring Diagram

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      OK

      There is no open or short circuit.

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to next step

1. Disconnect and reconnect each slave unit one by one until the master unit returns to normal operation.

   HINT:

   • Check all slave units.
   • If disconnecting a slave unit causes the master unit to return to normal operation, the slave unit is defective and should be replaced.

   OK

   Master unit returns to normal operation.

NG → See step   3

OK → REPLACE MALFUNCTIONING PARTS
