Speaker Circuit: Wiring Diagram

  1. w/ Back Door Speaker

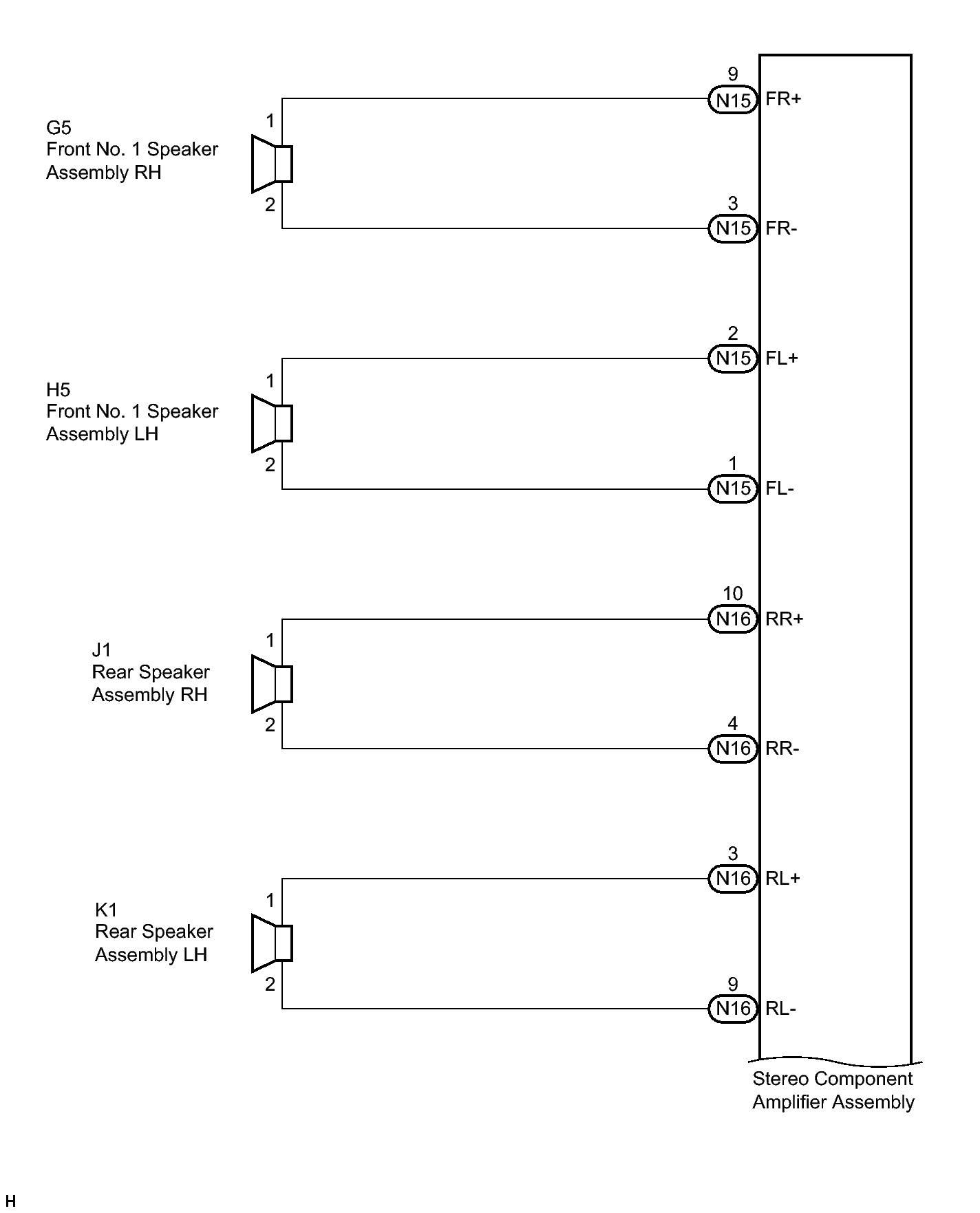

    Fig 1: Identifying Speaker Circuit-Wiring Diagram (1 of 4)
    GTY302821Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

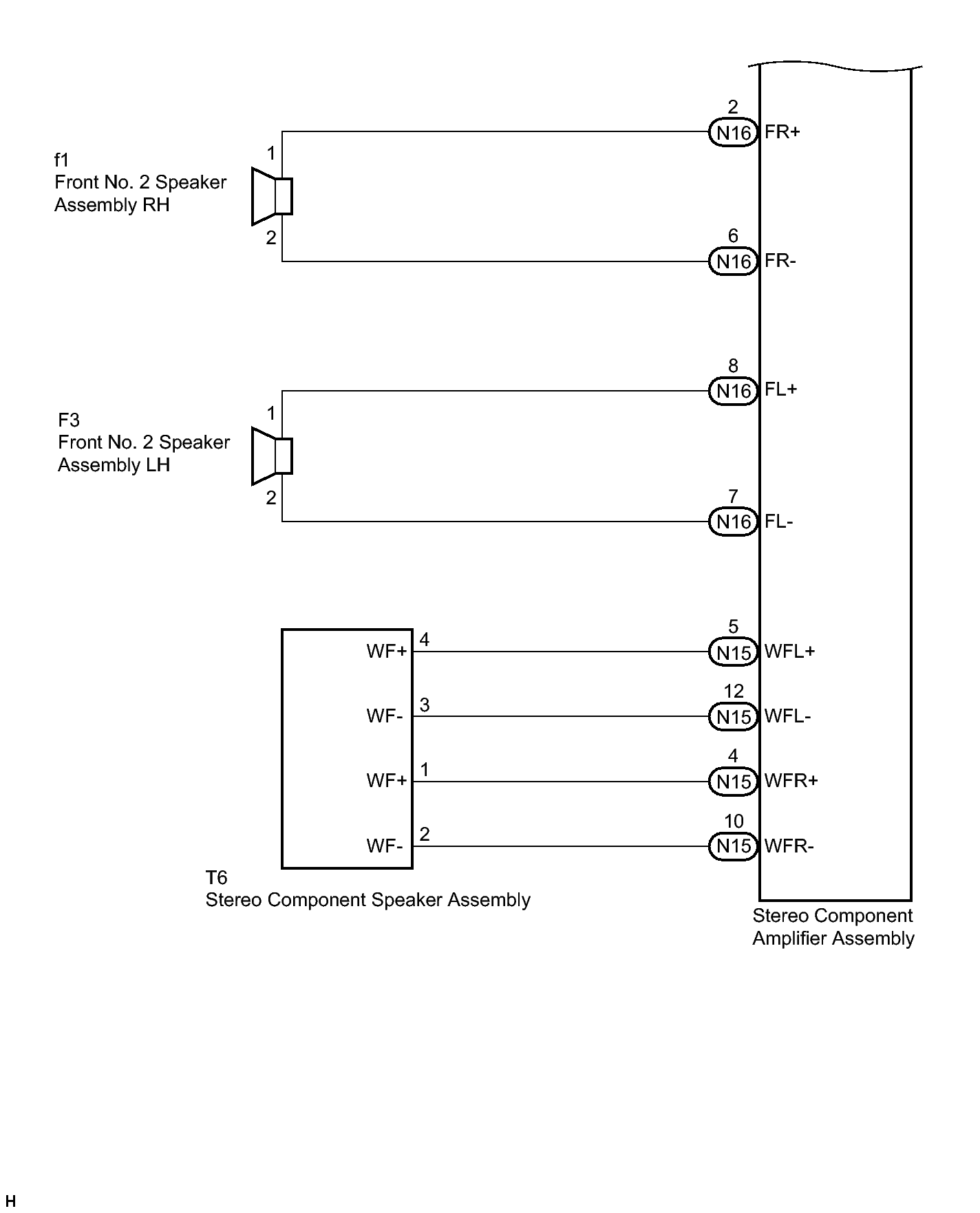

    Fig 2: Identifying Speaker Circuit-Wiring Diagram (2 of 4)
    GTY294897Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. w/o Back Door Speaker

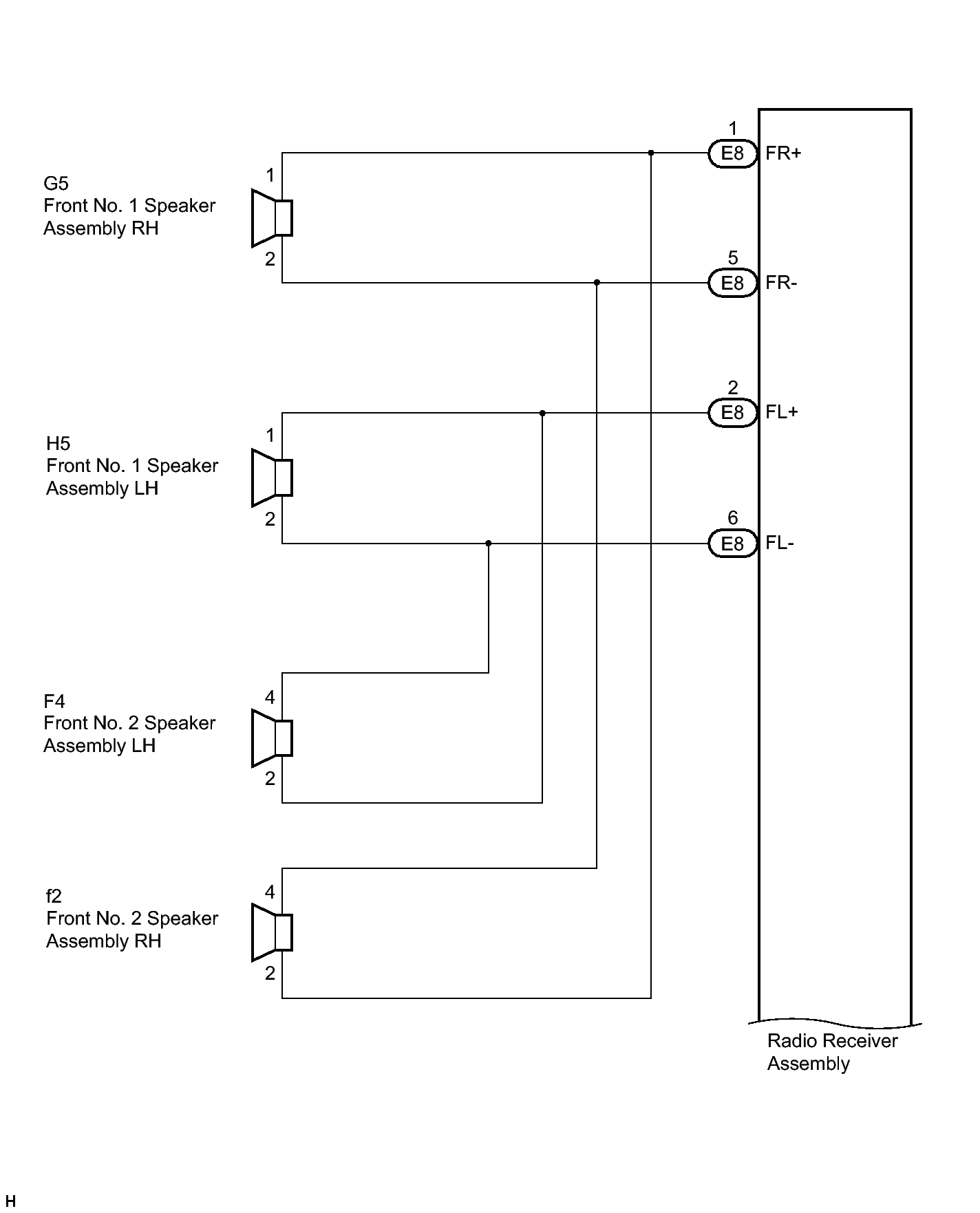

    Fig 3: Identifying Speaker Circuit-Wiring Diagram (3 of 4)
    GTY299108Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    Fig 4: Identifying Speaker Circuit-Wiring Diagram (4 of 4)
    GTY299977Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
