Spiral Cable: Inspection: Inspection
- INSPECT SPIRAL CABLE
- If there are any defects as mentioned below, replace the spiral cable with a new one:
- Scratches, cracks, dents or chips on the connector or the spiral cable.

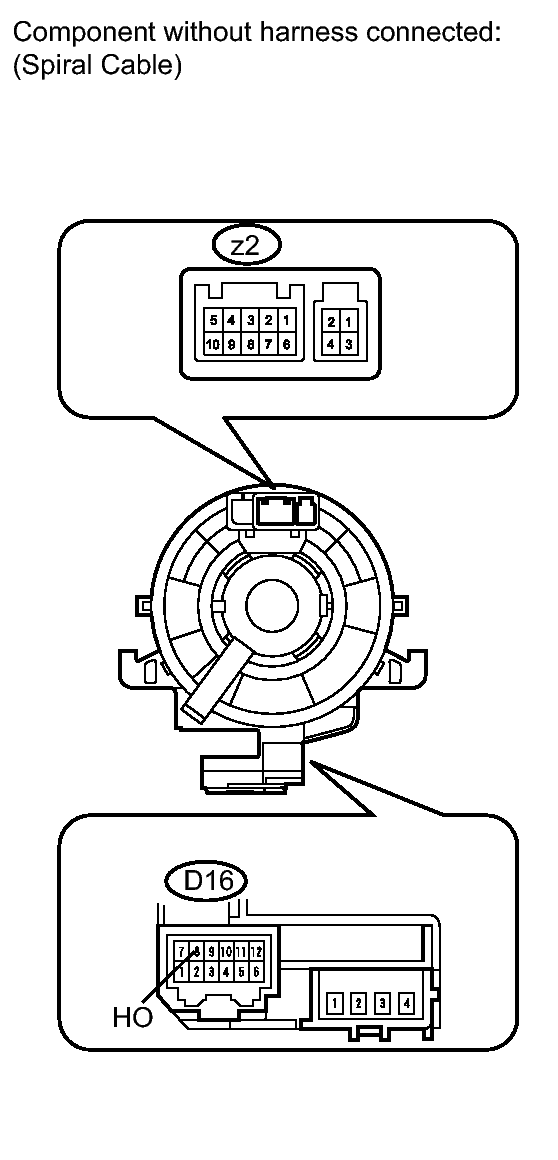

- Inspect the spiral cable.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
- Measure the resistance according to the value(s) in the table below.NOTE:
To avoid breaking of the spiral cable, do not turn the spiral cable more than necessary.
If the value is not within the specified range, replace the spiral cable.
STANDARD RESISTANCETester connection Condition Specified condition z2-1 - D16-8 (HO) Center Below 1 Ω 2.5 rotations to the left 2.5 rotations to the right If the result is not as specified, replace the spiral cable.
- Measure the resistance according to the value(s) in the table below.
- If there are any defects as mentioned below, replace the spiral cable with a new one:
