Parts Location: Illustration

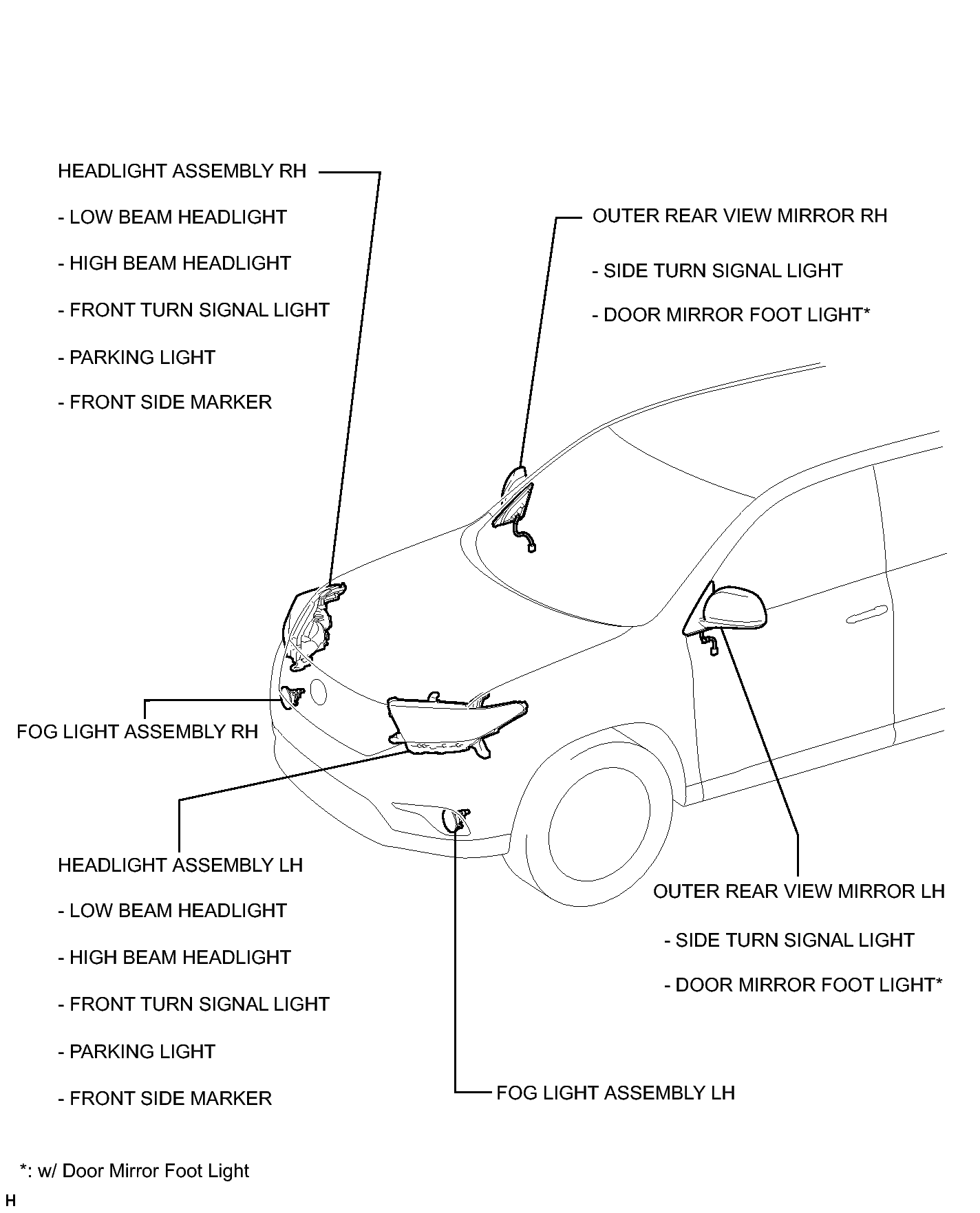

Fig 1: Identifying Lighting System Parts Location (1 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

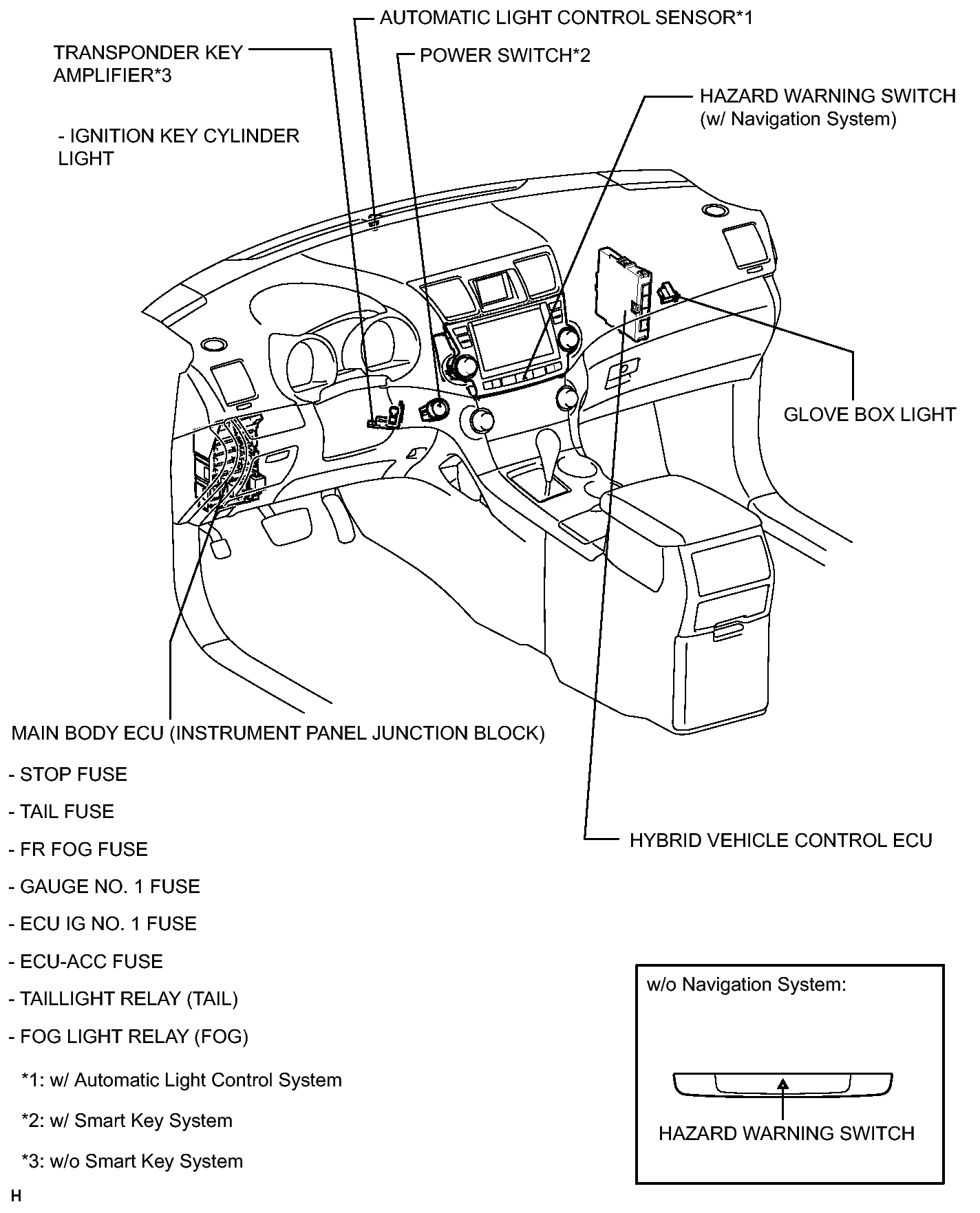

Fig 1: Identifying Lighting System Parts Location (2 of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

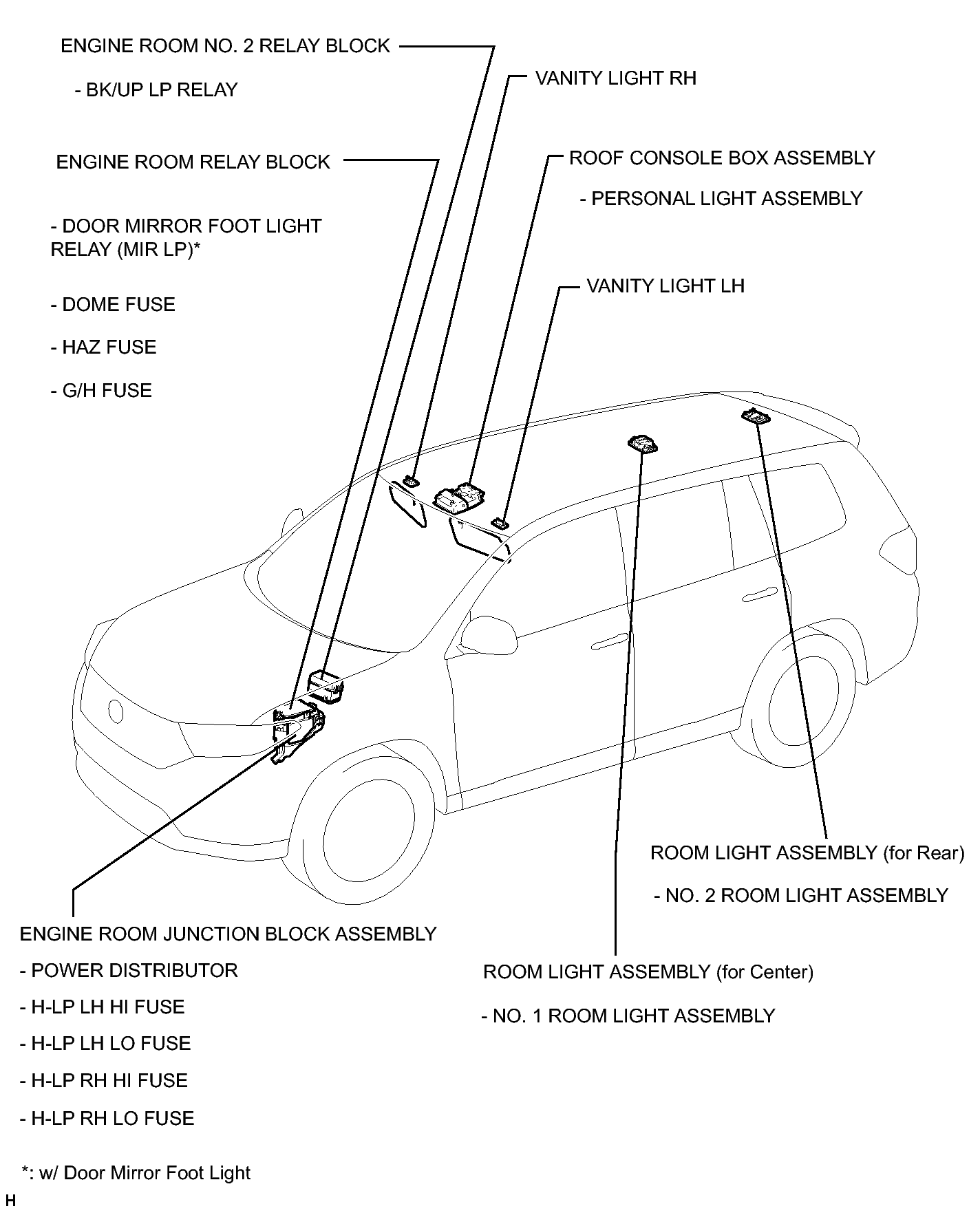

Fig 1: Identifying Lighting System Parts Location (3 of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

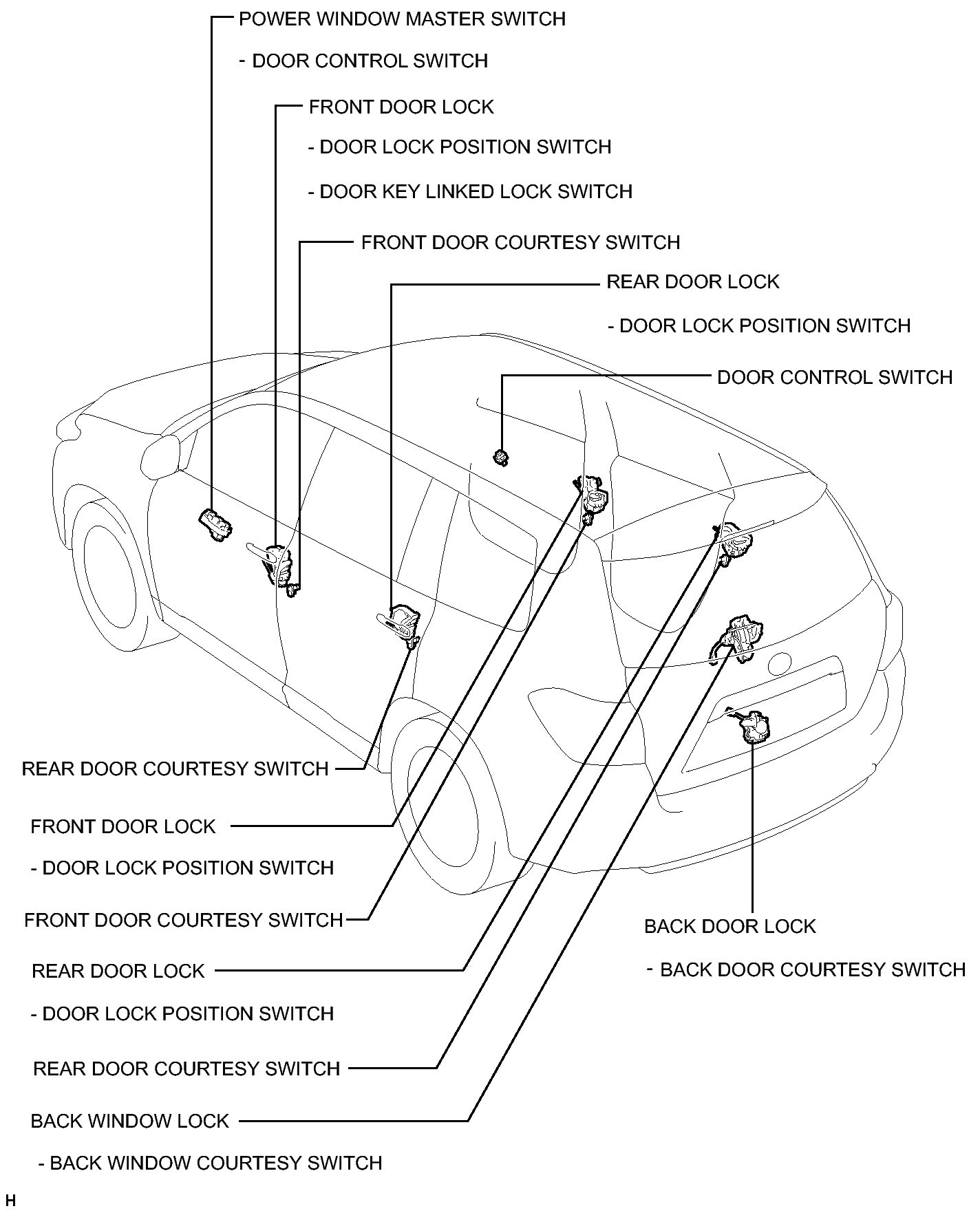

Fig 1: Identifying Lighting System Parts Location (4 of 6)

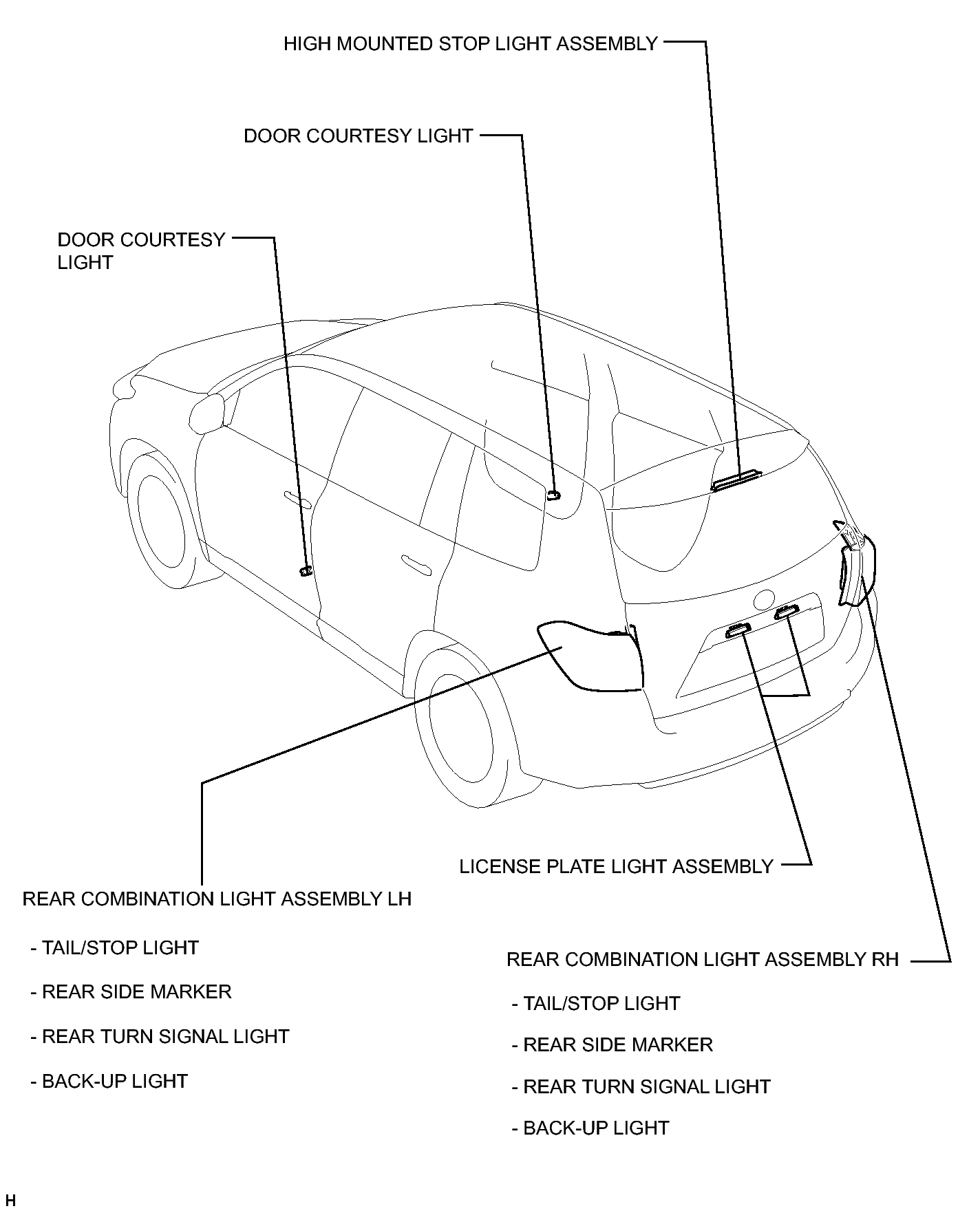

Fig 1: Identifying Lighting System Parts Location (5 of 6)

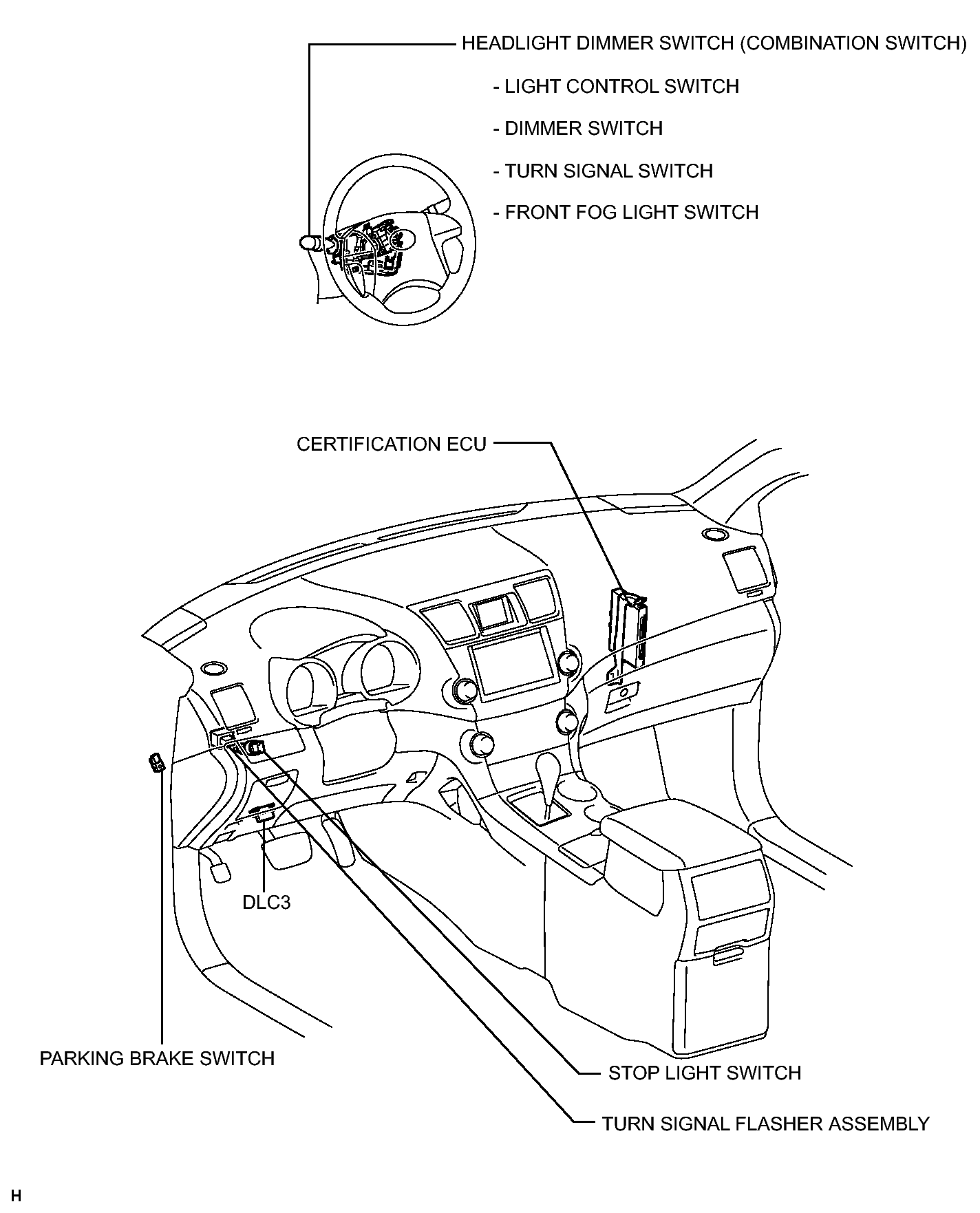

Fig 1: Identifying Lighting System Parts Location (6 of 6)
