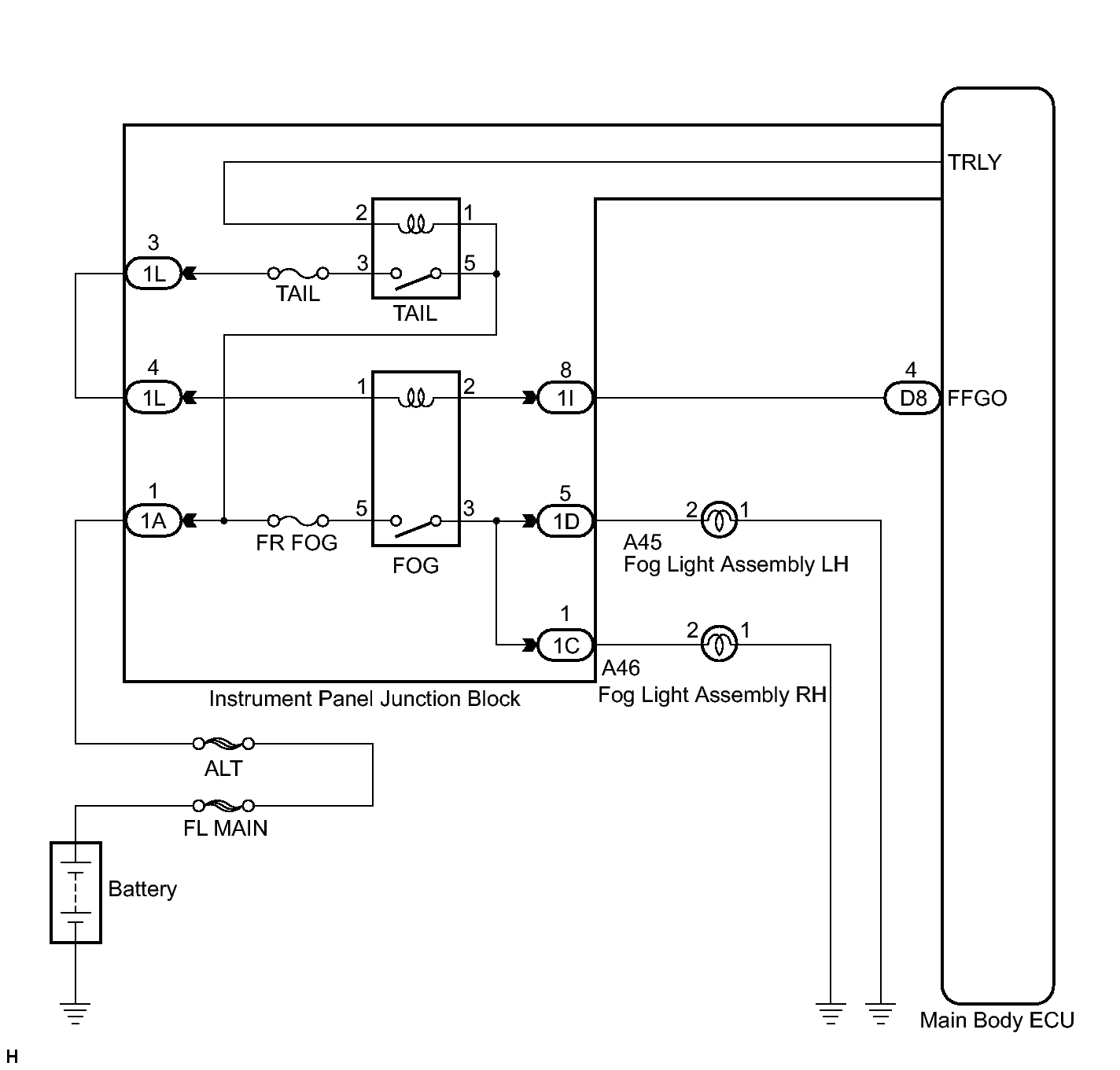

Home >> Toyota >> 2011 >> Highlander Hybrid Limited >> Repair and Diagnosis >> Accessories & Equipment >> Exterior Lights >> Lighting System (Diagnostic Codes & Circuit Tests) >> Lighting System >> Circuit Tests >> Front Fog Light Circuit >> Wiring Diagram
