Parts Location: Illustration

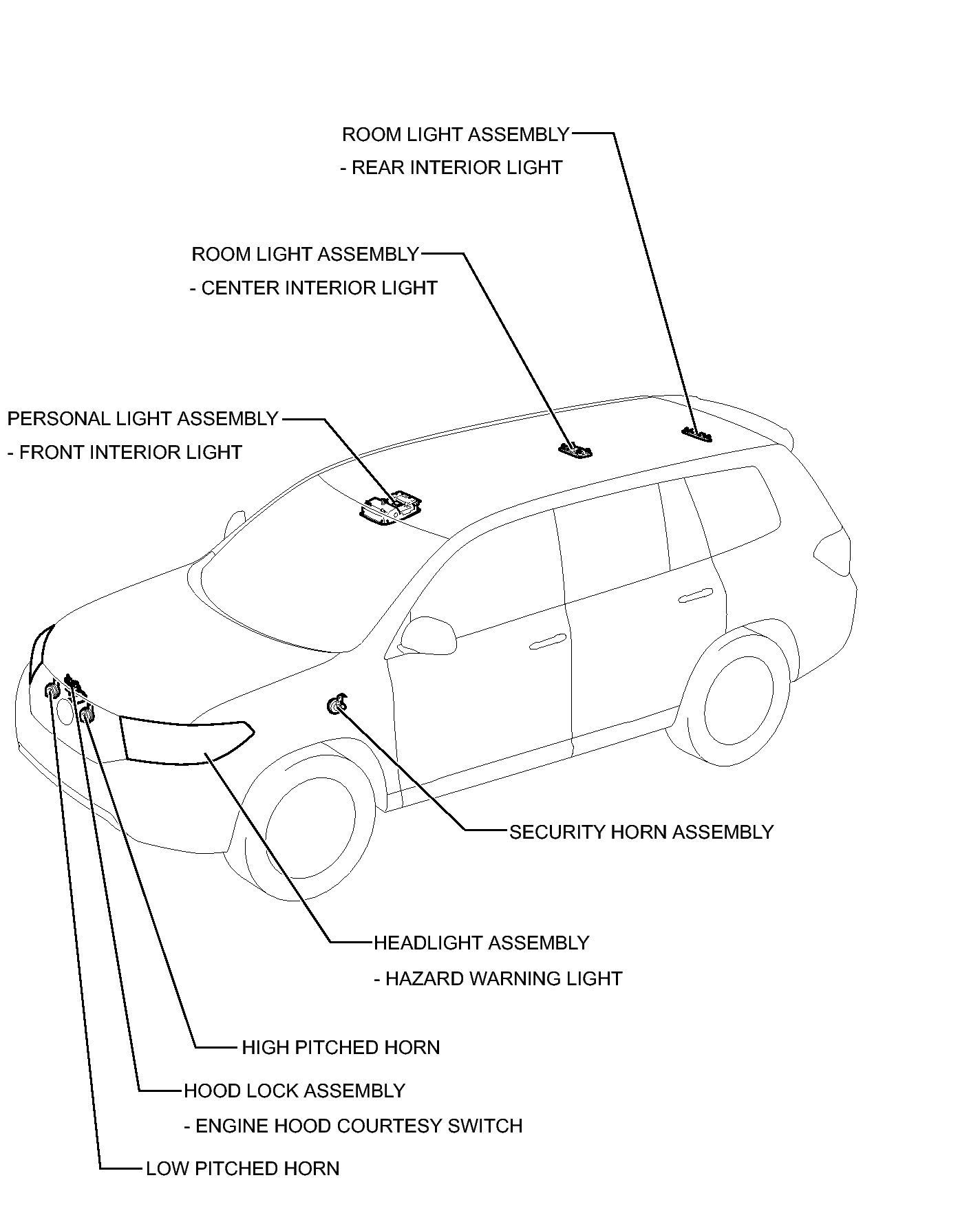

Fig 1: Identifying Theft Deterrent System Parts Location (1 of 3)
GTY296423Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

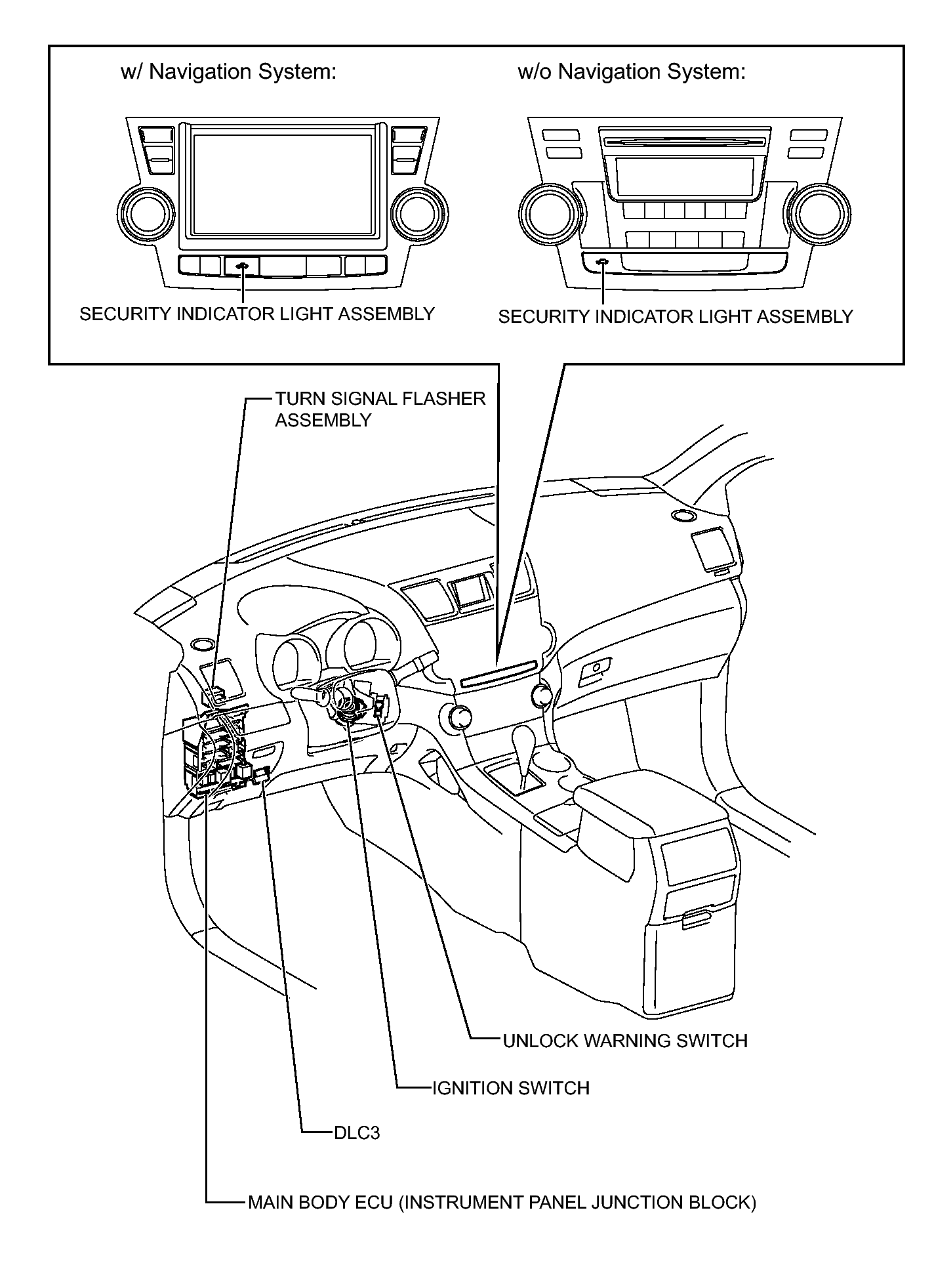

Fig 1: Identifying Theft Deterrent System Parts Location (2 of 3)
GTY299711Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

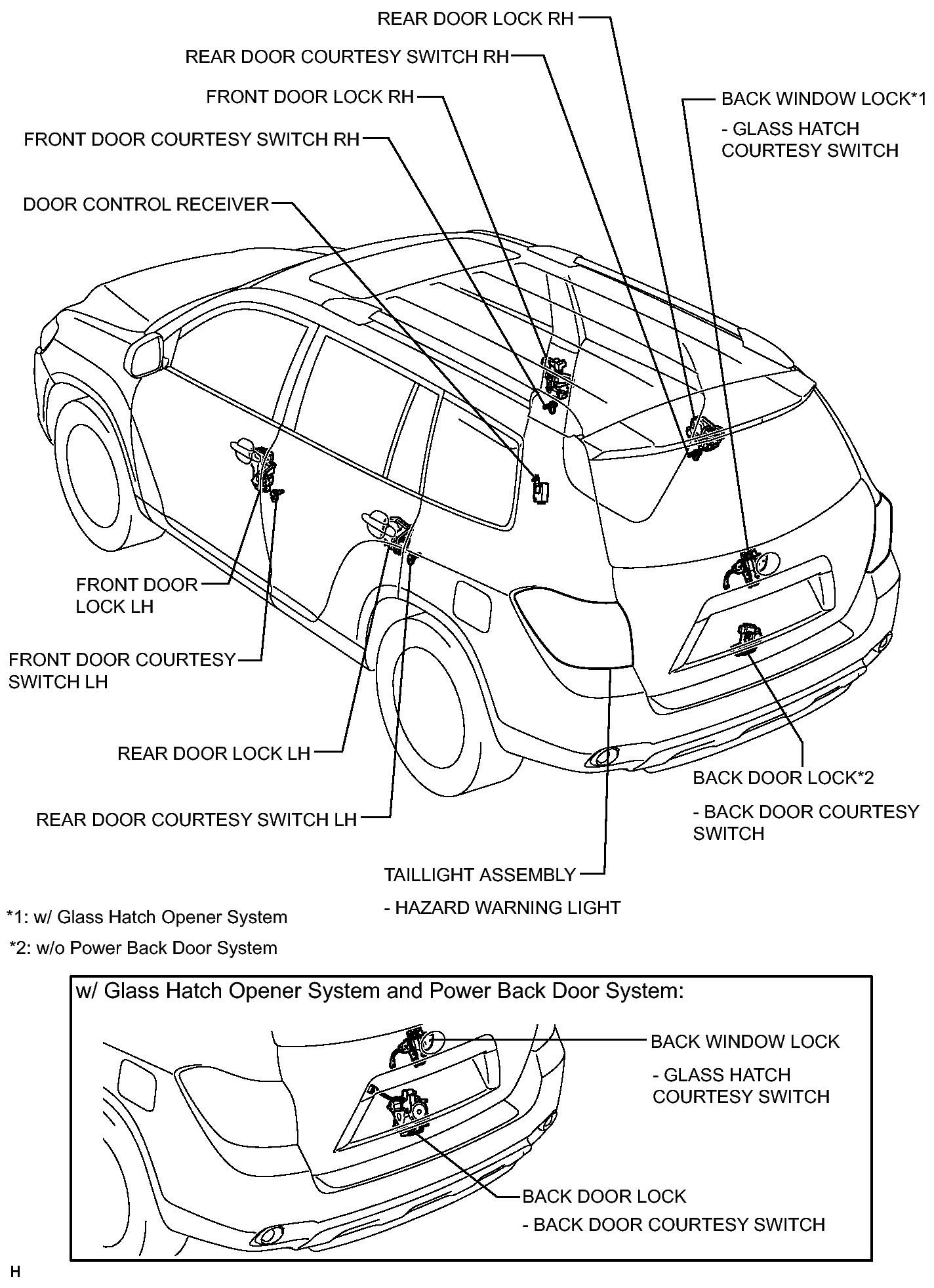

Fig 1: Identifying Theft Deterrent System Parts Location (3 of 3)
GTY302573Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
