DTC C2173/73: Vehicle Speed or Engine Speed Signal Malfunction: Wiring Diagram

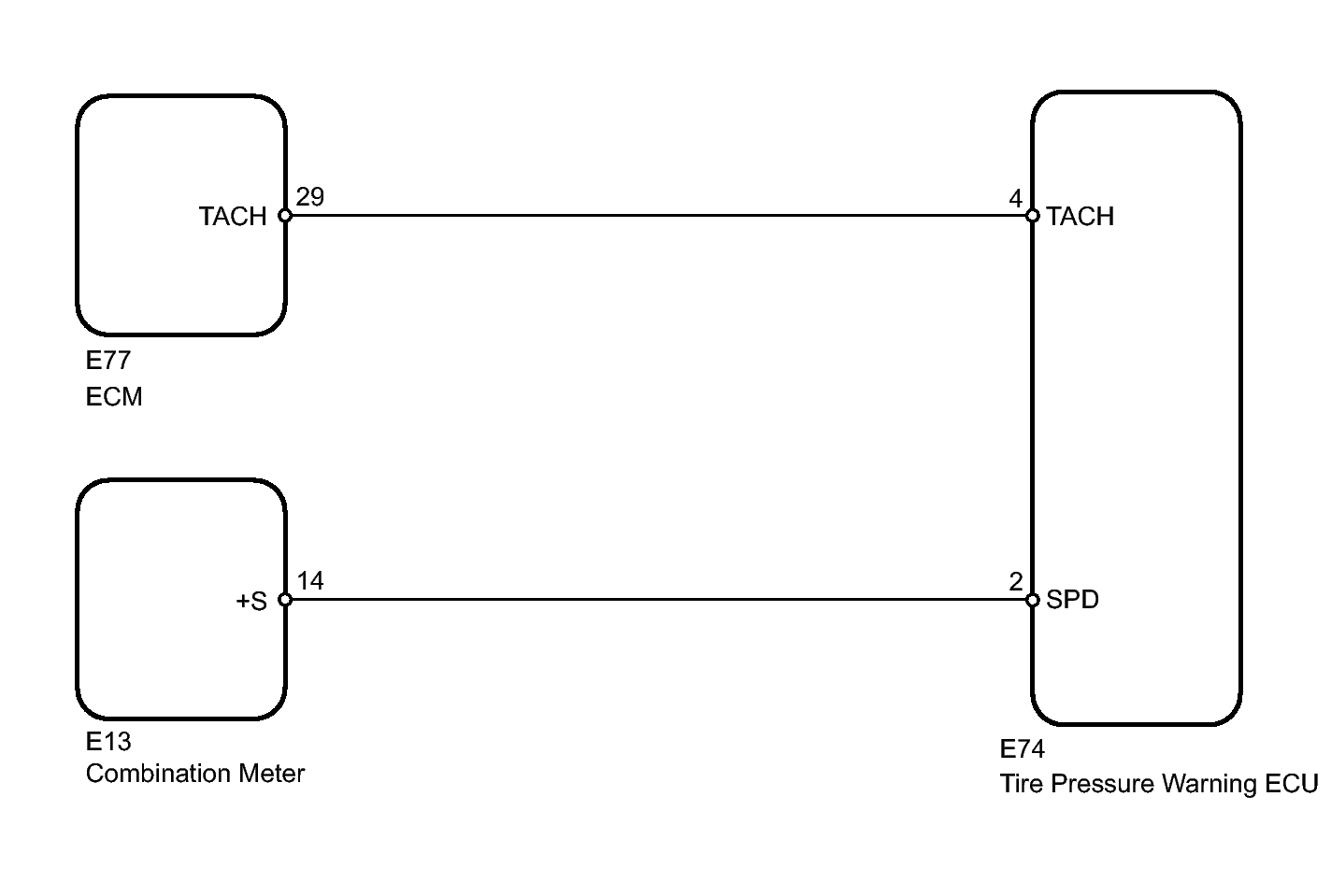

Fig 1: Vehicle Speed And Engine Speed Signal Wiring Diagram

GTY188155

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
