Overall Electrical Wiring Diagram: Starting

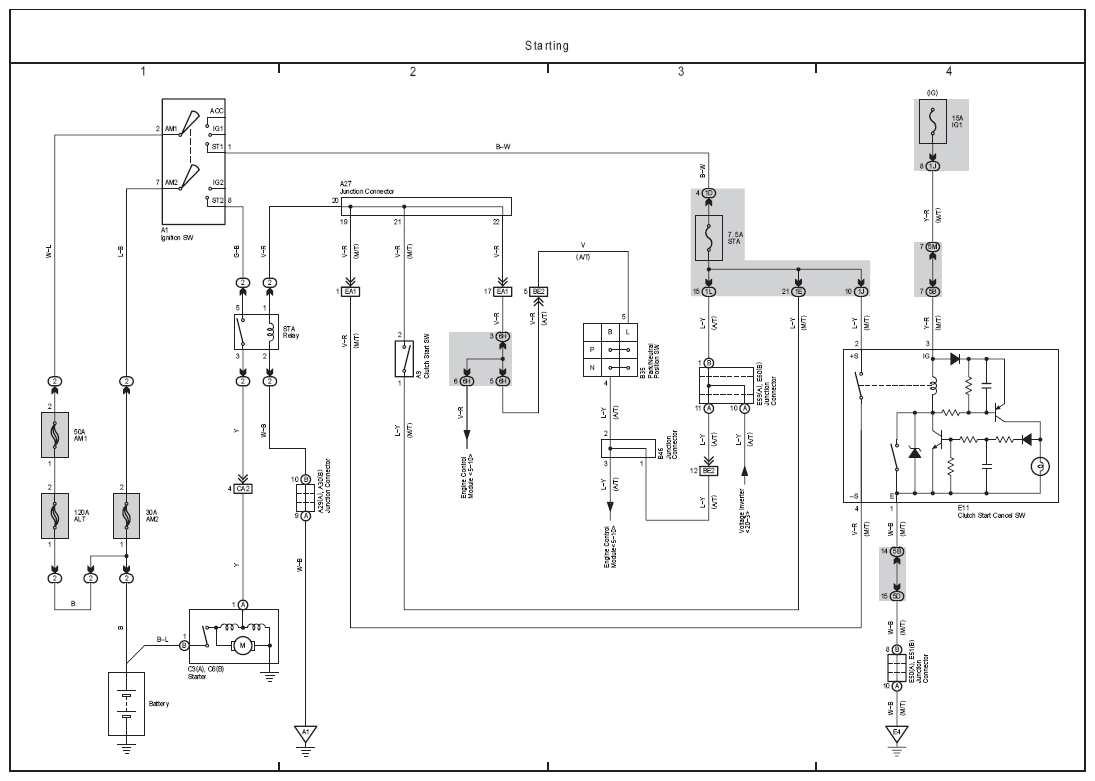

Fig 1: Starting Electrical Wiring Diagram

G07116574

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
