OEM Overall Electrical Wiring Diagram
>>
Overall Electrical Wiring Diagram
>>
Rear Differential Lock
Rear Differential Lock

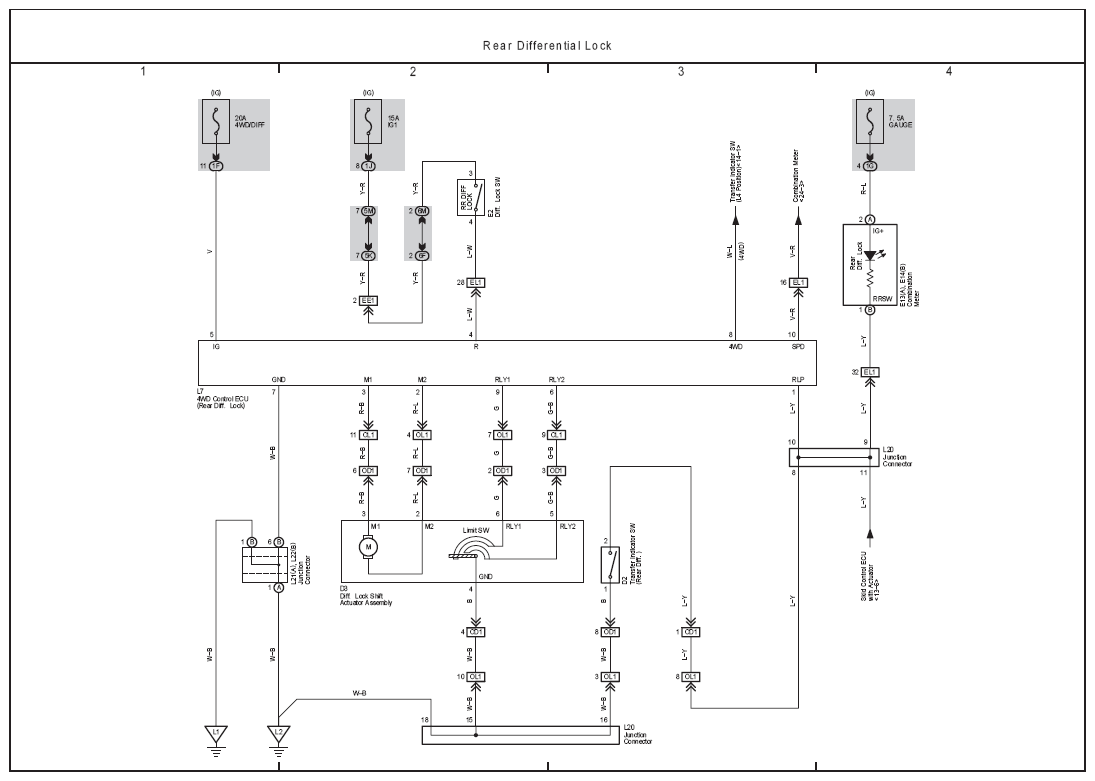

Fig 1: Rear Differential Lock Electrical Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
