Power Outlet (115V): Power Outlet (12V)

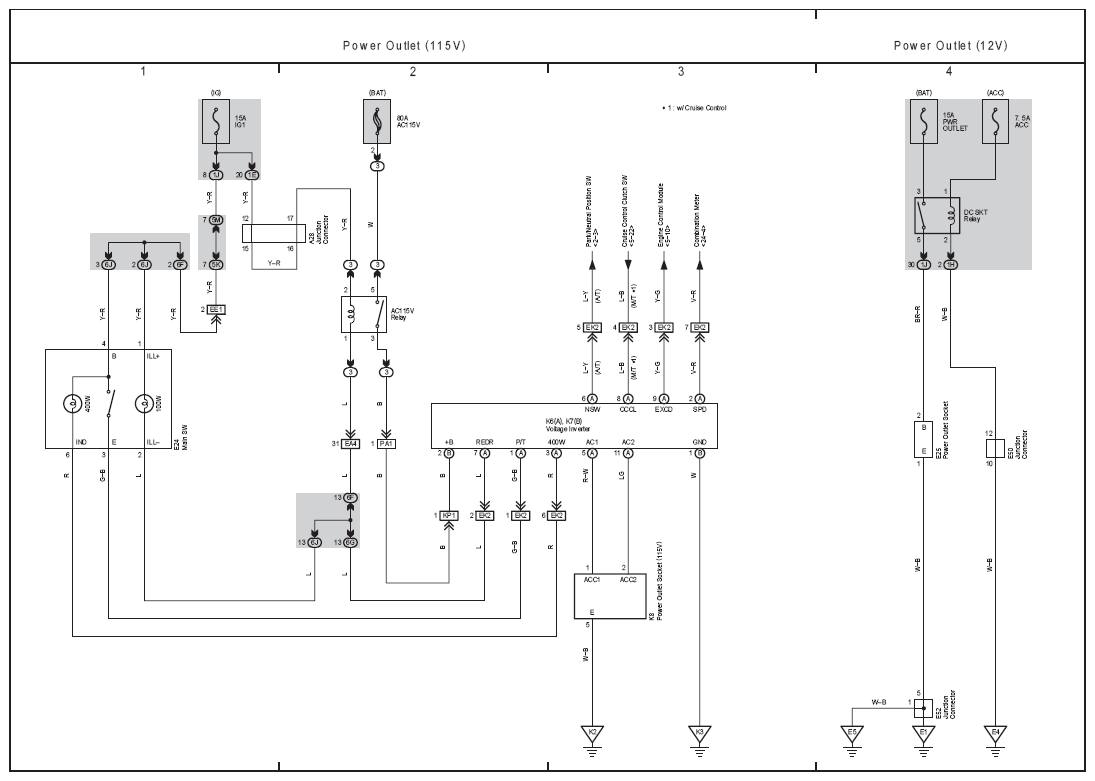

Fig 1: Power Outlet (115V) And Power Outlet (12V) Electrical Wiring Diagram

G07116609

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
