Overall Electrical Wiring Diagram
>>
Option Connector (Automatic Glare-Resistant EC Mirror): Option Connector (Trailer Towing)
Option Connector (Automatic Glare-Resistant EC Mirror): Option Connector (Trailer Towing)

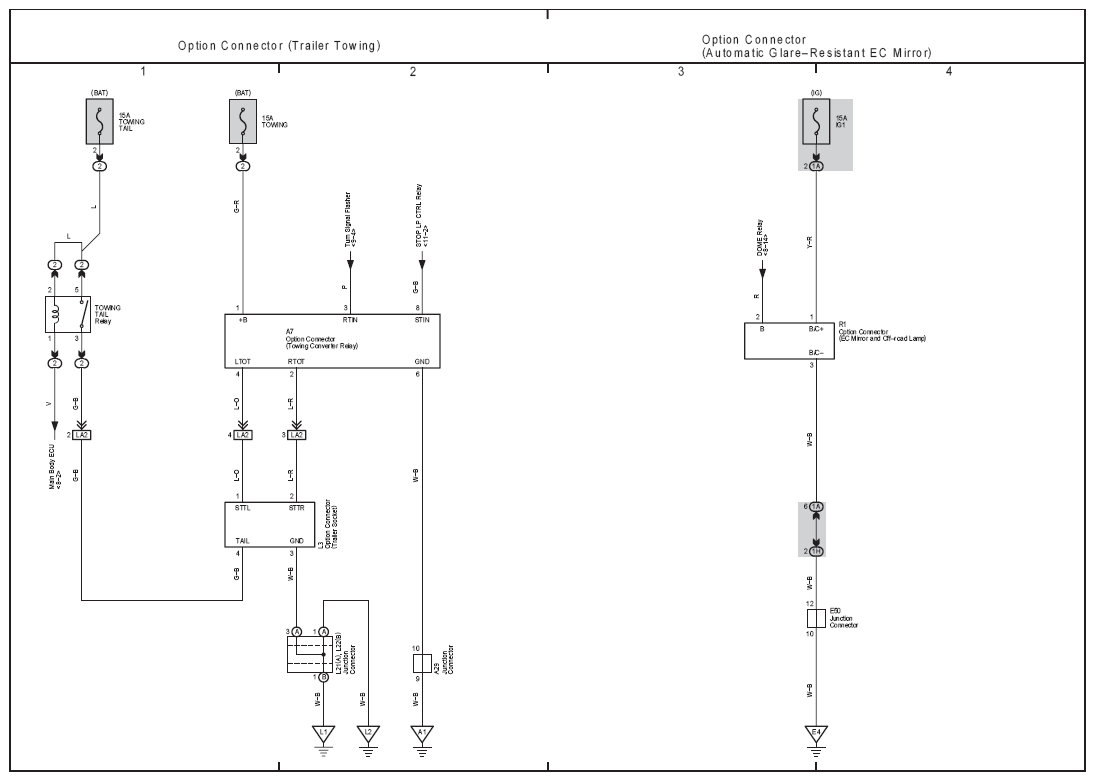

Fig 1: Option Connector (Trailer Towing) And Option Connector (Automatic Glare-resistant EC Mirror)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
